RVS-100 Vital Signs Monitor

RVS-100 is a versatile, intuitive touch screen vital signs monitor which measures pulse rate (PR), oxygen saturation (SpO2), non-invasive blood pressure (NIBP) and temperature (oral/axillary probe). The flexible, modular design offers many configurations and settings to suit the needs of hospitals and clinics as well as office based and long-term care settings.

The RVS-100 Vital Signs Monitor

The device has ‘Monitor‘, ‘Spot Check‘ and ‘Triage‘ profile options, as well as a ‘Demo’ mode.

Continuous Monitoring is designed for monitoring patients over time and includes physiological and technical alarms. Spot Check is designed for taking a single set of vital signs measurements on a patient. Patient information can be entered and managed, and while technical alarms are still available, physiological alarms are disabled. Triage is designed for rapidly taking vital signs measurements on many patients. Patient information is disabled, in addition to physiological alarms. ‘Demo’ mode demonstrates how each measurement mode works.¹

Advantages of the RVS-100

The aim of the EWS is to improve patient outcomes by identifying at risk patients who need urgent medical attention and intervening early to prevent clinical deterioration. This system involves the assignment of numeric values to several physiologic parameters (i.e. temperature, respiratory rate, Spo2). RVS-100 can be programmed with NEWS (National Early Warning Scores), MEWS (Modified Early Warning Scores) and also has 5 customisable profiles which can be set by the end-user if they have different parameter values.

RVS-100 with oral probe thermometer and blood pressure cuffs (1960-RRXXU)

Side of RVS-100 monitor displaying ports

RVS-100 barcode reader

RVS-100 basket

Improved efficiency

RVS-100 can communicate through a wired or wireless connection to the hospital's EMR/EHR, according to the HL7 standard, reducing the time spent and the likelihood of recording errors.

Designed for your patients' needs

RVS-100 is a versatile, modular system meaning that you can select the options to fulfil your patient monitoring needs.

Faster and more informed decisions

RVS-100 displays the four key parameters, that contribute to EWS, in a large font and brightly colour-coded parameters so they can be interpreted quickly, and informed decisions made.

Improved patient outcomes

EWS and the alarm system alerts a HCPs of early deterioration which can have a huge impact on patient safety and outcomes.

Improved patient care

Patients who are connected to a vital signs monitor may receive better care because HCPs can keep an eye on their vitals, even when HCPs change or the patient is moved.

Save time

Triage mode rapidly takes vital signs measurements reducing the need for multiple devices and reducing the time to take the measurements from the patient.

Features and Benefits

Hardware

Large 8“ full HD colour TFT-LCD screen displays large numbers and bright colour-coded parameters so that vital signs can be seen clearly and interpreted easily.
Screen is visible in both dark and lit rooms.
The touch screen and intuitive user interface makes it quick and easy for patient information to be entered and settings amended as required.
The modular design is chosen by the customer around their needs, starting with the choice between a table/mobile stand or wall mounted, through to the optional accessories like a printer.
Can be plugged into the mains or powered off the battery for 17 hours²
Riester is committed to providing reliable clinical measurements, including the choice of SpO2: Riester or Nellcor

Software

RVS-100 is programmed with EWS: NEWS, MEWS and 5 customisable profiles which can be set by the end-user if they have bespoke requirements.
Serve a large patient population with the ability to save up to 1000 patient records, with up to 5000 measurements per patient.
Can be used on all patient types: adult, paediatric and neonate.
RVS-100 can communicate through a wired or wireless connection to the hospital’s EMR/EHR, according to the HL7 standard.³
Software languages available: Chinese, Danish, English, French, German, Italian, Polish, Portuguese, Spanish (Europe) and Traditional Chinese.

Product details

RVS-100
Power supply	100 - 240 V AC, 50/60 Hz
Battery	Lithium-Ion battery, rechargeable, 10.8 V DC, 6600 mAh. Charging time to a 100%: 6 hours Operating time approx. 11 hours (new and fully charged battery at 25 °C ambient temperature with connected SpO2, Temp, and NIBP on AUTO mode (15 minutes interval) Low battery indicator, Charging battery indicator
Monitor dimensions	303 x 230 x 110 mm (11.93 x 9.05 x 4.33 in)
Monitor weight	3600 g (7.94 lb) inc. temperature module, printer
Basket dimensions	270 x 225 x 200 mm (10.63 x 8.86 x 7.87 in)
Alarm	Visible LEDs (Yellow, Red, Blue, Green, Orange) Audible Speaker Gives audible alarm, QRS tone Supports Pitch Tone and multi-level volume Alarm tones meet the requirement of IEC 60601-1-8. Alarm Pressure: 45 dB to 85 dB test distance is 1 meter from the tone
Ports	1 x AC power inlet 1 x standard RJ45 interfaces.100 BASE-TX, IEEE 802.3 4 x USB ports 1 x Equipotential grounding point 1 x RJ11 connector for nurse call DC out port 15 V/1.2 A

NIBP (non-invasive blood pressure)

Measuring method	Automatic oscillometric
Measurement range	Adult SYS 30 - 270 mmHg, DIA 10 - 220 mmHg, MAP 20 - 235 mmHg Paediatric SYS 30 - 235 mmHg, DIA 10 - 220 mmHg, MAP 20 - 225 mmHg Neonate SYS 30 - 135 mmHg, DIA 10 - 110 mmHg, MAP 20 - 125 mmHg
Cuff pressure range	0 - 280 mmHg
Resolution	1 mmHg
Pressure accuracy	Static ±3 mmHg Clinic ±5 mmHg, standard deviation ≤ 8 mmHg
Pulse rate range	40 - 240 bpm
Pulse rate accuracy	1 bpm
Initial inflation pressure	Adult 160 mmHg, Pediatric 130 mmHg, Neonate 75 mmHg Double overpressure protection (hardware and software) Adult 297 ±3 mmHg, Pediatric 252 ±3 mmHg, Neonate 147 ±3 mmHg
Alarm range	SYS 0 - 300 mmHg DIA 0 - 300 mmHg MAP 0 - 300 mmHg

SpO2-Riester
Measurement range	0 - 100%
Resolution	1%
Accuracy	±2% (70 to 100%) ±3% (40% to 69%) Unspecified (0% to 39%)
Alarm range	0 - 100%
Average time	4 sec, 8 sec, 16 sec
Pulse rate Measurement range	20 - 250 bpm
Pulse rate Resolution	1 bpm
Pulse rate Accuracy	±1% or ±1 bpm which ever is greater

SpO2 – Nellcor
Measurement range	0 - 100%
Resolution	1%
Accuracy	70 - 100%: ±2% (adult, paediatric) 70 - 100%: ±3% (neonate) 0 - 69%: unspecified
Alarm range	0 - 100%
Average time	8 sec, 16 sec
Pulse rate Measurement range	20 - 300 bpm
Pulse rate Resolution	1 bpm
Pulse rate Accuracy	20 - 250 bpm: ±3 bpm 251 - 300 bpm: unspecified

SpO2 – Masimo
Measurement range	0 - 100%
Resolution	1%
Accuracy	70 - 100%: ±2% (adult, paediatric, non-motion conditions) 70 - 100%: ±3% (neonate, non-motion conditions) 70 - 100%: ±3% (motion conditions) 0 - 69%: unspecified
Alarm range	0 - 100%
Average time	2 - 4 sec, 4 - 6 sec, 8 sec, 10 sec, 12 sec, 14 sec, 16 sec
Pulse rate Measurement range	25 - 240 bpm
Pulse rate Resolution	1 bpm
Pulse rate Accuracy	±3 bpm (non-motion conditions) ±5 bpm (motion conditions)

RPT-100 (Filac 3000) Predictive Thermometer

Oral (Quick Mode)	non-fever temps: 3 - 5 seconds, fever temps: 8 - 10 seconds
Oral (Standard Mode)	6 - 10 seconds
Axillary Mode	8 - 12 seconds
Rectal Mode	10 - 14 seconds
Direct Mode (all sites)	60 - 120 seconds
Measurement accuracy	35.5 °C - 42 °C Direct Mode (all sites): ±0.1 °C (±0.2 °F) Standard Mode (all sites): ±0.1 °C (±0.2 °F) Quick Mode (oral only): ± 0.3 °C (±0.5 °F)

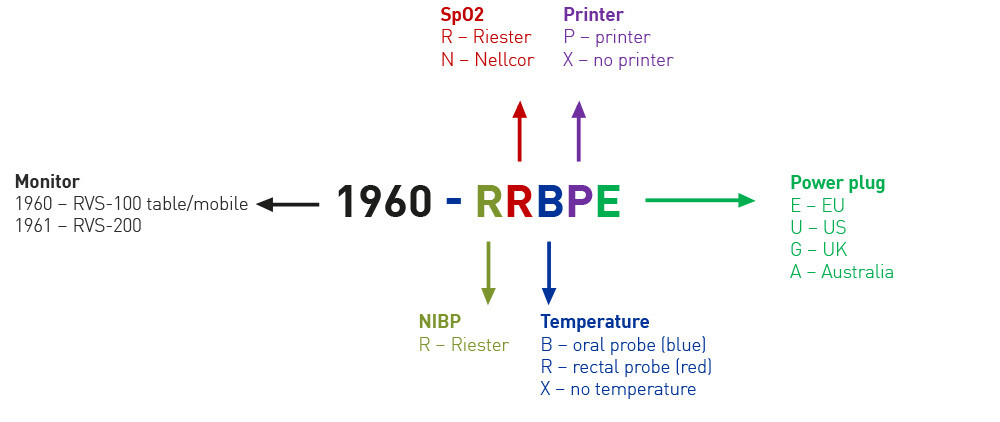

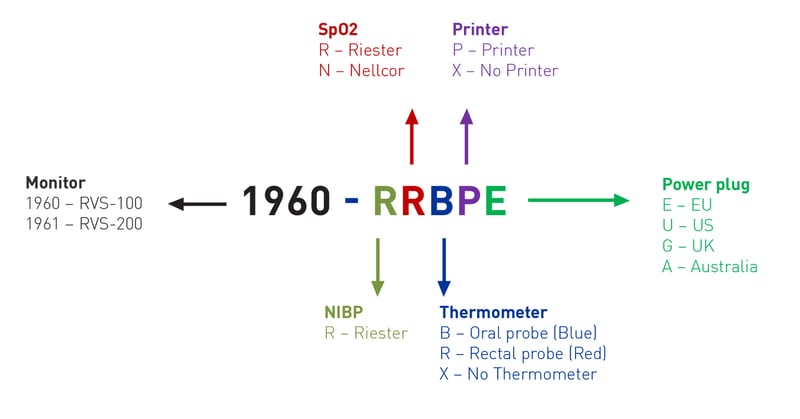

Ordering information

RVS-100 Vital Signs Monitor

ART. NO.	REGION	DESCRIPTION
1960-RRBPE	EU	RVS-100, NIBP (Riester), SpO2 (Riester), Pred. Temp (Blue), Printer, EU plug
1960-RRBXE	EU	RVS-100, NIBP (Riester), SpO2 (Riester), Pred. Temp (Blue), EU plug
1960-RRRPE	EU	RVS-100, NIBP (Riester), SpO2 (Riester), Pred. Temp (Red), Printer, EU plug
1960-RRRXE	EU	RVS-100, NIBP (Riester), SpO2 (Riester), Pred. Temp (Red), EU plug
1960-RRXPE	EU	RVS-100, NIBP (Riester), SpO2 (Riester), Printer, EU plug
1960-RRXXE	EU	RVS-100, NIBP (Riester), SpO2 (Riester), EU plug
1960-RNBPE	EU	RVS-100, NIBP (Riester), SpO2 (Nellcor), Pred. Temp (Blue), Printer, EU plug
1960-RNBXE	EU	RVS-100, NIBP (Riester), SpO2 (Nellcor), Pred. Temp (Blue), EU plug
1960-RNXXE	EU	RVS-100, NIBP (Riester), SpO2 (Nellcor), EU plug
1960-RRXXU	US	RVS-100, NIBP (Riester), SpO2 (Riester), US plug
1960-RRBXU	US	RVS-100, NIBP (Riester), SpO2 (Riester), Pred. Temp, US plug
1960-RRBPU	US	RVS-100, NIBP (Riester), SpO2 (Riester), Pred. Temp, Printer, US plug
1960-RNBXU	US	RVS-100, NIBP (Riester), SpO2 (Nellcor), Pred. Temp, US plug
1960-RNBPU	US	RVS-100, NIBP (Riester), SpO2 (Nellcor), Pred. Temp, Printer, US plug
1960-RRBPG	UK	RVS-100, NIBP (Riester), SpO2 (Riester), Pred. Temp (Blue), Printer, UK plug
1960-RRBXG	UK	RVS-100, NIBP (Riester), SpO2 (Riester), Pred. Temp (Blue), UK plug
1960-RRRXG	UK	RVS-100, NIBP (Riester), SpO2 (Riester), Pred. Temp (Red), UK plug
1960-RRXPG	UK	RVS-100, NIBP (Riester), SpO2 (Riester), Printer, UK plug
1960-RRXXG	UK	RVS-100, NIBP (Riester), SpO2 (Riester), UK plug
1960-RNBPG	UK	RVS-100, NIBP (Riester), SpO2 (Nellcor), Pred. Temp (Blue), Printer, UK plug
1960-RNBXG	UK	RVS-100, NIBP (Riester), SpO2 (Nellcor), Pred. Temp (Blue), UK plug
1960-RNXPG	UK	RVS-100, NIBP (Riester), SpO2 (Nellcor), Printer, UK plug
1960-RNXXG	UK	RVS-100, NIBP (Riester), SpO2 (Nellcor), UK plug
1960-RRBPA	AU	RVS-100, NIBP (Riester), SpO2 (Riester), Pred. Temp (Blue), Printer, Australia plug
1960-RRBXA	AU	RVS-100, NIBP (Riester), SpO2 (Riester), Pred. Temp (Blue), Australia plug
1960-RRXXA	AU	RVS-100, NIBP (Riester), SpO2 (Riester), Australia plug

These configurations are standard. Further configurations are available for country/regional specifications, please contact your Riester distributor for further information.

Accessories

ART. NO.	REGION	DESCRIPTION
1840-BT	All	Non-contact thermometer ri-thermo® sensioPRO+ Bluetooth
1835-BT	All	Tympanic thermometer ri-thermo® tymPRO+ Bluetooth
12640	All	Probe cover for ri-thermo® tymPRO 30 racks/300 pcs.
13315	All	Barcode reader
13316	All	Wi-Fi for RVS-100
13317	All	Mobile stand with basket
13324	All except US	Wall mount basket
13333	All except US	NIBP extension tube with connector
13321	All except US	Paper roll for printer RVS-100, pack of 20 pcs.
12668	All	Rectal Probe Filac 3000, length 2.7 m
12669	All	Oral / Axillary Probe Filac 3000, length 2.7 m
12688	All	Probe cover for predictive thermometer RPT-100, pack of 500 pcs. (25 x 20 pcs.)
13347	All	Bluetooth connectivity: Bluetooth USB-Dongle for RVS-100

Cuffs

ART. NO.	REGION	DESCRIPTION
107.005	All	Velcro cuff (adult) 54.5 x 14.5 cm, 1 tube, black
122.005	All	Velcro cuff (large adult) 70 x 15 cm, 1 tube, black
129.006	All	Velcro cuff (children) 35.5 x 10 cm, 1 tube, blue
134.002	All	Velcro cuff (newborn) 15.5 x 5 cm, 1 tube, blue

SpO2 Sensors

ART. NO.	REGION	DESCRIPTION
13300	All	SpO2 sensor Riester neonatal for RVS-100
13301	All	SpO2 sensor Riester children for RVS-100
13302	All	SpO2 sensor Riester adult for RVS-100
13305	All	SpO2 sensor Nellcor adults for RVS-100

RVS-200 Wall Diagnostic Station

Integrated Modular Wall Diagnostic Station with vital signs monitor and the option to add medical devices.

ri-scope® L Otoscope

Riester’s ri-scope® L line of otoscopes with the choice between LED or Xenon illumination.

ri-scope® L Ophthalmoscope

Our ri-scope® L line of ophthalmoscopes contains our premium ophthalmoscopes options.

EliteVue Macro Otoscope

Our top of the line premium otoscope option. With 5x magnification and a wheel to adjust focal depth.

Please note: Unit must be restarted to exit Demo mode.

11 hours in continuous monitoring mode.

HL7 (Health Level Seven) is a standard for exchanging health information between medical applications. This standard defines a format for the transmission of health-related information
