Vet de luxe I

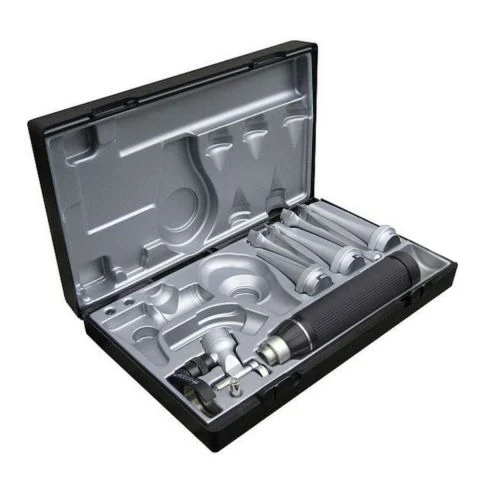

The Riester vet de luxe I comes with operation otoscope, ophthalmoscope, tongue blade holder and nasal speculum with accessories and spare lamps in impact-resistant case.

vet de luxe I – details

  1. ri-scope® Operation otoscope Veterinary head

  2. ri-scope® L1 Ophthalmoscope Head

  3. ri-scope® F.O. tongue blade holder Head

  4. ri-scope® F.O. nasal speculum Head

  5. Bayonet fitting on the heads for fast and secure attachment to the handle

  6. ri-scope® Operation otoscope Veterinary Metal Specula

    a) Unslotted, sterilisable at 134 °C for 10 minutes in steam sterilizer:

      ○ diameter 4 mm, 83 mm long

      ○ diameter 5 mm, 62 mm long

      ○ diameter 6 mm, 82 mm long

    b) Slotted, sterilisable at 134 °C for 10 minutes in steam sterilizer:

      ○ diameter 7.5 mm, 68 mm long

      ○ diameter 9.4 mm, 92 mm long

  7. 3 spare lamps (Xenon 3.5 V lamp or Halogen 2.5 V lamp)

    a) 1pc for the operation otoscope

    b) 1pc for the ophthalmoscope

    c) 1pc for the nasal or tongue

  8. Swivel lens

  9. Impact-resistant case

Image gallery

Otoscope Features and benefits

  • Customer’s choice of Xenon 3.5 V lamp or Halogen 2.5 V lamp
  • Swivel lens with 2.5x magnification
  • Moveable, slotted speculum holder can be locked in any position
  • Open design for unhindered use during examination and operation
  • All-metal operation otoscope for long service life
  • Reusable metal specula made of high-quality chrome-plated, corrosion-free metal

Ophthalmoscope Features and benefits

All Ophthalmoscopes Features:

  • Optimized high-performance optics with aspherical condenser lens
  • Parallel beam path
  • Dust-proof lenses
  • Large selection of power sources: handy and stable handles, practical chargers and well-conceived diagnostic stations

L1 Features

  • Dioptre wheel with 29 corrective lenses Plus 1-10, 12, 15, 20, 40 Minus 1-10, 15, 20, 25, 30, 35
  • Easy-to-operate aperture hand-wheel with semi-circle, Small/medium/large circle fixation star, slit and red-free filter with contrast-enhancing effect.
  • Includes filter wheel engageable for all apertures with symbol display, red-free filter.
apertures-l-1-1

Tongue blade holder Features and Benefits

  • Customer’s choice of Xenon 3.5 V lamp or Halogen 2.5 V lamp
  • High quality fibreoptic light wave conductor for an optimum light beam.
  • Slide attachment for fixing and detaching wooden tongue depressors for a firm hold
  • Sturdy, very light casing made of ABS plastic for a long service life



Nasal Speculum Features and Benefits

  • High quality fibreoptic light wave conductor for an optimum light beam
  • Swivel and removable lens with 2.5-fold magnification
  • Slow and controlled expansion of the speculum by turning on the screw adjuster, fast expansion by pressing down on the screw adjuster
  • Impact resistant casing made of glass-fibre reinforced plastic

Product Details



VET I de luxe


Dimensions Case : 230 x 140 x 46 mm
Ambient temperature 0 °C to 40 °C
Relative humidity 30% to 70% non-condensing
Storage/ Transport ambient temperature -10 °C to 55 °C
Storage/ Transport relative humidity 30% to 85% non-condensing
Air pressure/ Transport relative humidity 800 hPa - 1100 hPa



The lamp for ri-scope® Operation Otoscope Veterinary


ri-scope® Operation otoscope Veterinary HL 2.5 V 2.5 V, 680 mA, mean life span 20 h
ri-scope® Operation otoscope Veterinary XL 3.5 V 3.5 V, 700 mA, mean life span 20 h



The lamp for ri-scope® L Ophthalmoscope


Ophthalmoscope 2.5 V XL 2.5 V, 750 mA, mean life span 15 h
Ophthalmoscope 3.5 V XL 3.5 V, 690 mA, mean life span 15 h



The lamp for ri-scope® F.O. tongue blade holder


Tongue blade holder XL 2.5 V 2.5 V, 750 mA, mean life span 15 h
Tongue blade holder XL 3.5 V 3.5 V, 720 mA, mean life span 15 h



The lamp for ri-scope® F.O. nasal speculum


Nasal speculum XL 2.5 V 2.5 V, 750 mA, mean life span 15 h
Nasal speculum XL 3.5 V 3.5 V, 720 mA, mean life span 15 h

Ordering Information

vet de luxe I

ri-scope® Operation otoscope (Veterinary), ri-scope® L1 Ophthalmoscope, ri-scope® F.O. tongue blade holder, ri-scope® F.O. nasal speculum, Ear specula, 3 spare lamps (for VET Otoscope, Ophthalmoscope and one for tongue and/or nasal), Swivel lens

ART. NO. REGION DESCRIPTION
3866 All except US XL 2.5 V (for ophthalmoscope, tongue and nasal)/HL 2.5 V (Vet operations Otoscope), C-handle for 2 alkaline-batteries, C-type or ri-accu®
3869 All except US XL 2.5 V (for ophthalmoscope, tongue and nasal)/HL 2.5 V (Vet operations Otoscope), AA-handle for 2 alkaline-batteries, AA type or ri-accu®
3867 All except US XL 3.5 V, C-handle for ri-accu® L
3870 All except US XL 3.5 V, AA-handle for ri-accu® L



ri-scope® Operation Otoscope Veterinary head

ART. NO. REGION DESCRIPTION
10541 All except US ri-scope® Operation otoscope Veterinary head HL 2.5 V
10541-301 All except US ri-scope® Operation otoscope Veterinary head HL 2.5 V with anti-theft security
10542 All except US ri-scope® Operation otoscope Veterinary head XL 3.5 V
10542-301 All except US ri-scope® Operation otoscope Veterinary head XL 3.5 V with anti-theft security



vet I Otoscope

ri-scope® Operation otoscope (veterinary), Ear specula,1 spare lamp, Swivel lens

ART. NO. REGION DESCRIPTION
3850 All except US HL 2.5 V, C-handle for 2 alkaline-batteries, C-type or ri-accu®
3853 All except US HL 2.5 V, AA-handle for 2 alkaline-batteries, AA-type or ri-accu®
3851 All except US XL 3.5 V, C-handle for ri-accu® L
3854 All except US XL 3.5 V, AA-handle for ri-accu® L



vet I Oto-/Ophthalmoscope

ri-scope® Operation otoscope (veterinary), ri-scope® L1 Ophthalmoscope, Ear specula, 2 spare lamps, Swivel lens

ART. NO. REGION DESCRIPTION
3858 All except US HL 2.5 V/XL 2.5 V, C-handle for 2 alkaline-batteries, C-type or ri-accu®
3861 All except US HL 2.5 V, AA-handle for 2 alkaline-batteries, AA-type or ri-accu®
3859 All except US XL 3.5 V, C-handle for ri-accu® L
3862 All except US XL 3.5 V, AA-handle for ri-accu® L



Spare parts and accessories

Specula
ART. NO. REGION DESCRIPTION
10881 All except US Metal Specula Ø 4 mm, 83 mm long
10880 All except US Metal Specula Ø 5 mm, 62 mm long
10882 All except US Metal Specula Ø 6 mm, 82 mm long
10883 All except US Metal Specula Ø 7.5 mm, 68 mm long, slotted
10884 All except US Metal Specula Ø 9.4 mm, 92 mm long, slotted



Battery handles
ART. NO. REGION DESCRIPTION
10642 All AA type battery handle with rheotronic® for 2 batteries AA or ri-accu® L
10425 All C type battery handle, rheostat, chrome plated w/o bore, for 2 C cell batteries
10429 All except US C type battery handle, rheostat, chrome plated, for 2 C cell batteries or ri-accu®
10426 All Upper handle part with rheostat, chrome plated
10679 All Battery handle cover, chrome plated w/o bore
11682 All except US Battery handle cover, chrome plated with bore
10670 All C type battery handle, rheotronic®, chrome plated, for 2 C cell batteries or ri-accu®
10704 All except US USB Battery Handle Type C, 3.5 V with rechargeable Li-ion Battery and Charger, EU
10704.001 AU USB Battery Handle Type C, 3.5 V with rechargeable Li-ion Battery and Charger, AU
10704.002 UK USB Battery Handle Type C, 3.5 V with rechargeable Li-ion Battery and Charger, UK
10704.003 US USB Battery Handle Type C, 3.5 V with rechargeable Li-ion Battery and Charger, US



Charging base
ART. NO. REGION DESCRIPTION
10700 All except US ri-charger® 2.5 V/3.5 V/ 100-240 V, black with wall bracket, EU
10701 All ri-charger® 2.5 V/3.5 V/ 100-240 V, black with wall bracket, with US adapter
10705 All except US ri-charger® L 3.5 V / 100-240 V, white with wall bracket, EU
10706 All ri-charger® L 3.5 V / 100-240 V, white with wall bracket, with US adapter
10707 All except US Plug-in charger for rechargeable Li-Ion battery 3.5 V ri-accu® L [10694] for C type battery handle, EU plug w/o battery
10708 All Plug-in charger with rechargeable Li-Ion battery 3.5 V ri-accu® L [10694] for C type battery handle, EU plug
10710 All except US Wall support ri-charger®, with screws and plugs
10711 All except US Handle AA type reduction insert for ri-charger®
10712 All except US Ear specula compartment cover for ri-charger®
10713 All except US Ear specula compartment cover for ri-charger® L



Batteries
ART. NO. REGION DESCRIPTION
10690 All ri-accu® L rechargeable Li-Ion battery type AA 3.5 V for AA-type battery handle and ri-charger® L
10691 All ri-accu® L rechargeable Li-Ion battery type C 3.5 V for C-type battery handle and ri-charger® L
10694 All ri-accu® L rechargeable Li-Ion battery (plug in handle) type C 3.5 V for C type battery handle
10680 All ri-accu® rechargeable NIMH battery type AA 2.5 V for AA-type battery handles
10681 All ri-accu® rechargeable NIMH battery type C 2.5 V for C type battery handles
10682 All except US ri-accu® rechargeable NIMH battery type C 3.5 V for C type battery handles
10685 All except US Alkaline battery type AA 1.5 V, pack of 4 pcs.
10686 All except US Alkaline battery type C 1.5 V, pack of 2 pcs.
10692 All ri-accu® L rechargeable battery, 3.5 V
10699 All ri-accu® USB rechargeable battery, 3.5 V



Bulb
ART. NO. REGION DESCRIPTION
10605 All except US XL 2.5 V bulbs for ri-scope® L1/L2/L3 Ophthalmoscope and ri-derma, pack of 6 pcs.
10625 All except US LED 3.5 V bulb for ri-scope® L2/L3 Otoscope, ri-derma, light conductor, nasal speculum and tongue blade holder.
10608 All except US XL 3.5 V bulbs for ri-scope® L1/L2/L3 Ophthalmoscope and ri-derma, pack of 6 pcs.
10600 All except US XL 2.5 V bulbs for ri-scope® L2/L3 Otoscope, Light conductor, nasal speculum and tongue blade holder, pack of 6 pcs.
10602 All except US HL 2.5 V bulbs for ri-scope® Operation otoscope (human/ veterinary), pack of 6 pcs.
10609 All except US XL 3.5 V bulbs for ri-scope® Operation otoscope (human/ veterinary), pack of 6 pcs.



Accessories
ART. NO. REGION DESCRIPTION
11449 All Operation lens for ri-scope® L Otoscope
11564 All except US Swivel magnifying glass for ri-scope® F.O. nasal speculum
10965 All except US Separate magnifying glass for ri-scope® Ophthalmoscope
10960 All Bulb for pneumatic test
10961 All Connector for pneumatic test
10923 All except US Case for Veterinary
