Vet I Otoscope

Vet I Otoscope

Vet I Otoscope details

Vet I Otoscope – details

  1. ri-scope® Operation otoscope Veterinary head
  2. Bayonet fitting on the heads for fast and secure attachment to the handle
  3. ri-scope® Operation Otoscope Veterinary Metal Specula

  • a) Unslotted, sterilisable at 134°C for 10 minutes in steam sterilizer:

    • diameter 4 mm, 83 mm long
    • diameter 5 mm, 62 mm long
    • diameter 6 mm, 82 mm long

  • b) Slotted, sterilisable at 134°C for 10 minutes in steam sterilizer:

    • diameter 7.5 mm, 68 mm long
    • diameter 9.4 mm, 92 mm long
  1. 3 spare lamps (Xenon 3.5V lamp or Halogen 2.5V lamp)
  • a) 1pcs for the operation otoscope
  • b) 1pcs for the ophthalmoscope
  • c) 1pcs for the nasal or tongue
  1. Swivel lens
  2. Impact-resistant case

Image gallery

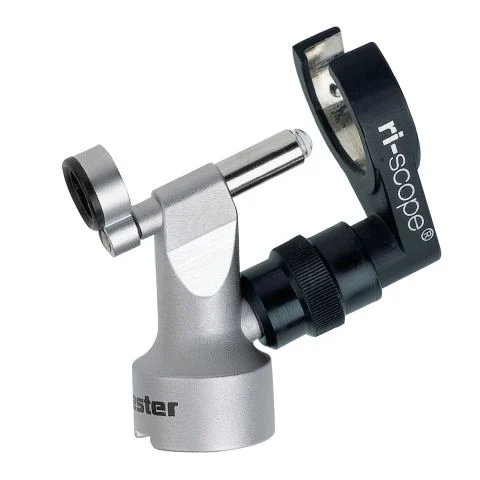

ri-scope® Operation Otoscope Veterinary head Zoom

ri-scope® Operation Otoscope Veterinary head

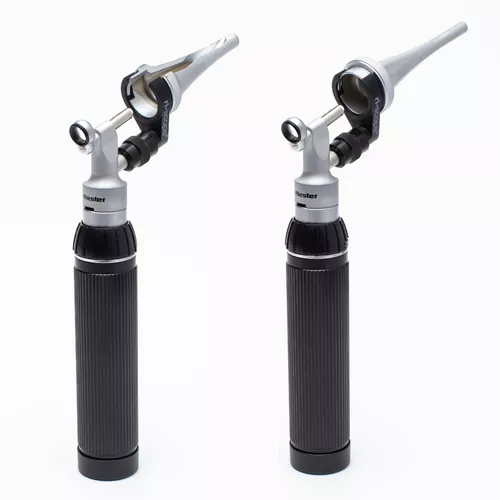

ri-scope® Operation Otoscope Veterinary Zoom

ri-scope® Operation Otoscope Veterinary

ri-scope® Operation Otoscope Veterinary Metal Specula Zoom

ri-scope® Operation Otoscope Veterinary Metal Specula

Swivel lens Zoom

Swivel lens

vet I Otoscope Zoom

vet I Otoscope

vet I Oto-/Ophthalmoscope Zoom

vet I Oto-/Ophthalmoscope

vet de luxe I Zoom

vet de luxe I

Otoscope Features and Benefits

  • Customer’s choice of Xenon 3.5V lamp or Halogen 2.5V lamp
  • Swivel lens with 2.5x magnification
  • Moveable, slotted speculum holder can be locked in any position
  • Open design for unhindered use during examination and operation
  • All-metal operation otoscope for long service life
  • Reusable metal specula made of high-quality chrome-plated, corrosion-free metal

Product details

VET I Otoscope
Dimensions Case : 230 x 140 x 46
Ambient temperature 0° to +40° C
Relative humidity 30% to 70% non-condensing
Storage/ Transport ambient temperature -10° to +55°C
Storage/ Transport relative humidity 30% to 85% non-condensing
Air pressure/ Transport relative humidity 800 hPa - 1100 hPa

The lamp for ri-scope® Operation Otoscope Veterinary
ri-scope® Operation otoscope Veterinary HL 2.5 V 2.5 V, 680 mA, mean life span 20 h
ri-scope® Operation otoscope Veterinary XL 3.5 V 3.5 V, 700 mA, mean life span 20 h

Ordering information

vet I Otoscope

ri-scope® Operation otoscope (veterinary), Ear specula,1 spare lamp, Swivel lens

Art. No. Region Description
3850 EU HL 2.5 V, C-handle for 2 alkaline-batteries, C-type or ri-accu®
3853 EU HL 2.5 V, AA-handle for 2 alkaline-batteries, AA-type or ri-accu®
3851 EU XL 3.5 V, C-handle for ri-accu® L
3854 EU XL 3.5 V, AA-handle for ri-accu® L

ri-scope® Operation Otoscope Veterinary head

Art. No. Region Description
10541 EU ri-scope® Operation otoscope Veterinary head HL 2.5 V
10541-301 EU ri-scope® Operation otoscope Veterinary head HL 2.5 V with anti-theft security
10542 EU ri-scope® Operation otoscope Veterinary head XL 3.5 V
10542-301 EU ri-scope® Operation otoscope Veterinary head XL 3.5 V with anti-theft security

vet I Oto-/Ophthalmoscope

ri-scope® Operation otoscope (veterinary), ri-scope® L1 Ophthalmoscope, Ear specula, 2 spare lamps, Swivel lens

Art. No. Region Description
3858 EU HL 2.5 V/XL 2.5 V, C-handle for 2 alkaline-batteries, C-type or ri-accu®
3861 EU HL 2.5 V, AA-handle for 2 alkaline-batteries, AA-type or ri-accu®
3859 EU XL 3.5 V, C-handle for ri-accu® L
3862 EU XL 3.5 V, AA-handle for ri-accu® L

vet de luxe I

ri-scope® Operation otoscope (Veterinary), ri-scope® L1 Ophthalmoscope, ri-scope® F.O. tongue blade holder, ri-scope® F.O. nasal speculum, Ear specula, 3 spare lamps (for VET Otoscope, Ophthalmoscope and one for tongue and/or nasal), Swivel lens

Art. No. Region Description
3866 EU XL 2.5 V (for ophthalmoscope, tongue and nasal)/HL 2.5 V (Vet operations Otoscope), C-handle for 2 alkaline-batteries, C-type or ri-accu®
3869 EU XL 2.5 V (for ophthalmoscope, tongue and nasal)/HL 2.5 V (Vet operations Otoscope), AA-handle for 2 alkaline-batteries, AA type or ri-accu®
3867 EU XL 3.5 V, C-handle for ri-accu® L
3870 EU XL 3.5 V, AA-handle for ri-accu® L

Spare parts and accessories

Specula

Art. No. Region Description
10881 EU Metal Specula Ø 4 mm, 83 mm long
10880 EU Metal Specula Ø 5 mm, 62 mm long
10882 EU Metal Specula Ø 6 mm, 82 mm long
10883 EU Metal Specula Ø 7.5 mm, 68 mm long, slotted
10884 EU Metal Specula Ø 9.4 mm, 92 mm long, slotted

Battery handles

Art. No. Region Description
10642 All AA type battery handle with rheotronic® for 2 batteries AA or ri-accu® L
10425 All C type battery handle, rheostat, chrome plated w/o bore, for 2 C cell batteries
10429 EU C type battery handle, rheostat, chrome plated, for 2 C cell batteries or ri-accu®
10426 All Upper handle part with rheostat, chrome plated
10679 All Battery handle cover, chrome plated w/o bore
11682 EU Battery handle cover, chrome plated with bore
10670 All C type battery handle, rheotronic®, chrome plated, for 2 C cell batteries or ri-accu®
10704 EU USB Battery Handle Type C, 3.5 V with rechargeable Li-ion Battery and Charger, EU
10704.001 AU USB Battery Handle Type C, 3.5 V with rechargeable Li-ion Battery and Charger, AU
10704.002 UK USB Battery Handle Type C, 3.5 V with rechargeable Li-ion Battery and Charger, UK
10704.003 US USB Battery Handle Type C, 3.5 V with rechargeable Li-ion Battery and Charger, US

Charging base

Art. No. Region Description
10700 EU ri-charger® 2.5 V / 3.5 V / 230V, wall support
10701 All ri-charger® 2.5 V / 3.5 V / 120V, wall support
10705 EU ri-charger® L 2.5 V / 3.5 V / 230V, wall support
10706 All ri-charger® L 2.5 V / 3.5 V / 120V, wall support
10707 EU Plug-in charger for rechargeable Li-Ion battery 3.5V ri-accu® L [10694] for C type battery handle, EU plug w/o battery
10708 All Plug-in charger with rechargeable Li-Ion battery 3.5V ri-accu® L [10694] for C type battery handle, EU plug
10710 EU Wall support ri-charger®, with screws and plugs
10711 EU Handle AA type reduction insert for ri-charger®
10712 EU Ear specula compartment cover for ri-charger®
10713 EU Ear specula compartment cover for ri-charger® L

Batteries

Art. No. Region Description
10690 All ri-accu® L rechargeable Li-Ion battery type AA 3.5 V for AA-type battery handle and ri-charger® L
10691 All ri-accu® L rechargeable Li-Ion battery type C 3.5 V for C-type battery handle and ri-charger® L
10694 All ri-accu® L rechargeable Li-Ion battery (plug in handle) type C 3.5 V for C type battery handle
10680 All ri-accu® rechargeable NIMH battery type AA 2.5 V for AA-type battery handles
10681 All ri-accu® rechargeable NIMH battery type C 2.5 V for C type battery handles
10682 EU ri-accu® rechargeable NIMH battery type C 3.5 V for C type battery handles
10685 EU Alkaline battery type AA 1.5 V, pack of 4 pcs.
10686 EU Alkaline battery type C 1.5 V, pack of 2 pcs.
10692 All ri-accu® L rechargeable battery, 3.5 V
10699 All ri-accu® USB rechargeable battery, 3.5 V

Bulb

Art. No. Region Description
10605 EU XL 2.5 V bulbs for ri-scope® L1/L2/L3 Ophthalmoscope and ri-derma, pack of 6 pcs.
10625 EU LED 3.5 V bulb for ri-scope® L2/L3 Otoscope, ri-derma, light conductor, nasal speculum and tongue blade holder.
10608 EU XL 3.5 V bulbs for ri-scope® L1/L2/L3 Ophthalmoscope and ri-derma, pack of 6 pcs.
10600 EU XL 2.5 V bulbs for ri-scope® L2/L3 Otoscope, Light conductor, nasal speculum and tongue blade holder, pack of 6 pcs.
10602 EU HL 2.5 V bulbs for ri-scope® Operation otoscope (human/ veterinary), pack of 6 pcs.
10609 EU XL 3.5 V bulbs for ri-scope® Operation otoscope (human/ veterinary), pack of 6 pcs.

Accessories

Art. No. Region Description
11449 All Operation lens for ri-scope® L Otoscope
11564 EU Swivel magnifying glass for ri-scope® F.O. nasal speculum
10965 EU Separate magnifying glass for ri-scope® Ophthalmoscope
10960 All Bulb for pneumatic test
10961 All Connector for pneumatic test
10923 EU Case for Veterinary
