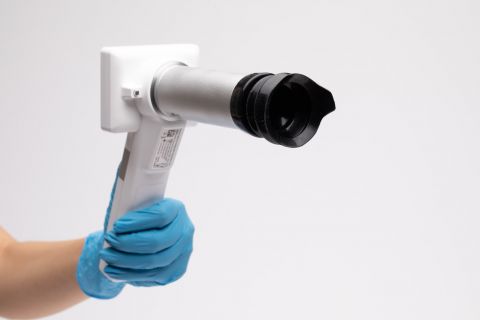

DEC200 Digital Ophthalmoscope Camera System

Ophthalmic visualisation using an ophthalmoscope camera system allows the clinician to visualise and capture images of the fundus and optic nerve by using both LED and infrared (IR) LED light for alignment and easily capturing images without the need for dilation.

Enables non-mydriatic fundus examinations with reflection-free imaging and a wide field of view to capture the appearance of optic disc, macula and retinal vasculature.

Non-mydriatic fundus photography

Effective alternative to direct ophthalmoscopy for examining the ocular fundus in non-ophthalmology or remote settings.

DEC 200 Digital Ophthalmoscope Camera System is a simple-to-use, revolutionary non-mydriatic fundus camera.

Improves accessibility of retinal screening programmes
Makes use of the retina’s reflective properties to show details
No need for pupil dilation in the majority of cases
Painless for patients
Wide angle of the targeted retina
Cost-effective fundus image capture
Early diagnosis of macular degeneration, glaucoma, high blood pressure, damage caused by multiple sclerosis, diabetic retinopathy and other eye health conditions

3.5” screen allows for intuitive user interface with clear image capturing and reviewing without compromising on the mobility

7x internal fixation points cover a larger retina area and enable the patient to fix where to look

DEC200 Digital Ophthalmoscope Camera System

Features and benefits

Simple operation
Images shared USB connection for easy transfer
3.5” LCD touch panel for easy visualisation
LED illumination for clear clear imaging
Reflection-free images
Both auto-focus and power-focus function to facilitate image capturing
7 internal fixation targets for macula center, disk center and peripheral image in DEC 200 optical modules
Infrared and White LEDs for image targeting and capturing
Not necessary to dilate pupils
Non-mydriatic
45 degree FOV of fundus image
5 MP resolution

SOFTWARE SOLUTION

TeleDoc Software

The TeleDoc software is your partner in telemedicine consultations. It empowers healthcare providers to offer high quality care to the patients remotely by sharing diagnostic data via various medical devices that support accurate remote diagnosis and decision making. TeleDoc actively involves the patient in teleconsultations, providing high- quality medical care without compromising the personal relationship with the doctor.

Point of Care Stations

Riester helps to bring medical care to remote and underdeveloped areas all over the world by offering quality products of the highest standards and advanced technologies.

Telemedicine Case

The Riester Telemedicine case is designed to allow patient assessments to be carried out in remote locations globally.

Telemedicine Cart

The Riester Telemedicine cart is designed specifically to deliver a stable platform for teleconsultations.

Control Unit

Focus	Auto & manual focus
Picture Resolution	2560 x 1920 pixels
Video Resolution	2560 x 1920 pixels
LCD Monitor	3.5“ TFT LCD
Image Format	JPEG (Photograph) and H.264 (Video)
Interface	Mini USB 2.0, Micro HDMI (1.4), Wi-Fi (2.4 G)
File Transfer	Mini USB Port to PC with USB cable 1.5 m (shielded)
Dynamic Video Output	HDMI output with A-D HDMI cable 2.0 m (shielded) USB live video enable from USB port with USB cable 1.5 m (shielded)
File Storage	Memory card, supports 2 GB to 32 GB by FAT32 format
Dimension	(L) 202.5 x (W) 89 x (H) 88 mm
Weight	295 g
Power Source	Rechargeable Lithium Battery 3.6 V / Capacity 3350 mAh
Operating Time	Standby mode: 6 hours Operating mode: 1.5 - 4.5 hours (depend on optical lens used)

Fundus camera

View Angle	45 degrees (typical)
Diopter	-20 to +20 D (typical)
Dimension	20.1 x 9 x 20.3 cm (typical)
Weight	450 g (typical)
Search Fundus Lighting	Two modes: Natural white light-emitting diode (LED) or infrared LED. Green LED for fixation
Camera / video flash light	Natural white LED
