Ergonom EENT Sets

Portable set of diagnostic instruments for ENT and Ophthalmology

The Riester econom® is a versatile diagnostic set, including high-quality diagnostic instruments for ENT and Ophthalmology in one portable package. Designed as handy examination assistant, each set has various combinations. A powerful yet cost-effective diagnostic kit is safely delivered to the hard case with a safety sliding lock.

Parts of the econom® diagnostic set

  1. Handle
  2. Otoscope Head
  3. Ophthalmoscope Head
  4. Nasal speculum or Nasal specula 9 mm
  5. Bent arm illuminator
  6. 2 Laryngeal mirrors
  7. Tongue blade holder
  8. Lamp
  9. Case

Image gallery

econom® with nasal speculum expandable Zoom

econom® with nasal speculum expandable

econom® with nasal specula 9 mm Zoom

econom® with nasal specula 9 mm

uni® I otoscope, left, and uni® II May-Ophthalmoscope Zoom

uni® I otoscope, left, and uni® II May-Ophthalmoscope

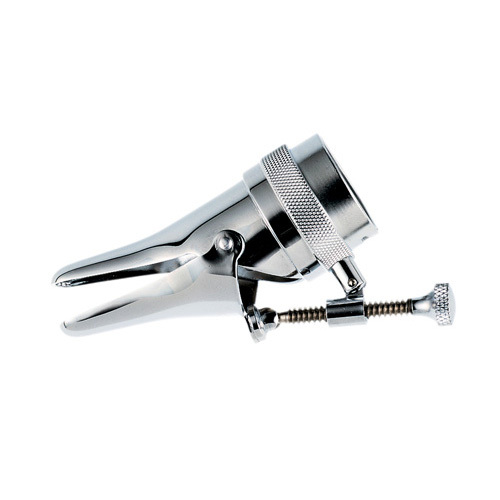

Nasal speculum expandable and nasal specula 9 mm Zoom

Nasal speculum expandable and nasal specula 9 mm

Bent arm illuminator Zoom

Bent arm illuminator

Laryngeal mirror Zoom

Laryngeal mirror

Bent arm illuminator with tongue blade holder Zoom

Bent arm illuminator with tongue blade holder

Swivel lens Zoom

Swivel lens

Features and benefits

uni®I Otoscope

  • Removable magnifying lens with 4-fold magnification can be swivelled to both sides
  • Removable cover glass for insertion of external instruments
  • Suitable for nasal examinations when using the 9 mm speculum
  • Sealed system for performing pneumatic otoscopy
  • Including ear specula with stainless steel fitting, 2, 3, and 4 mm
  • Available with 2.7 V vacuum, XL 2.5 V xenon or XL 3.5 V xenon lamp

uni® II May-Ophthalmoscope

  • Available with 2.5V Xenon or 2.5V Xenon lamp
  • Durable and sturdy ABS plastic head for long service life
  • Plug-in connector for fast and secure attachment to handle
  • Focusing wheel with corrective lenses from 0 to +20 or 0 to -20 dioptres
  • Aperture with large circle for examination for the fundus of the eye

Product details
Dimensions econom® in Case: Length x Width x Height = 230 mm x 140 mm x 46 mm
Power supply Optional 230 V or 120 V version
Ambient temperature 0° to +40° C
Relative humidity 30% to 70% non-condensing
Storage/ Transport ambient temperature -10° to +55°C
Storage/ Transport relative humidity 10% to 95% relative humidity
Air pressure/ Transport relative humidity 800 hPa - 1100 hPa

The lamp for uni® I, II, III

  • Vacuum 2.7 V (2.5 V is specified) 300 mA, mean life span 15 h
  • Xenon 2.5 V 700 mA, mean life span 15 h
  • Xenon 3.5 V 700 mA, mean life span 15 h

Ordering information

econom®

uni® I otoscope head, uni® II May-ophthalmoscope head, nasal speculum expandable, bent arm illuminator, 2 laryngeal mirrors no. 3 and 4, tongue blade holder, replacement lamp otoscope (also for bent arm illuminator).

Art. No. Region Description
2050 All uni®I otoscope, Vacuum 2.7 V/ uni®II May-ophthalmoscope, XL 2.5 V, C-handle
2050-201 EU uni®I otoscope, XL 2.5 V/ uni®II May-ophthalmoscope, XL 2.5 V, C-handle
2061-202 EU uni®I otoscope, XL 3.5 V/uni®II May-ophthalmoscope, XL 3.5 V, C-handle for plug-in charger or ri-charger®

uni® I otoscope head, uni® II May-ophthalmoscope head, nasal specula 9 mm, bent arm illuminator, 2 laryngeal mirrors no. 3 and 4, tongue blade holder, replacement lamp otoscope (also for bent arm illuminator).

Art. No. Region Description
2050-525 EU uni®I otoscope, Vacuum 2.7 V/ uni®II May-ophthalmoscope, XL 2.5 V, C-handle
2050-525-201 EU uni®I otoscope, XL 2.5 V/ uni®II May-ophthalmoscope, XL 2.5 V, C-handle
2062-202 EU uni®I otoscope, XL 3.5 V/uni®II May-ophthalmoscope, XL 3.5 V, C-handle for plug-in charger or ri-charger®

uni® I, II, III

Art. No. Region Description
2010 All uni®I otoscope, Vacuum 2.7 V, C-handle
2010-201 EU uni®I otoscope, XL 2.5 V, C-handle
2015-202 EU uni®I otoscope, XL 3.5 V, C-handle for plug-in charger or ri-charger®
2020 All uni®II May-ophthalmoscope, XL 2.5 V, C-handle
2025-202 EU uni®II May-ophthalmoscope, XL 3.5 V, C-handle for plugin charger or ri-charger®
2030 All uni®III otoscope/May-ophthalmoscope, Vacuum 2.7 V, C-handle
2030-201 EU uni®III otoscope/May-ophthalmoscope, XL 2.5 V, C-handle
2035-202 EU uni®III otoscope/May-ophthalmoscope, XL 3.5 V, C-handle for plug-in charger or ri-charger®
10420 All uni®I otoscope head, Vacuum 2.7 V, pin contact
10419 EU uni®I otoscope head, XL 2.5 V, pin contact
10418 EU uni®I otoscope head, XL 3.5 V, pin contact
10423 All uni®II May-ophthalmoscope head, XL 2.5 V, pin contact
10416 All uni®II May-ophthalmoscope head, XL 3.5 V, pin contact

Spare parts and accessories

Accessories

Art. No. Region Description
10443 All Bent arm illuminator, vacuum 2.7 V, pin contact
10442 EU Bent arm illuminator, XL 2.5 V, pin contact
10441 EU Bent arm illuminator, XL 3.5 V, pin contact
10440 All Nasal speculum, chrome plated
10445 All Tongue blade holder
10447 All 1 pair of laryngeal mirrors, 2 pcs.
10428 EU uni® otoscope case, black
10450 EU econom® case, black
11504 EU Cover glass for otoscope
10448 All Swivel lens for otoscope
10960 All Bulb for pneumatic test

Handle

Art. No. Region Description
10425 All C type battery handle, rheostat, chrome plated w/o bore, for 2 batteries type C
10429 EU C type battery handle, rheostat, chrome plated, for rechargeable ri-accu® NiMH battery
10430 EU Plug-in handle rheostat 2.5 V / 230 V, chrome-plated with rechargeable NiMH battery ri-accu®
10431 EU Plug-in handle rheostat 2.5 V / 120 V, chrome-plated with rechargeable NiMH battery ri-accu®
10432 EU Plug-in handle rheostat 3.5 V / 230 V, chrome-plated with rechargeable Li-Ion battery ri-accu® L
10433 EU Plug-in handle rheostat 3.5 V / 120 V, chrome-plated with rechargeable Li-Ion battery ri-accu® L
10668 EU Combi-handle rheostat 2.5 V / 230 V, chrome-plated with rechargeable NiMH battery ri-accu®
10669 EU Combi-handle rheostat 2.5 V / 120 V, chrome-plated with rechargeable NiMH battery ri-accu®
10679 All Battery handle cover, chrome plated w/o bore
11682 EU Battery handle cover, chrome plated with bore
10426 All Upper handle part with rheostat, chrome plated

Specula

Art. No. Region Description
10460 All Reusable ear specula Ø 2.0 mm, 1 pc.
10461 All Reusable ear specula Ø 3.0 mm, 1 pc.
10462 All Reusable ear specula Ø 4.0 mm, 1 pc.
10463 All Reusable ear specula Ø 5.0 mm, 1 pc.
10464 All Reusable nasal specula Ø 9.0 mm, 1 pc.

Lamp

Art. No. Region Description
10421 All Vacuum 2.7 V bulbs for uni® otoscope/ speculum light, pack of 6 pcs.
10590 All XL 2.5 V bulbs for uni® otoscope, pack of 6 pcs.
10592 All XL 3.5 V bulbs for uni®I otoscope, pack of 6 pcs.
10424 All XL2.5 V bulbs for uni® May-ophthalmoscope, pack of 6 pcs.
10593 All XL 3.5 V bulbs for uni®II May-ophthalmoscope, pack of 6 pcs.

Charging base

Art. No. Region Description
10700 EU ri-charger® 2.5 V / 3.5 V / 230V, wall support
10701 All ri-charger® 2.5 V / 3.5 V / 120V, wall support
10705 EU ri-charger®L 2.5 V / 3.5 V / 230V, wall support
10706 All ri-charger®L 2.5 V / 3.5 V / 120V, wall support
10707 EU Plug-in charger for rechargeable Li-Ion battery 3.5V ri-accu® L [10694] for C type battery handle, EU plug w/o battery
10708 All Plug-in charger with rechargeable Li-Ion battery 3.5V ri-accu® L [10694] for C type battery handle, EU plug
10710 EU Wall support ri-charger®, with screws and plugs
10711 EU Hadle AA type reduction insert for ri-charger®
10712 EU Ear specula compartment cover for ri-charger®
10713 EU Ear specula compartment cover for ri-charger®L

Battery

Art. No. Region Description
10686 EU Alkaline battery type C 1.5 V, pack of 2 pcs.
10681 All ri-accu® rechargeable NIMH battery type C 2.5 V for C type battery handles
10682 EU ri-accu® rechargeable NIMH battery type C 3.5 V for C type battery handles
10683 All ri-accu® rechargeable NIMH battery 2.5 V for Plug-in handle with rheostat
10692 All ri-accu® L rechargeable Li-Ion battery 3.5 V for Plug-in handle with rheostat
