ri-former® Modular Diagnostic Station
A modular diagnostic system offering the optional modules which can measure blood pressure (NIBP), temperature, and with centralised electricity power supply it can support up to 5 instrument-handles with choice of heads; ophthalmoscope, otoscope, dermatoscope, retinoscope, tongue blade holder or nasal speculum.
Table Of Contents
Diagnostic station with flexible, modular design
The flexible, modular design is available as a mobile base, wall design or rail design, offering many configurations to suit the needs of hospitals, medical practices and clinics.
ri-former® diagnostic station provides the healthcare professional (HCP) with the ability to assess their patient’s eyes, ears, nose, tongue and skin making it suitable for use across ENT and Dermatology.
Image gallery
Features and benefits
Design options
ri-former is available in the following design options:
- Rail design is designed to attach to a rail, either horizontally or vertically. It comes with 2 handles and ri-spec® ear specula dispenser.

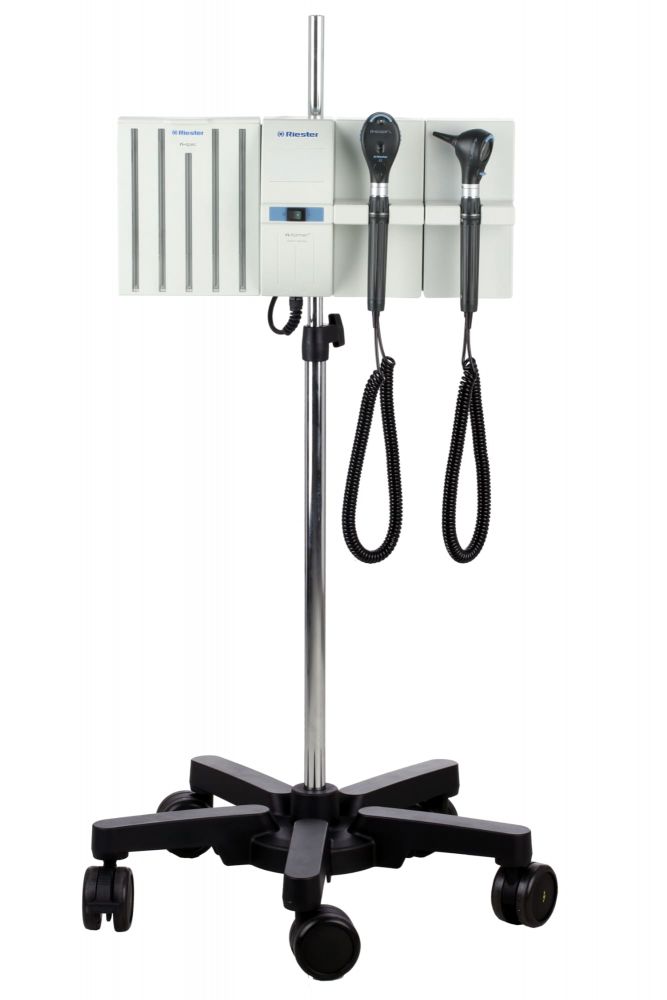

- Mobile base is made of higher-quality stainless steel pole, which is height adjustable (105 – 130 cm / 41.3 – 51.2 in), is easy to move due to low friction, anti-static, lockable castors. Diameter (54 cm / 21.3 in). It comes with 2 handles and ri-spec ear specula dispenser.
- Wall design is designed to be attached to the wall. It comes with a choice of 1 or 2 handles and includes a wall mounting plate, plugs and screws.
Optional thermometry modules:
- RPT-100 (Filac 3000) predictive probe thermometer
- ri-thermo® N infrared tympanic thermometer
Optional blood pressure modules:
- Big ben® aneroid sphygmomanometer (sphyg)
- ri-medic automated and manual clinical-grade blood pressure monitor
Diagnostic handels
Centralised power supply supports up to 3 diagnostic handles which are ergonomically designed with rheotronic® which provide continuously adjustable brightness as well as manual switching on and off.
The diagnostic handles are available with a choice of Riester ri-scope® L and EliteVue instrument heads with a choice of LED or Xenon bulbs:

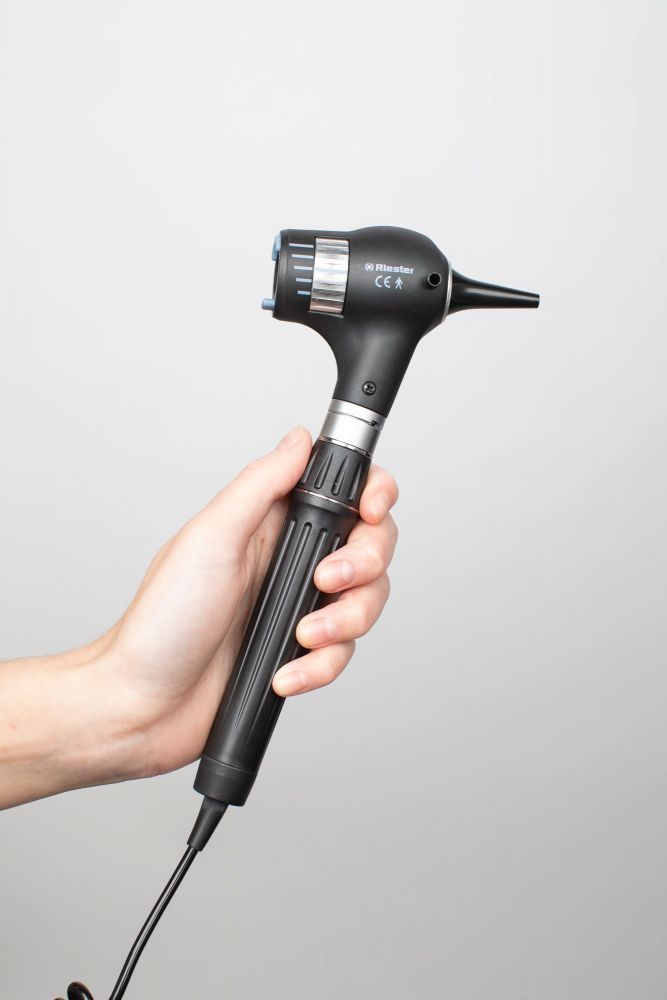

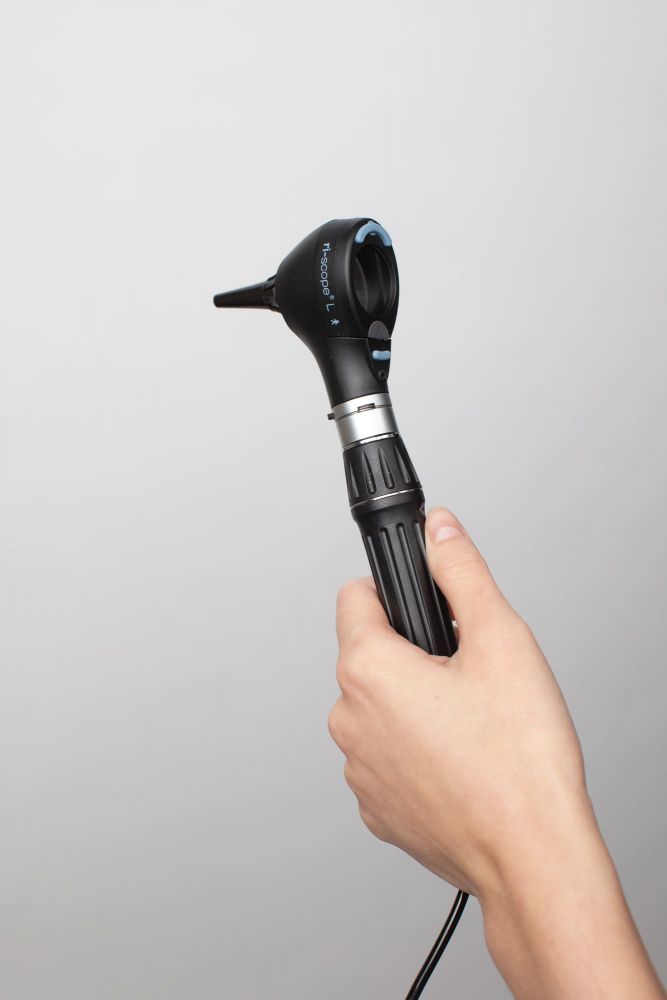

- Otoscopes

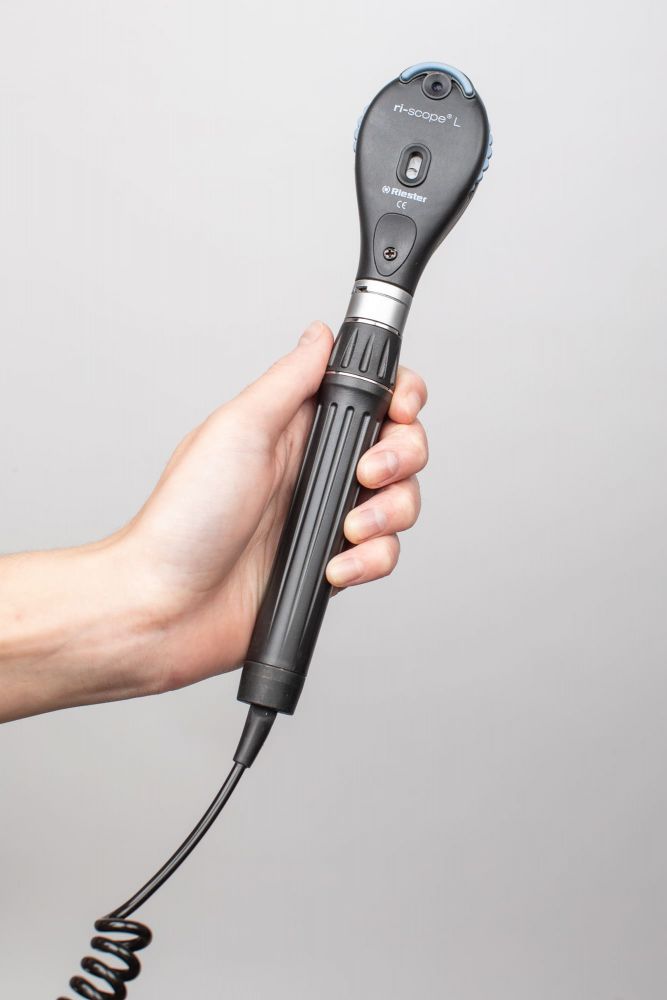

- Ophthalmoscopes
- Retinoscopes
- Dermatoscopes
- Tongue Blade Holders
- Nasal Speculums
- Bent Arm Illuminators
Accessories
- ri-spec integrated ear specula dispenser for the otoscope and nasal specula has 5 tubes for 5 different sizes of specula, dispenses a new specula for each examination and is easy to re-fill and disinfect.
Product details
ri-former
Dimensions | Diagnostic Station: 200 x 180.5 x 75 mm (800 g) Extension Module: 200 x 100 x 75 mm (500 g) |
Power Supply | Input: 100 V-240 V AC / 50-60 Hz / 0,6 A Output: 5 V DC / 3 A / 15 W |
Diagnostic station | Input: 5 V DC / 3 A / 15 W Output 1: 1 x 3.5 V dc / 700 mA Output 2: 2 x 5 V dc / 2 x 1,15 A |
Extension Module | Input: 5 V DC / 3 A / 15 W Output 1: 1 x 3,5 V dc / 700 mA Output 2: 1 x 5 V dc / 1 x 1,15 A |
Classification | Application part type B |
Swith-on time | ON: 1 Min OFF: 5 Min |
Operating conditions | 0° C to + 40° C,10% up to 85 %relative humidity |
Storage and transport conditions | -5° C to + 50° C, 10% up to 85 % relative humidity |
Airpressure | 700 bis 1050 hPa |
RPT-100 (Filac 3000) predictive thermometer
Oral (Quick Mode) | non-fever temps: 3 - 5 seconds, fever temps: 8 - 10 seconds |
Oral (Standard Mode) | 6 - 10 seconds |
Axillary Mode | 8 – 12 seconds |
Rectal Mode | 10 – 14 seconds |
Direct Mode (all sites) | 60 – 120 seconds |
Measurement accuracy | 35.5°C - 42°C Direct Mode (all sites): ±0.1°C (±0.2°F) Standard Mode (all sites): ±0.1°C (±0.2°F) Quick Mode (oral only): ± 0.3°C (±0.5°) |
ri-thermo N clinical thermometer
Measuring time | Approx. 1 – 2 seconds |
Measurement range | 0°C to 100.0°C (32.0°F to 212.0°F) |
Measurement accuracy | ± 0.2°C, 32.0~42.2°C (± 0.4°F, 89.6~108.0°F) |
Display | Liquid crystal display with0.1°C (0.1°F) display units |
Alarm | a: The device is switched on (ON) and ready to measure: 1 short beep. b: The measuring process has finished: 1 long beep. c: System error or fault: 3 short beeps |
Memory | a: The last measured value appears when the device is switched on.b: 12 measurements can be retrieved in memory mode. |
Operating temperature | 5°C - 40°C (41.0°F - 104°F) |
Storage/transport temperature: | -25°C - +55°C (-13°F - 131°F) |
Automatic switch-off | About 1 minute after the last measurement. To prevent misuse, the device switches itself off automatically when the START button is pressed and held down for more than 15 seconds. |
Battery | CR2032 Battery |
Battery life | At least 1,000 measurements |
Size | 153 mm x 31 mm x 40mm |
Weight | 53 g (with battery), 50 g (without battery) |
Standards | Meets ASTM E-1965 requirements |
Ordering information
ri-former Modular Diagnostic Station – Mobile Base
Mobile base with 2 handles, ri-spec® specula dispenser and optional big ben® blood pressure monitor. Instrument heads must be ordered separately. Further handles may be added using extension modules.
ART. NO. | REGION | DESCRIPTION |
---|---|---|
3652-600 | EU | ri-former® mobile base with big ben®, 3.5V/230V (includes latex-free adult velcro cuff and basket) |
3653-600 | EU | ri-former® mobile base with big ben®, 3.5V/120V (includes latex-free adult velcro cuff and basket) |
3652-500 | EU | ri-former® mobile base, 3.5V/230V |
3653-500 | EU | ri-former® mobile base, 3.5V/120V |
ri-former Modular Diagnostic Station – Rail Design
Mobile base with 2 handles, ri-spec® specula dispenser and optional big ben®. Instrument heads must be ordered separately. Further handles may be added using extension modules.
ART. NO. | REGION | DESCRIPTION |
---|---|---|
3652-400 | EU | ri-former® rail design, 3.5V/230V (w/o universal clamp) |
3653-400 | EU | ri-former® rail design, 3.5V/120V (w/o universal clamp) |
10384 | EU | Universal clamp |
ri-former Modular Diagnostic Station – Wall Design
Wall station with 1 or 2 handles and optional clock. Instrument heads must be ordered separately. Further handles may be added using extension modules. Includes: wall mounting plate, plugs, screws and assembly plan.
ART. NO. | REGION | DESCRIPTION |
---|---|---|
3650 | EU | ri-former® wall design with 1 handle and clock, 3.5V/230V |
3651 | EU | ri-former® wall design with 1 handle and clock, 3.5V/120V |
3652 | EU | ri-former® wall design with 1 handle, 3.5V/230V |
3653 | All | ri-former® wall design with 1 handle, 3.5V/120V |
3650-300 | EU | ri-former® wall design with 2 handles and clock, 3.5V/230V |
3651-300 | EU | ri-former® wall design with 2 handles and clock, 3.5V/120V |
3652-300 | EU | ri-former® wall design with 2 handles, 3.5V/230V |
3653-300 | All | ri-former® wall design with 2 handles, 3.5V/120V |
These configurations are standard. Further configurations are available for country/regional specifications, please contact your Riester distributor for further information.
ri-former Modular Diagnostic Station – Wall Design configurations available in the US
ART. NO. | REGION | DESCRIPTION |
---|---|---|
3653-L2L2-XXXXU | US | ri-former® wall design with 2 handles 3.5 V / 120 V without clock, anti-theft heads, L2 LED otoscope, L2 LED ophthalmoscope |
3653-L3L3-XXXXU | US | ri-former® wall design with 2 handles 3.5 V / 120 V without clock, anti-theft heads, L3 LED otoscope, L3 LED ophthalmoscope |
3653-L2X2-SAXWU | US | ri-former® wall design with 2 handles 3.5 V / 120 V without clock, anti-theft heads, L2 LED otoscope, L2 xenon ophthalmoscope, specula dispenser, large scale aneroid with latex-free velcro adult cuff, and pre-drilled wallboard |
3653-L3L2-SAXWU | US | ri-former® wall design with 2 handles 3.5 V / 120 V without clock, anti-theft heads, L3 LED otoscope, L2 LED ophthalmoscope, specula dispenser, large scale aneroid with latex-free velcro adult cuff, and pre-drilled wallboard |
3653-L3L2-SABWU | US | ri-former® wall design with 2 handles 3.5 V / 120 V without clock, anti-theft heads, L3 LED otoscope, L2 LED ophthalmoscope, specula dispenser, large scale aneroid with latex-free velcro adult cuff, predictive oral/axillary thermometer, and pre-drilled wallboard |
3653-LEL2-SAXWU | US | ri-former® wall design with 2 handles 3.5 V / 120 V without clock, anti-theft heads, LED EliteVue macro otoscope, L2 LED ophthalmoscope, specula dispenser, large scale aneroid with latex-free velcro adult cuff, and pre-drilled wallboard |
3653-LEL2-SABWU | US | ri-former® wall design with 2 handles 3.5 V / 120 V without clock, anti-theft heads, LED EliteVue macro otoscope, L2 LED ophthalmoscope, specula dispenser, large scale aneroid with latex-free velcro adult cuff, predictive thermometer, and pre-drilled wallboard |
3653-LEL2-SDBWU | US | ri-former® wall design with 2 handles 3.5 V / 120 V without clock, anti-theft heads, LED EliteVue macro otoscope, L3 LED ophthalmoscope, specula dispenser, RBP-100® clinical grade automatic blood pressure device with latex-free velcro adult cuff, predictive thermometer, and pre-drilled wallboard |
Accessories
ART. NO. | REGION | DESCRIPTION |
---|---|---|
300 | All | ri-former® extension module, 1 handle |
3656 | EU | ri-thermo® N with wall support |
3656-301 | EU | ri-thermo® N with wall support, anti-theft security |
3657 | EU | Wall support for ri-thermo® N |
3658 | All | RPT-100 with probe oral/axillar |
3658-01 | EU | RPT-100 red rectal probe |
3654 | All | ri-spec ear specula dispenser |
3655-100 | EU | big ben® square, w/o accessories |
3655-106 | EU | big ben® square, hook cuff (adult) |
3655-103 | EU | big ben® square, bandage cuff (adult) |
3655-109 | All | big ben® square, velcro cuff (adult) |
3655-123 | EU | big ben® square, velcro cuff (large adult) |
3655-130 | EU | big ben® square, velcro cuff (children) |
10642 | EU | AA type battery handle with rheotronic® for 2 batteries AA or ri-accu® L |
10659 | EU | AA type battery handle black, with coiled cable tubing |
Instruments Heads
ART. NO. | REGION | DESCRIPTION |
---|---|---|
10512-301 | All | EliteVue head only, LED 3.5V with anti-theft security |
10565-301 | All | ri-scope® L2 otoscope head, LED 3.5 V with anti-theft security |
10567-301 | All | ri-scope® L3 otoscope head, LED 3.5 V with anti-theft security |
10594-301 | EU | ri-scope® L1 ophthalmoscope head, LED 3.5 V with anti-theft security |
10595-301 | All | ri-scope® L2 ophthalmoscope head, LED 3.5 V with anti-theft security |
10596-301 | All | ri-scope® L3 ophthalmoscope head, LED 3.5 V with anti-theft security |
Additional instrument heads are available. All ri-scope® L 3.5 V instrument heads are compatible with the ri-former®.
ri-former® specula dispenser
ART. NO. | REGION | DESCRIPTION |
---|---|---|
14065-531 | EU | Disposable specula Ø 2,5mm, black for ri-scope® L1/L2, pack of 1000 pcs. (40x25 pcs.) in plastic sleeves |
14065-534 | EU | Disposable specula Ø 4,0mm, black for ri-scope® L1/L2, pack of 1000 pcs. (40x25 pcs.) in plastic sleeves |
14066-532 | EU | Disposable specula Ø 2,0mm, black for ri-scope® L3, pack of 1000 pcs. (40x25 pcs.) in polybag |
14066-534 | EU | Disposable specula Ø 4,0mm, black for ri-scope® L3, pack of 1000 pcs. (40x25 pcs.) in polybag |
