SuperVu HiRes Galilean Binocular Loupes

SuperVu HiRes Galilean Binoculars with 3.0x magnification provides a high-resolution loupe, which far surpasses any previous standards. This loupe offers triple magnification with a 15% increased field of view, a bright image and a visually flat field from edge to edge.

The SuperVu HiRes Galilean Binocular Loupes

Suitable for most fields of surgery

with-browband-500x500-crop-1-2

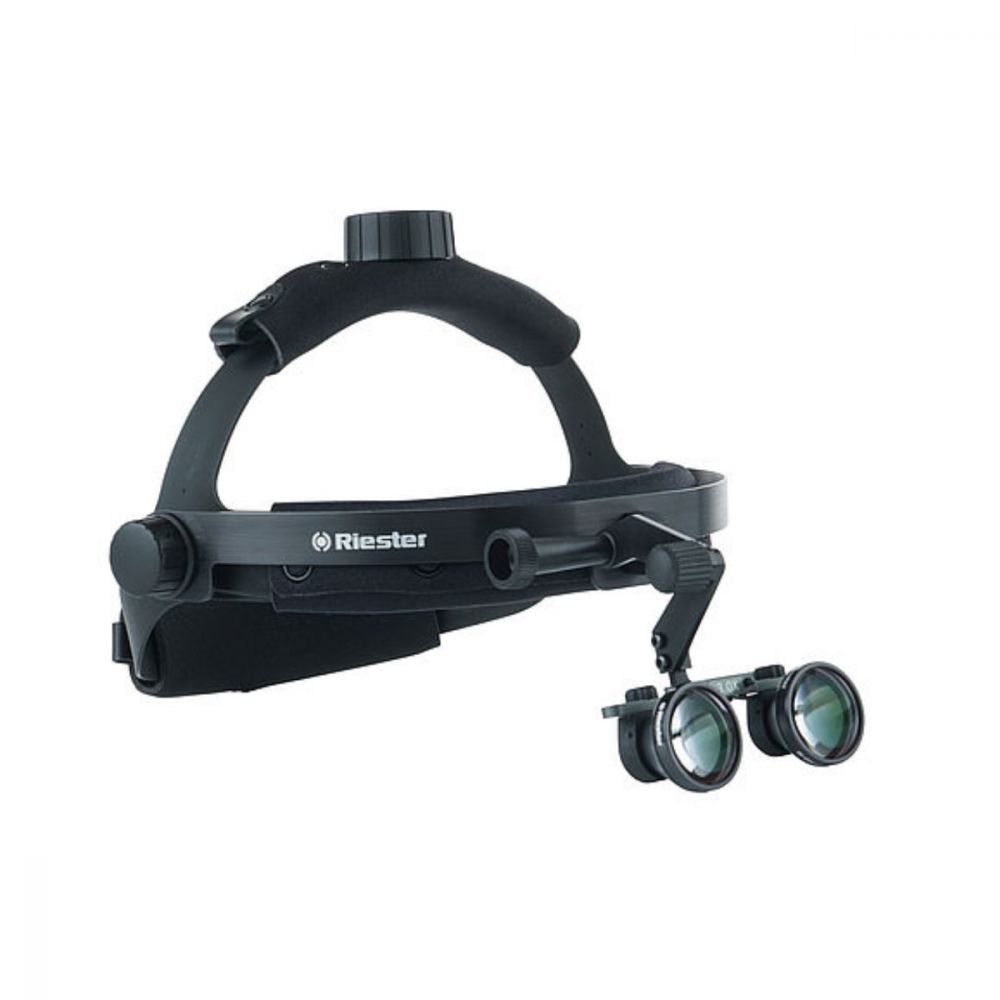

SuperVu HiRes Galilean Binocular Loupes with brow band

with-browband-x1000-2

Spectacle frame without loupe

frame-x1000-1

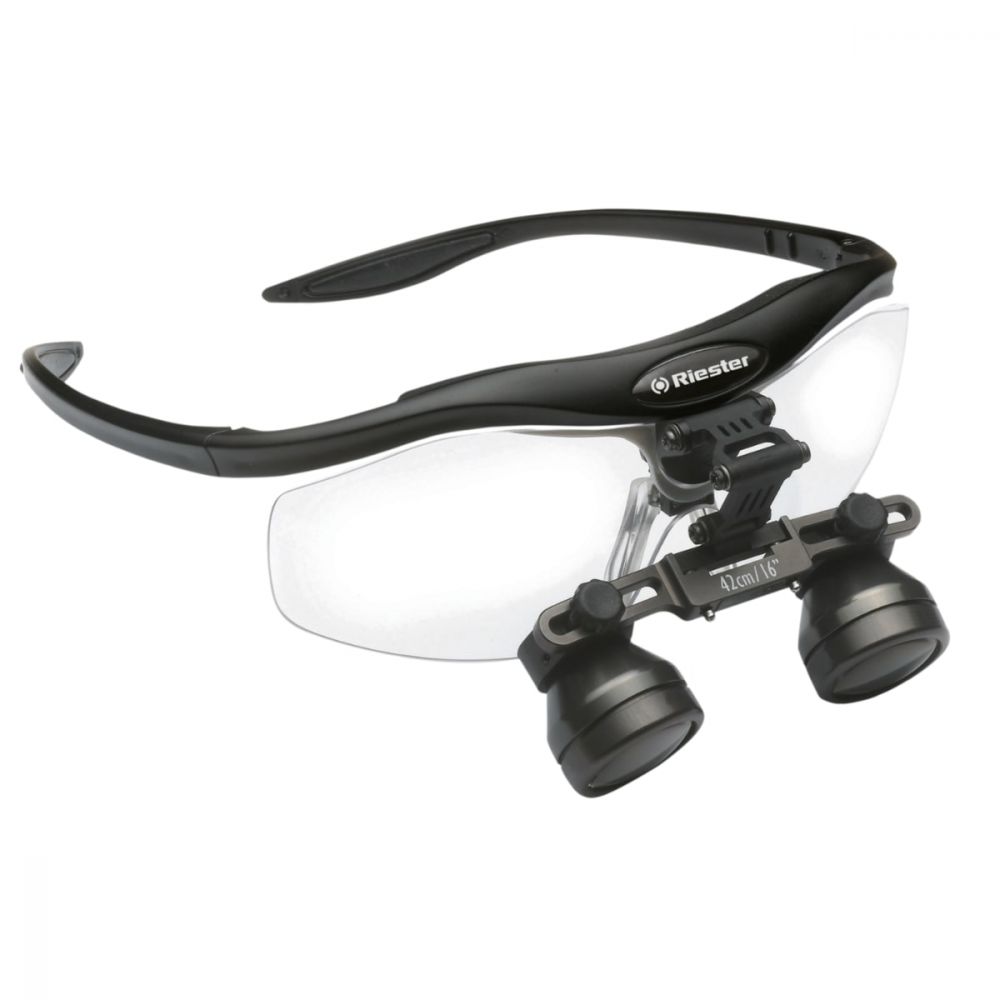

SuperVu Galilean Binocular Loupes with spectacle frame

browband-01-x1000-1

Brow band without loupe

Comparison between High-Res and Standard Loupes field of view

Left: High-Res Loupes, right: Standard Loupes field of view.

Optical features

The SuperVu HiRes Galilean binocular loupes offer excellent optical features with respect to the field of view: (±10%)



Binocular Loupes Magnification Working distance Field of view
SuperVu Galilean HiRes 3.0x 3.0x 34 cm 6.8 cm
  3.0x 42 cm 8.2 cm
  3.0x 46 cm 8.8 cm
  3.0x 50 cm 9.5 cm

Features and benefits

  • 3.0x magnification
  • High resolution loupe
  • 5-element loupe offers a 15% increased field of view, and visually flat field from edge to edge
  • Ideal for ophthalmologists

Product details



SuperVu HiRes Galilean Binocular Loupes
Ambient temperature 10 °C to 35 °C
Relative humidity 30% to 90% non-condensing
Air pressure 800 hPa - 1060 hPa
Shock (without packing) 10 g, duration 6 ms
Storage/ Transport temperature - 10 °C to 55 °C
Storage/ Transport relative humidity 10 % to 95 % non-condensing
Storage/ Transport Air pressure 700 hPa - 1060 hPa
Vibration, sinusoidal 10 Hz to 500 Hz, 0.5 g
Shock 30 g, duration 6 ms
Bump 10 g, duration 6 ms

Ordering information

SuperVu Galilean HiRes

ART. NO. REGION DESCRIPTION
3970-630 All except US SuperVu Galilean HiRes 3.0 x, at 34 cm working distance
3971-630 All except US SuperVu Galilean HiRes 3.0 x, at 42 cm working distance
3972-630 All except US SuperVu Galilean HiRes 3.0 x, at 46 cm working distance
3973-630 All except US SuperVu Galilean HiRes 3.0 x, at 50 cm working distance

Accessories

ART. NO. REGION DESCRIPTION
12760 All except US Protective caps for SuperVu Galilean
12761 All except US Protective caps for SuperVu Galilean HiRes
12762 All except US +1D close-up and distance cap for SuperVu Galilean
12763 All except US +1D close-up and distance cap for SuperVu Galilean HiRes
12765 All except US K-LED. System with charger
12767 All except US Protective caps (2 pcs.) for XL Advantage
12770 All except US Spectacle frame, black w/o loupe
12771 All except US Brow band w/o loupe
