Riester - uni®I Otoscope, uni®II May-Ophthalmoscope / uni®III Otoscope/May-Ophthalmoscope

1-uni-otoscope-head-x1000

uni^® I otoscope Head

2-uni-otoscope-swivel-x1000

uni^® I otoscope

3-may-ophthalmoscope-head-x1000

uni^® II May-Ophthalmoscope Head

4-may-ophthalmoscope-head-detail-x1000

uni^® II May-Ophthalmoscope Head detail

nasal-speculum-x1000

Nasal speculum

Features and benefits

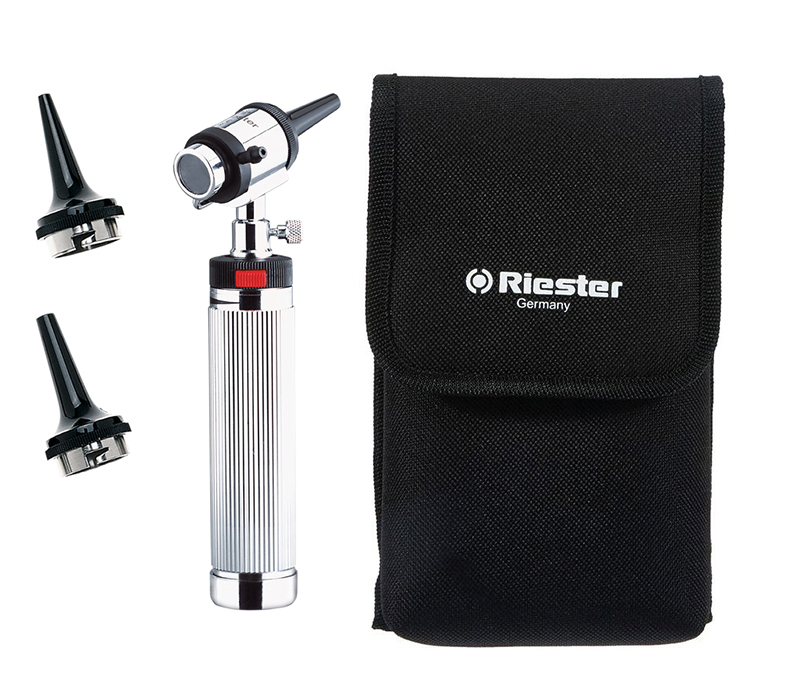

uni^®I Otoscope

Removable magnifying lens with 4-fold magnification can be swivelled to both sides
Removable cover glass for insertion of external instruments
Suitable for nasal examinations when using the 9 mm speculum
Sealed system for performing pneumatic otoscopy
Including ear specula with stainless steel fitting, 2, 3, and 4 mm
Available with 2.7 V vacuum, XL 2.5 V xenon or XL 3.5 V xenon lamp

Features and benefits

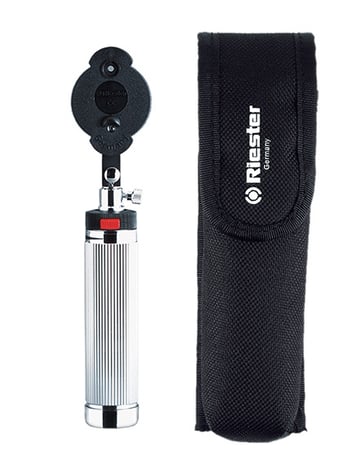

uni^®II May-Ophthalmoscope

Available with 2.5V Xenon or 2.5V Xenon lamp
Durable and sturdy ABS plastic head for long service life
Plug-in connector for fast and secure attachment to handle
Focusing wheel with corrective lenses from 0 to +20 or 0 to -20 dioptres
Aperture with large circle for examination for the fundus of the eye
The corrective lenses from +20 to -20 dioptres guarantee a focus-sed image even in case of strong refractive anomalies.

Product details

The lamp for uni® I, II, III	Vacuum 2.7 V (2.5 V is specified) 300 mA, mean life span 15 h Xenon 2.5 V 700 mA, mean life span 15 h Xenon 3.5 V 700 mA, mean life span 15 h
Power supply	Optional 230 V or 120 V version
Ambient temperature	0° C to + 40° C
Relative humidity	30% to 70% non-condensing
Storage/ Transport temperature	-10° to + 55°
Storage/ Transport relative humidity	10% to 95% relative humidity
Air pressure	800 hPa - 1100 hPa

Ordering information

uni^® I, II, III

ART. NO.	REGION	DESCRIPTION
2010	All	uni^®I otoscope, Vacuum 2.7 V, C-handle
2010-201	EU	uni^®I otoscope, XL 2.5 V, C-handle
2015-202	EU	uni^®I otoscope, XL 3.5 V, C-handle for plug-in charger or ri-charger^®
2020	All	uni^®II May-ophthalmoscope, XL 2.5 V, C-handle
2025-202	EU	uni^®II May-ophthalmoscope, XL 3.5 V, C-handle for plugin charger or ri-charger^®

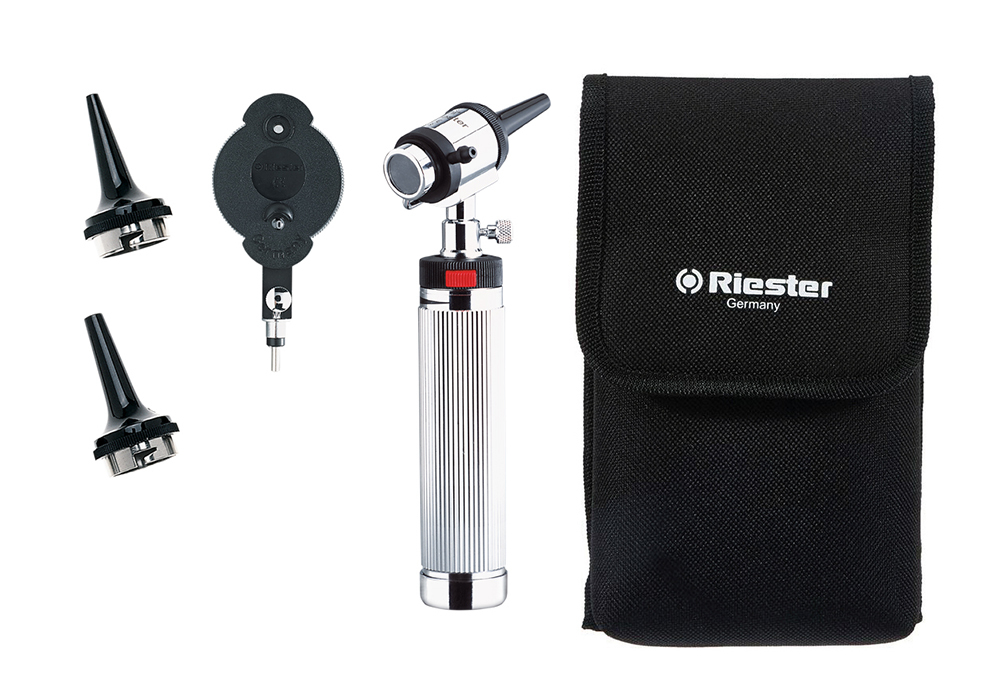

2030	All	uni^®III otoscope/May-ophthalmoscope, Vacuum 2.7 V, C-handle
2030-201	EU	uni^®III otoscope/May-ophthalmoscope, XL 2.5 V, C-handle
2035-202	EU	uni^®III otoscope/May-ophthalmoscope, XL 3.5 V, C-handle for plug-in charger or ri-charger^®

uni^® I, II, III Head

ART. NO.	REGION	DESCRIPTION
10420	All	uni^®I otoscope head, Vacuum 2.7 V, pin contact
10419	EU	uni^®I otoscope head, XL 2.5 V, pin contact
10418	EU	uni^®I otoscope head, XL 3.5 V, pin contact
10423	All	uni^®II May-ophthalmoscope head, XL 2.5 V, pin contact
10416	All	uni^®II May-ophthalmoscope head, XL 3.5 V, pin contact

Spare parts and accessories

Accessories

ART. NO.	REGION	DESCRIPTION
10443	All	Bent arm illuminator, vacuum 2.7 V, pin contact
10442	EU	Bent arm illuminator, XL 2.5 V, pin contact
10441	EU	Bent arm illuminator, XL 3.5 V, pin contact
10440	All	Nasal speculum, chrome plated
10445	All	Tongue blade holder
10447	All	1 pair of laryngeal mirrors, 2 pcs.
10428	EU	uni^® otoscope case, black
10450	EU	econom^® case, black
11504	EU	Cover glass for otoscope
10448	All	Swivel lens for otoscope
10960	All	Bulb for pneumatic test

Handle

ART. NO.	REGION	DESCRIPTION
10425	All	C type battery handle, rheostat, chrome plated w/o bore, for 2 batteries type C
10429	EU	C type battery handle, rheostat, chrome plated, for rechargeable ri-accu^® NiMH battery
10430	EU	Plug-in handle rheostat 2.5 V / 230 V, chrome-plated with rechargeable NiMH battery ri-accu^®
10431	EU	Plug-in handle rheostat 2.5 V / 120 V, chrome-plated with rechargeable NiMH battery ri-accu^®
10432	EU	Plug-in handle rheostat 3.5 V / 230 V, chrome-plated with rechargeable Li-Ion battery ri-accu^® L
10433	EU	Plug-in handle rheostat 3.5 V / 120 V, chrome-plated with rechargeable Li-Ion battery ri-accu^® L
10668	EU	Combi-handle rheostat 2.5 V / 230 V, chrome-plated with rechargeable NiMH battery ri-accu^®
10669	EU	Combi-handle rheostat 2.5 V / 120 V, chrome-plated with rechargeable NiMH battery ri-accu^®
10679	All	Battery handle cover, chrome plated w/o bore
11682	EU	Battery handle cover, chrome plated with bore
10426	All	Upper handle part with rheostat, chrome plated

Specula

ART. NO.	REGION	DESCRIPTION
10460	All	Reusable ear specula Ø 2.0 mm, 1 pc.
10461	All	Reusable ear specula Ø 3.0 mm, 1 pc.
10462	All	Reusable ear specula Ø 4.0 mm, 1 pc.
10463	All	Reusable ear specula Ø 5.0 mm, 1 pc.
10464	All	Reusable nasal specula Ø 9.0 mm, 1 pc.

Lamp

ART. NO.	REGION	DESCRIPTION
10421	All	Vacuum 2.7 V bulbs for uni^® otoscope/ speculum light, pack of 6 pcs.
10590	All	XL 2.5 V bulbs for uni^® otoscope, pack of 6 pcs.
10592	All	XL 3.5 V bulbs for uni^®I otoscope, pack of 6 pcs.
10424	All	XL2.5 V bulbs for uni^® May-ophthalmoscope, pack of 6 pcs.
10593	All	XL 3.5 V bulbs for uni^®II May-ophthalmoscope, pack of 6 pcs.

Charging base

ART. NO.	REGION	DESCRIPTION
10700	EU	ri-charger^® 2.5 V / 3.5 V / 230V, wall support
10701	All	ri-charger^® 2.5 V / 3.5 V / 120V, wall support
10705	EU	ri-charger^®L 2.5 V / 3.5 V / 230V, wall support
10706	All	ri-charger^®L 2.5 V / 3.5 V / 120V, wall support
10707	EU	Plug-in charger for rechargeable Li-Ion battery 3.5V ri-accu^® L [10694] for C type battery handle, EU plug w/o battery
10708	All	Plug-in charger with rechargeable Li-Ion battery 3.5V ri-accu^® L [10694] for C type battery handle, EU plug
10710	EU	Wall support ri-charger^®, with screws and plugs
10711	EU	Hadle AA type reduction insert for ri-charger^®
10712	EU	Ear specula compartment cover for ri-charger^®
10713	EU	Ear specula compartment cover for ri-charger^®L

Battery

ART. NO.	REGION	DESCRIPTION
10686	EU	Alkaline battery type C 1.5 V, pack of 2 pcs.
10681	All	ri-accu^® rechargeable NIMH battery type C 2.5 V for C type battery handles
10682	EU	ri-accu^® rechargeable NIMH battery type C 3.5 V for C type battery handles
10683	All	ri-accu^® rechargeable NIMH battery 2.5 V for Plug-in handle with rheostat
10692	All	ri-accu^® L rechargeable Li-Ion battery 3.5 V for Plug-in handle with rheostat
