Schiötz C Tonometer and Schiötz Tonometer in Case

Schiötz C Tonometer and Schiötz Tonometer in Case

The Tonometer

An eye pressure test uses an instrument called a tonometer to measure the pressure inside your eye.1

Riester’s schiötz Tonometer is used to measure intraocular pressure. Eye doctors primarily use the tonometry in cases of suspected increased intraocular pressure or as a preventive examination for early detection of glaucoma.

Image gallery

Schiötz A Tonometer Zoom

Schiötz A Tonometer

Schiötz B Tonometer Zoom

Schiötz B Tonometer

Schiötz C Tonometer Zoom

Schiötz C Tonometer

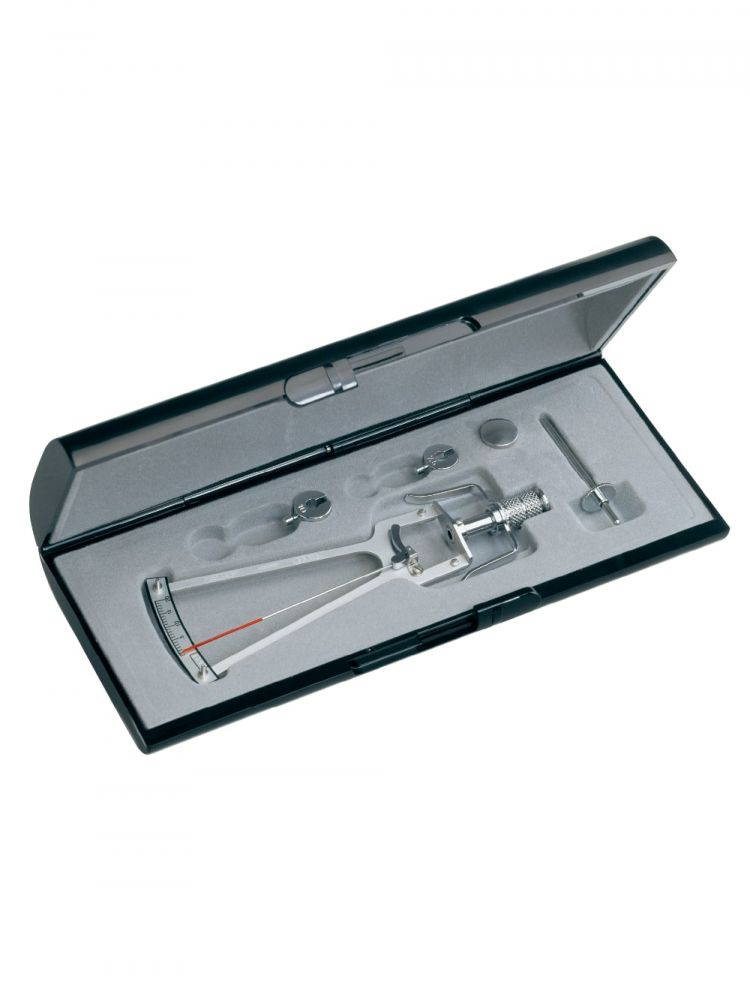

Schiötz Tonometer in case Zoom

Schiötz Tonometer in case

Schiötz Tonometer 3 weights Zoom

Schiötz Tonometer 3 weights

Schiötz Tonometer details

  1. Scale
  2. Needle
  3. Lever arm
  4. Plunger
  5. Barrel
  6. Holder
  7. Foot plate
  8. Test block
  9. Weights

Features and benefits of a Schiötz Tonometer

  • High quality agate bearing for an extremely long service life
  • Precision measurement on a scale of 0 to 20 subdivisions and 0 to -1 sub-divisions
  • Easy to read scale with red pointer
  • Complete in a black deluxe case with velvet-look inserts
  • Supplied with three weights (5.5 g, 7.5 g, 10 g) and a conversion table

Product details

Schiötz Tonometer
Dimensions Height: 130 mm, Width: 45 mm, Weight: 24.4 g
Scale 0 to 20 graduation marks
0 to -1 graduation mark
One graduation mark corresponds to a stroke of 0.05 mm
Operating temperature 10° C to + 40° C
Relative humidity 30% up to 70 % relative humidity, non-condensing
Storage temperature -20° C to +70° C
Storage relative humidity up to 85 % relative humidity, non-condensing
Air pressure 700 hPa bis 1060 hPa

Ordering information

Schiötz Tonometer

Art. No. Region Description
5110 EU schiötz A Tonometer, straight scale, silver
5111 EU schiötz B Tonometer, inclined scale, silver
5112 EU schiötz C Tonometer, inclined scale, silver
5113 EU schiötz C Tonometer, inclined scale, gold
5114 EU schiötz C Tonometer, inclined scale, silver, with 4 weights

Accessories

Art. No. Region Description
11129 EU Weight 5.5 g, schiötz
11130 EU Weight 7.5 g, schiötz
11131 EU Weight 10 g, schiötz
11132 EU Weight 15 g, schiötz
11133 EU Plunger pin
11930 EU Cleaning rod
11980 EU Test block
