ri-scope® Operation Otoscope

Riester’s ri-scope® Operation otoscope for human use; this product offers 2.5x magnification with a moveable speculum holder. The open design offers unhindered use during examination and operation on patients.

hero-blue-operation-otoscope-1440x

Table Of Contents

Operation otoscope for human use

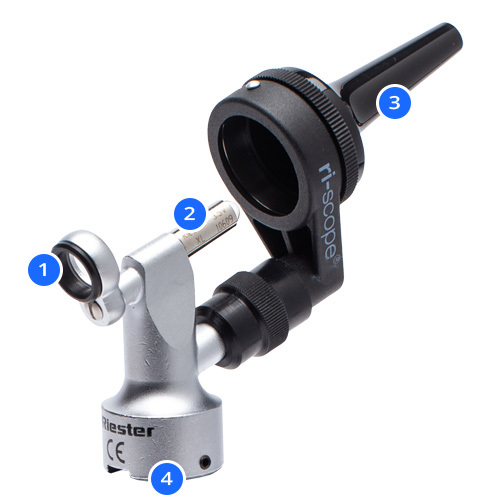

ri-scope® Operation otoscope details

  1. Magnifying glass
  2. Lamp
  3. Reusable ear specula
  4. Bayonet fitting to quickly switch instrument heads.
ri-scope-operation-otoscope-h-details-700x-q80

Image gallery

riester-operation-otoscope-human-square-480x

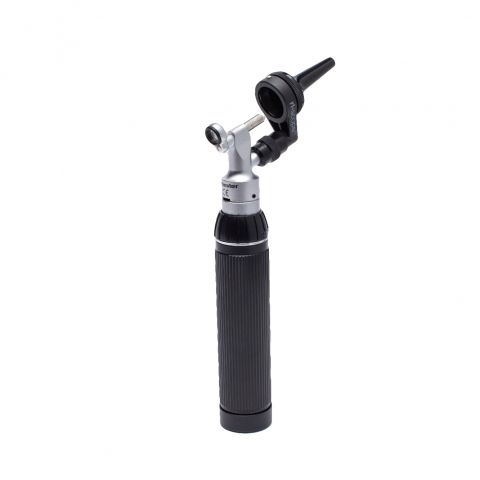

ri-scope® Operation otoscope Human

ri-scope-op-otoscope-h-480x

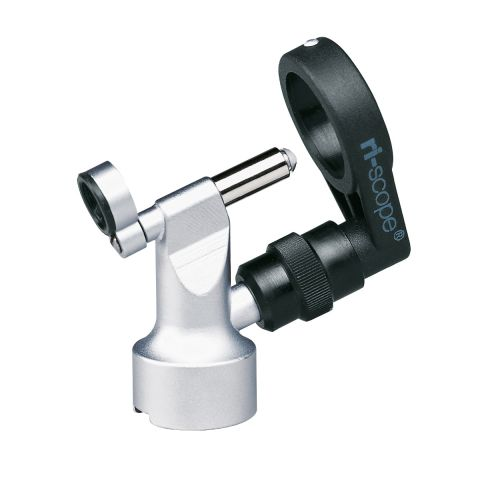

ri-scope® Operation otoscope Human, head

ri-scope-op-otoscope-ru-specula-480x

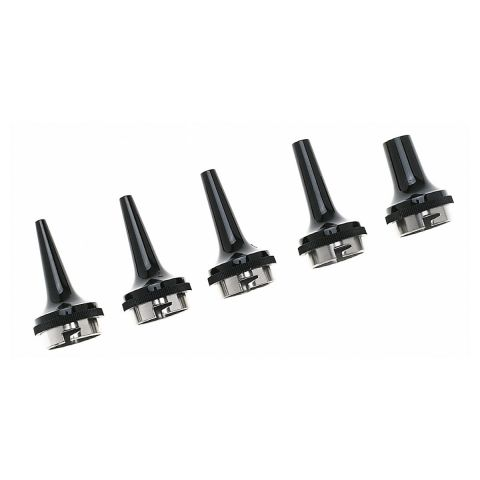

ri-scope® Operation otoscope Human, Reusable ear specula

Features and benefits

  • Customer’s choice of Xenon 3.5V lamp or Halogen 2.5V lamp

  • Swivel lens with 2.5x magnification

  • Moveable speculum holder that can be fixed in any position

  • Open design for unhindered use during examination and operation

  • Otoscope is made of metal and speculum holder is made of impact resistant plastic offering a long service life

  • For use with reusable metal specula

    • High quality model made of chrome-plated, corrosion-free metal
    • Disinfection and sterilisation can be carried out in the normal way (134° C for 10 minutes)
    • Matte inner surfaces reduce the risk of reflections during examinations
    • Slotted models: Optimum instrument guide provided by special edges on opening

Product details

ri-scope® Operation Otoscope Human


Dimensions Riester Operation otoscope Human- Dimension


The lamp for ri-scope® Operation otoscope Human HL 2.5 V, 2.5 V, 680 mA, mean life span 20 h
XL 3.5 V, 3.5 V, 700 mA, mean life span 20 h
Ambient temperature 0° to +40° C
Relative humidity 30% to 70% non-condensing
Storage/ Transport temperature -10° to +55°C
Storage/ Transport relative humidity 10% to 95% non-condensing

Ordering information

ri-scope® Operation otoscope Human head

ART. NO. REGION DESCRIPTION
10560 EU ri-scope® Operation otoscope Human head, HL 2.5 V
10561 EU ri-scope® Operation otoscope Human head, XL 3.5 V
10561-301 All ri-scope® Operation otoscope Human head, XL 3.5 V with anti-theft security

Spare parts and accessories

Specula
ART. NO. REGION DESCRIPTION
10460 All Reusable ear specula Ø 2.0 mm, 1 pc.
10461 All Reusable ear specula Ø 3.0 mm, 1 pc.
10462 All Reusable ear specula Ø 4.0 mm, 1 pc.
10463 All Reusable ear specula Ø 5.0 mm, 1 pc.
10464 All Reusable Nasal specula Ø 9.0 mm, 1 pc.

Battery handles

ART. NO. REGION DESCRIPTION
10642 All AA type battery handle with rheotronic® for 2 batteries AA or ri-accu®L
10670 All C type battery handle, rheotronic®, chrome plated, for 2 C cell batteries or ri-accu®
10704 EU USB Battery Handle Type C, 3.5 V with rechargeable Li-ion Battery and Charger, EU
10704.001 AU USB Battery Handle Type C, 3.5 V with rechargeable Li-ion Battery and Charger, AU
10704.002 UK USB Battery Handle Type C, 3.5 V with rechargeable Li-ion Battery and Charger, UK
10704.003 US USB Battery Handle Type C, 3.5 V with rechargeable Li-ion Battery and Charger, US

Charging base

ART. NO. REGION DESCRIPTION
10700 EU ri-charger® 2.5V/3.5V/ 100-240V, black with wall bracket, EU
10701 All ri-charger® 2.5V/3.5V/ 100-240V, black with wall bracket, with US adapter
10705 EU ri-charger® L 3.5V / 100-240V, white with wall bracket, EU
10706 All ri-charger® L 3.5V / 100-240V, white with wall bracket, with US adapter
10707 EU Plug-in charger for rechargeable Li-Ion battery 3.5V ri-accu® L [10694] for C type battery handle, EU plug w/o battery
10708 All Plug-in charger with rechargeable Li-Ion battery 3.5V ri-accu® L [10694] for C type battery handle, EU plug
10710 EU Wall support ri-charger®, with screws and plugs
10711 EU Handle AA type reduction insert for ri-charger®
10712 EU Ear specula compartment cover for ri-charger®
10713 EU Ear specula compartment cover for ri-charger®L

Batteries

ART. NO. REGION DESCRIPTION
10690 All ri-accu® L rechargeable Li-Ion battery type AA 3.5 V for AA-type battery handle and ri-charger® L
10691 All ri-accu® L rechargeable Li-Ion battery type C 3.5 V for C-type battery handle and ri-charger® L
10694 All ri-accu® L rechargeable Li-Ion battery (plug in handle) type C 3.5 V for C type battery handle
10680 All ri-accu® rechargeable NIMH battery type AA 2.5 V for AA-type battery handles
10681 All ri-accu® rechargeable NIMH battery type C 2.5 V for C type battery handles
10682 EU ri-accu® rechargeable NIMH battery type C 3.5 V for C type battery handles
10685 EU Alkaline battery type AA 1.5 V, pack of 4 pcs.
10686 EU Alkaline battery type C 1.5 V, pack of 2 pcs.
10692 All ri-accu® L rechargeable battery, 3.5 V
10699 All ri-accu® USB rechargeable battery, 3.5 V

Bulb

ART. NO. REGION DESCRIPTION
10602 All HL 2.5 V bulbs for ri-scope® Operation Otoscope (Human/ Veterinary), pack of 6 pcs.
10609 All XL 3.5 V bulbs for ri-scope® Operation Otoscope (Human/ Veterinary), pack of 6 pcs.

Accessories

ART. NO. REGION DESCRIPTION
11449 All Operation lens for ri-scope® L Otoscope
11564 EU Swivel magnifying glass for ri-scope® F.O. nasal speculum
10960 All Bulb for pneumatic test
10961 All Connector for pneumatic test
