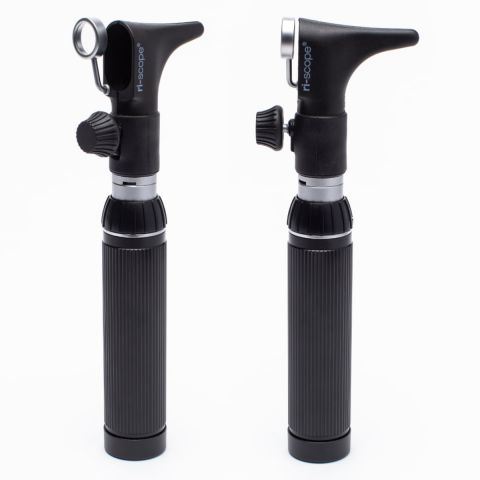

ri-scope® F.O. Nasal Speculum
One of the many accessory heads available for the ri-scope® L handle, this is the fibre optic Xenon or LED illumination nasal speculum. ri-scope® F.O. nasal speculum is hand-held instrument for diagnosis of the nasal meatus and a wide range of power supply options.
For diagnosis of the nasal meatus
ri-scope® F.O. nasal speculum head is also designed for use with the ri-former® Diagnostic Wall System with an anti-theft device. It has Fiber Optic 3.5 V LED Illumination. His high-quality fibre optic light-wave conductor is for optimal transmission and beaming of light. It provides an exam light that is similar to day light.

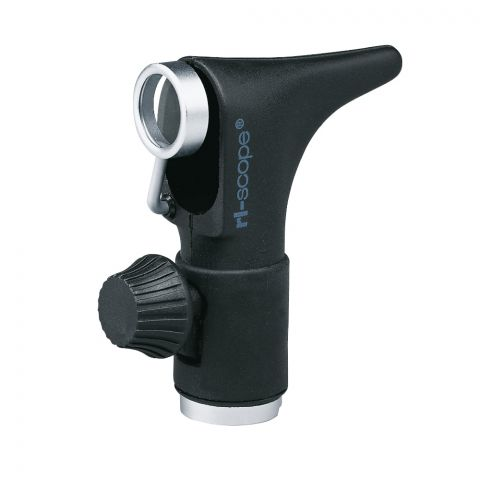

ri-scope® F.O. nasal speculum details
- Screw to expand the speculum
- 2.5x magnification swivel lens
- Expandable speculum
- Internal fibre optics
- Bayonet fitting to quickly switch instrument heads.
Features and benefits
- High-quality fibre optic light wave conductor for optimal beaming and transmission of the light. In combination with the lamp this provides cool examination light similar to daylight.
- Swivelling and removable lens with 2.5-fold magnification
- Slow and controlled expansion of the speculum by turning on the screw adjuster, fast expansion by pressing down on the screw adjuster
- Impact resistant casing made of glass-fibre reinforced plastic
Product details
ri-scope® F.O. Nasal Speculum | |
Dimensions | |
The lamp for ri-scope® F.O. nasal speculum | Nasal speculum XL 2.5 V 2.5 V 750 mA mean life span 15 h Nasal speculum XL 3.5 V 3.5 V 720 mA mean life span 15 h Nasal speculum LED 2.5 V 2.5 V 280 mA mean life span up to 50,000 h1 Nasal speculum LED 2.5 V 3.5 V 280 mA mean life span up to 50,000 h1 |
Ambient temperature | 0 °C to 40 °C |
Relative humidity | 30% to 70% non-condensing |
Storage/ Transport ambient temperature | -10 °C to 55 °C |
Storage/ Transport relative humidity | 30% to 85% non-condensing |
Air pressure/ Transport relative humidity | 800 hPa - 1100 hPa |
1: dependent on usage
Ordering information
ri-scope® F.O. nasal speculum
ART. NO. | REGION | DESCRIPTION |
---|---|---|
10536 | EU | ri-scope® F.O. nasal speculum, XL 2.5 V |
10537 | EU | ri-scope® F.O. nasal speculum, XL 3.5 V |
10575 | EU | ri-scope® F.O. nasal speculum, LED 3.5 V |
10537-301 | EU | ri-scope® F.O. nasal speculum, XL 3.5 V with anti-theft security |
10575-301 | All | ri-scope® F.O. nasal speculum, LED 3.5 V with antitheft security |

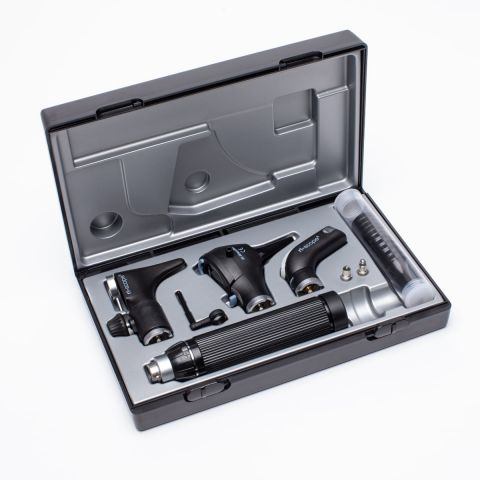

ri-scope® E.N.T.
ri-scope® L Otoscope, ri-scope® F.O. nasal speculum and ri-scope® F.O. tongue blade holder
ART. NO. | REGION | DESCRIPTION |
---|---|---|
3759 | EU | ri-scope® L3, XL 2.5 V/ Battery handle, Type C with rheotronic® for 2 alkaline batteries type C or ri-accu® |
3760 | EU | ri-scope® L3, LED 2.5 V/ Battery handle, Type C with rheotronic® for 2 alkaline batteries type C or ri-accu® |
3760-550 | EU | ri-scope® L3, LED 3.5 V/ Battery handle, Type C with rheotronic® for ri-accu® L |

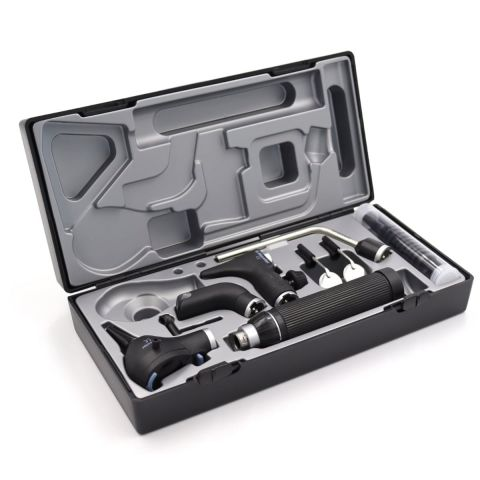

ri-scope® praktikant
ri-scope® L Otoscope, ri-scope® F.O. nasal speculum, ri-scope® F.O. tongue blade holder and ri-scope® F.O. bent arm illuminator
ART. NO. | REGION | DESCRIPTION |
---|---|---|
3765 | EU | ri-scope® L3, XL 2.5 V/ Battery handle, Type C with rheotronic® for 2 alkaline batteries type C or ri-accu® |
3766 | EU | ri-scope® L3, LED 2.5 V/ Battery handle, Type C with rheotronic® for 2 alkaline batteries type C or ri-accu® |
3766-550 | EU | ri-scope®L3, LED 3.5 V/ Battery handle, Type C with rheotronic® for ri-accu® L |
ri-scope® de luxe
ri-scope® L Oto-/Ophthalmoscope, ri-scope® F.O. nasal speculum, ri-scope® F.O tongue blade holder, bent arm illuminator, 2 laryng. mirrors, 1 spare lamp XL
ART. NO. | REGION | DESCRIPTION |
---|---|---|
3771 | EU | ri-scope® L3 Oto-, XL 2.5 V / L2 Ophthalmoscope, XL 2.5 V/ Battery handle, Type C with rheotronic® for 2 alkaline batteries type C or ri-accu® |
3772 | EU | ri-scope® L3 Oto-, LED 2.5 V / L2 Ophthalmoscope, LED 2.5 V/ Battery handle, Type C with rheotronic® for 2 alkcaline batteries type C or ri-accu® |
3772-203 | EU | ri-scope® L3 Oto-, LED 2.5 V / L2 Ophthalmoscope, XL 2.5 V/ Battery handle, Type C with rheotronic® for 2 alkcaline batteries type C or ri-accu® |
3772-550 | EU | ri-scope® L3 Oto-, LED 3.5 V / L2 Ophthalmoscope, XL 3.5 V/ Battery handle, Type C with rheotronic® for ri-accu® L |
3820-203 | EU | ri-scope® L3 Oto-, LED 3.5 V / L2 Ophthalmoscope, LED 3.5 V/ Battery handle, Type C with rheotronic® for ri-accu® L |
vet de luxe I
ri-scope® Operation otoscope (Veterinary), ri-scope® L1 Ophthalmoscope, ri-scope® F.O. tongue blade holder, ri-scope® F.O. nasal speculum, Ear specula, 3 spare lamps (for VET Otoscope, Ophthalmoscope and one for tongue and/or nasal), Swivel lens
ART. NO. | REGION | DESCRIPTION |
---|---|---|
3866 | EU | XL 2.5 V (for ophthalmoscope, tongue and nasal)/HL 2.5 V (Vet operations Otoscope), C-handle for 2 alkaline-batteries, C-type or ri-accu® |
3869 | EU | XL 2.5 V (for ophthalmoscope, tongue and nasal)/HL 2.5 V (Vet operations Otoscope), AA-handle for 2 alkaline-batteries, AA type or ri-accu® |
3867 | All | XL 3.5 V, C-handle for ri-accu® L |
3870 | EU | XL 3.5 V, AA-handle for ri-accu® L |
Spare parts and accessories
Batterie handles
ART. NO. | REGION | DESCRIPTION |
---|---|---|
10642 | All | AA type battery handle with rheotronic® for 2 batteries AA or ri-accu® L |
10425 | All | C type battery handle, rheostat, chrome plated w/o bore, for 2 C cell batteries |
10429 | EU | C type battery handle, rheostat, chrome plated, for 2 C cell batteries or ri-accu® |
10426 | All | Upper handle part with rheostat, chrome plated |
10679 | All | Battery handle cover, chrome plated w/o bore |
11682 | EU | Battery handle cover, chrome plated with bore |
10670 | All | C type battery handle, rheotronic®, chrome plated, for 2 C cell batteries or ri-accu® |
10704 | EU | USB Battery Handle Type C, 3.5 V with rechargeable Li-ion Battery and Charger, EU |
10704.001 | AU | USB Battery Handle Type C, 3.5 V with rechargeable Li-ion Battery and Charger, AU |
10704.002 | UK | USB Battery Handle Type C, 3.5 V with rechargeable Li-ion Battery and Charger, UK |
10704.003 | US | USB Battery Handle Type C, 3.5 V with rechargeable Li-ion Battery and Charger, US |
Charging base
ART. NO. | REGION | DESCRIPTION |
---|---|---|
10700 | EU | ri-charger® 2.5 V/3.5 V/ 100-240 V, black with wall bracket, EU |
10701 | EU | ri-charger® 2.5 V/3.5 V/ 100-240 V, black with wall bracket, with US adapter |
10705 | EU | ri-charger® L 3.5 V / 100-240 V, white with wall bracket, EU |
10706 | All | ri-charger® L 3.5 V / 100-240 V, white with wall bracket, with US adapter |
10707 | EU | Plug-in charger for rechargeable Li-Ion battery 3.5 V ri-accu® L [10694] for C type battery handle, EU plug w/o battery |
10708 | All | Plug-in charger with rechargeable Li-Ion battery 3.5 V ri-accu® L [10694] for C type battery handle, EU plug |
10710 | EU | Wall support ri-charger®, with screws and plugs |
10711 | EU | Handle AA type reduction insert for ri-charger® |
10712 | EU | Ear specula compartment cover for ri-charger® |
10713 | EU | Ear specula compartment cover for ri-charger® L |
Batteries
ART. NO. | REGION | DESCRIPTION |
---|---|---|
10690 | All | ri-accu® L rechargeable Li-Ion battery type AA 3.5 V for AA-type battery handle and ri-charger® L |
10691 | All | ri-accu® L rechargeable Li-Ion battery type C 3.5 V for C-type battery handle and ri-charger® L |
10694 | All | ri-accu® L rechargeable Li-Ion battery (plug in handle) type C 3.5 V for C type battery handle |
10680 | All | ri-accu® rechargeable NIMH battery type AA 2.5 V for AA-type battery handles |
10681 | All | ri-accu® rechargeable NIMH battery type C 2.5 V for C type battery handles |
10682 | EU | ri-accu® rechargeable NIMH battery type C 3.5 V for C type battery handles |
10685 | EU | Alkaline battery type AA 1.5 V, pack of 4 pcs. |
10686 | EU | Alkaline battery type C 1.5 V, pack of 2 pcs. |
Bulb
ART. NO. | REGION | DESCRIPTION |
---|---|---|
10489 | All | XL 2.5 V bulbs for ri-scope® L1 Otoscope with direct illumination, pack of 6 pcs. |
10605 | All | XL 2.5 V bulbs for ri-scope® L1/L2/L3 Ophthalmoscope and ri-derma, pack of 6 pcs. |
10626 | All | LED 2.5 V bulb for ri-scope® L2/L3 Otoscope and ri-derma. |
10624 | All | LED 2.5V bulb for ri-scope® L1/L2/L3 Ophthalmoscope |
10627 | All | LED 3.5V bulb for ri-scope® L1/L2/L3 Ophthalmoscope |
10625 | All | LED 3.5 V bulb for ri-scope® L2/L3 Otoscope, ri-derma, light conductor, nasal speculum and tongue blade holder. |
10487 | All | XL 3.5 V bulbs for ri-scope® L1 Otoscope, pack of 6 pcs. |
10607 | All | XL 3.5 V bulbs for ri-scope® L2/L3 Otoscope, pack of 6 pcs. |
10608 | All | XL 3.5 V bulbs for ri-scope® L1/L2/L3 Ophthalmoscope and ri-derma, pack of 6 pcs. |
10600 | All | XL 2.5 V bulbs for ri-scope® L2/L3 Otoscope, Light conductor, nasal speculum and tongue blade holder, pack of 6 pcs. |
10602 | All | HL 2.5 V bulbs for ri-scope® Operation otoscope (Human/ Veterinary), pack of 6 pcs. |
10625 | All | LED 3.5 V bulb for ri-scope® L2/L3 Otoscope, ri-derma, light conductor, nasal speculum and tongue blade holder. |
10609 | All | XL 3.5 V bulbs for ri-scope® Operation otoscope (Human/ Veterinary), pack of 6 pcs. |
10615 | All | HL 2.5 V bulbs for ri-scope® retinoscope slit, pack of 6 pcs. |
10610 | All | XL 3.5 V bulbs for ri-scope® retinoscope slit, pack of 6 pcs. |
Accessories
ART. NO. | REGION | DESCRIPTION |
---|---|---|
11449 | All | Operation lens for ri-scope® L Otoscope |
11564 | EU | Swivel magnifying glass for ri-scope® F.O. nasal speculum |
10965 | EU | Separate magnifying glass for ri-scope® Ophthalmoscope |
10960 | All | Bulb for pneumatic test |
10961 | All | Connector for pneumatic test |
10917 | EU | Case for ri-scope® E.N.T., black |
10921 | EU | Case for ri-scope® de luxe and praktikant, black |
10927 | EU | Case for ri-scope® retinoscope, black |
10929 | EU | Case for ri-vision, black |
10910 | EU | Case for ri-scope® L Otoscope, black |
10911 | EU | Case for ri-scope® L Ophthalmoscope, black |
10912 | EU | Case for ri-scope® L Oto-/Ophthalmoscope, black |
10915 | EU | Case for ri-scope® perfect, black |
10923 | EU | Case for Veterinary |
