All Pupil II Indirect Ophthalmoscope

The All Pupil II Indirect Ophthalmoscope offers high-contrast, clear images with the world’s leading Keeler optics. The All Pupil II has ergonomically adjustable lighting; in addition to the xenon version available up to now, it is currently available also in an innovative and high-performance LED version that is setting the standard.

Available in many versions

Available with either wall attachment and cable connected power supply for stationary use, or as a mobile version with high-performance battery pack attached to the belt or as a completely wireless version for absolute freedom of movement without compromise. In this version a balanced Li-ion battery pack is attached to the rear of the browband for best comfort while maintaining full lighting performance.

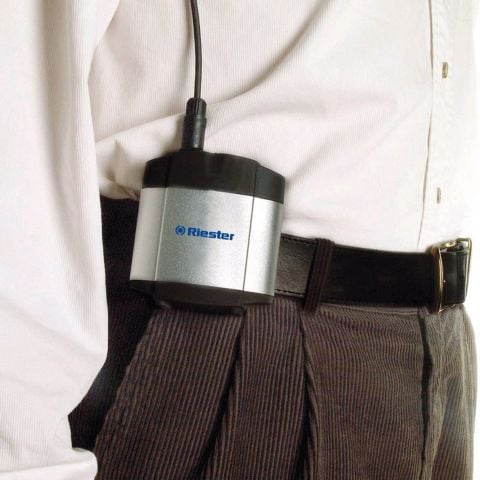

all-pupil-bag-480x

High-performance battery pack attached to the belt.

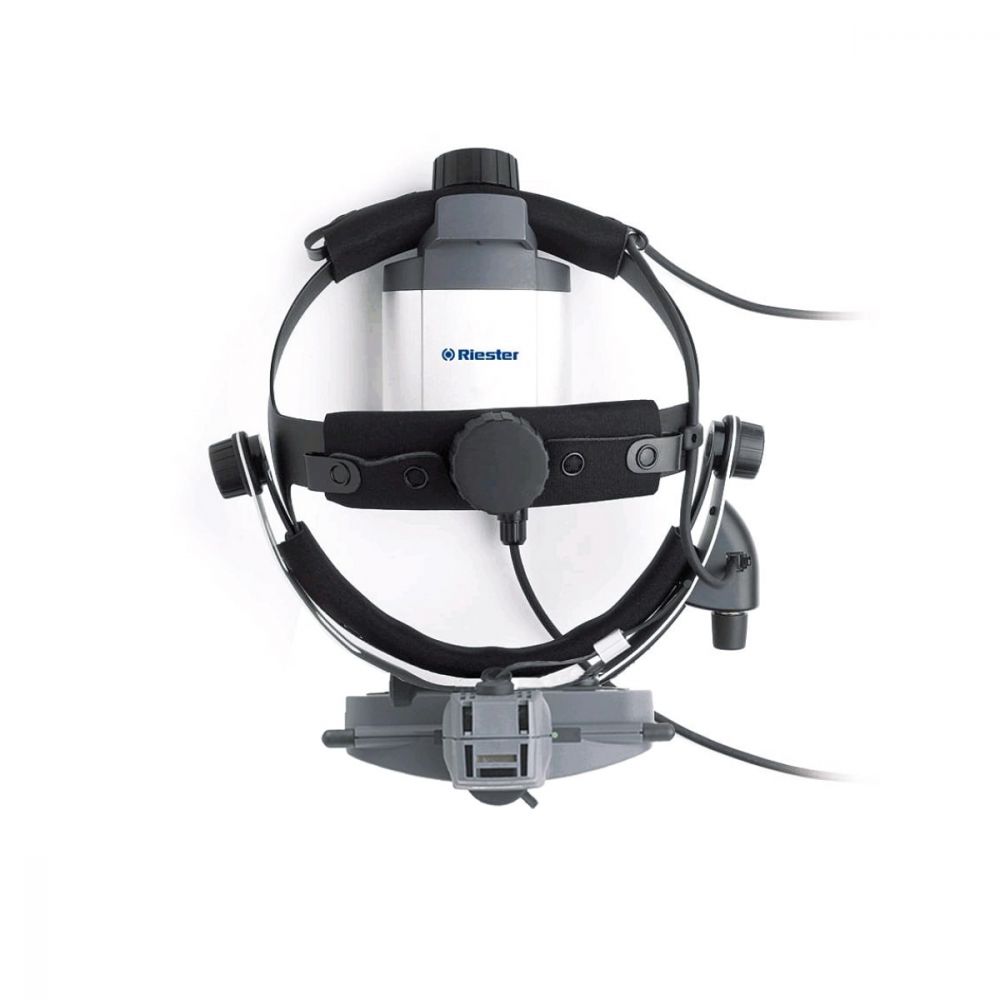

1-all-pupil-ii-1-x1000-1

All Pupil II Indirect Ophthalmoscope with power conversion

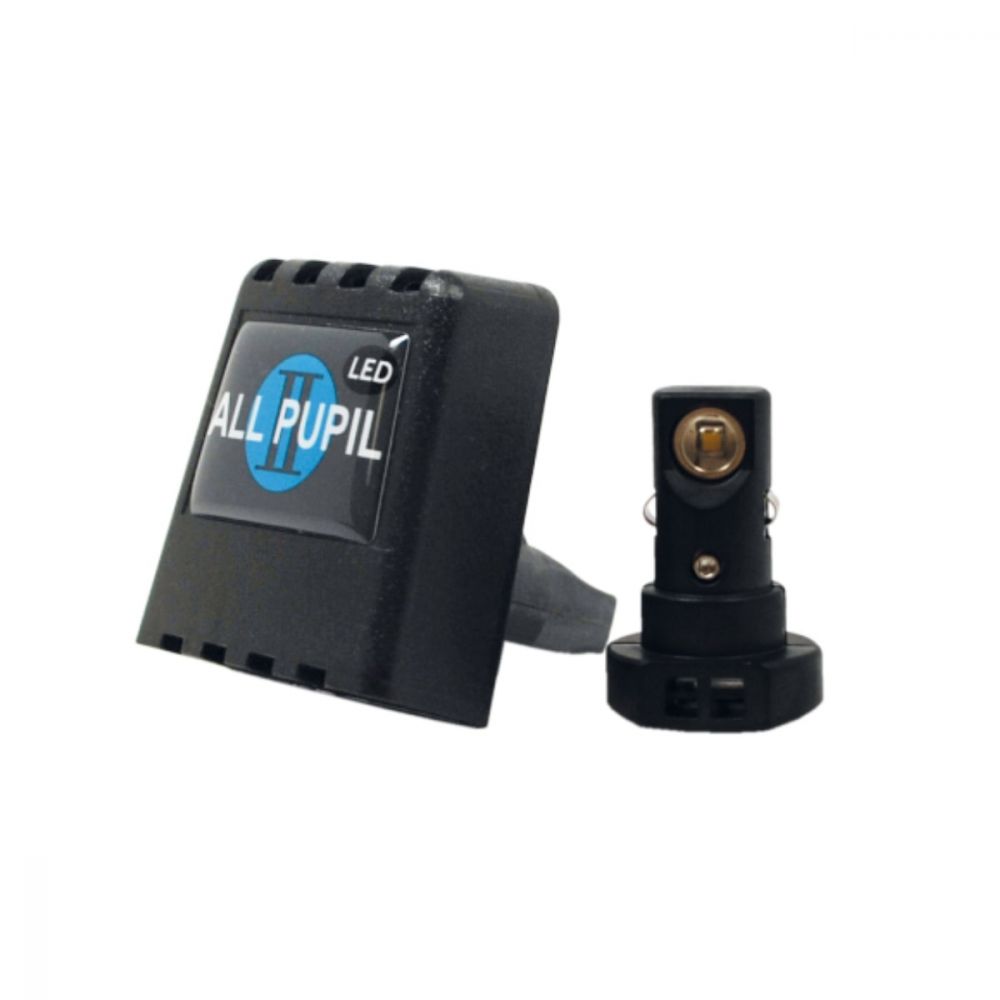

2-all-pupil-ii-led-x1000-1

All Pupil II LED and power conversion.

Features and benefits

  • Riester’s All Pupil II uses specially coated and individually laser-cut lens for best sight
  • Comes equipped with an especially soft and comfortable upholstered headband
  • An IR and UV filter is integrated for the patient’s best possible protection
  • Easily accessible xenon bulb or LED for working with as few interruptions as possible
  • LED bulb offers life expectancy of 10,000 hours
  • Adjustable light intensity
  • Includes high-performance lithium-ion battery
  • Cable connection or wireless power supply
  • 5 year warranty
  • The wide-angle diffuser eliminates shadows at the edge of the lens which enlarges the field of vision considerably (shown in image below)
fundus-display

Fundus display with a Volk lens: 1 with diffuser, 2 without diffuser

pupil-distance

Pupil distance: 47 – 75 mm

Product details



All Pupil II
Input mains data 100 - 240V, 50/60 Hz
Power supply rating 12 V, 2.5 Amps



All Pupil II LED
Voltage 6 V DC
Light output Minimum 1500 LUX 1
Ambient temperature 10 °C to 35 °C
Relative humidity 30% to 90% non-condensing
Air pressure 800 hPa - 1060 hPa
Shock (without packing) 10 g, duration 6 ms
Storage ambient temperature -10 °C to 55 °C
Storage relative humidity 10% to 95% non-condensing
Storage Air pressure 700 hPa - 1060 hPa
Vibration, sinusoidal 10 Hz to 500 Hz: 0.5 g
Shock 30 g, duration 6 ms
Bump 10 g, duration 6 ms

1: Measured at 440 mm from front window

Ordering information

All Pupil II

ART. NO. REGION DESCRIPTION
3990 All except US All Pupil II wireless with lithium battery pack, charging station
3990-400 All except US All Pupil II Xenon wireless with blue filter, Li-ion accu and charging base, w/o diffusor
3991 All except US All Pupil II cable connected
3991-400 All except US All Pupil II Xenon cable connected with blue filter
3992 All except US All Pupil II LED wireless with lithium-ion battery pack, charging station
3992-400 All except US All Pupil II LED wireless with blue filter, Li-ion accu and charging base, w/o diffusor
3993 All except US All Pupil II LED cable connected
3993-400 All except US All Pupil II LED cabel connected, with blue filter

All Pupil II Set

ART. NO. REGION DESCRIPTION
3994 All except US Set I - All Pupil II LED wireless with Li-ion accu, charging station
3994-400 All except US Set I - All Pupil II LED wireless with blue filter, Li-ion accu and charging base, w/o diffusor
3995 All except US Set I - All Pupil II Xenon wireless with Li-ion accu, charging station
3995-400 All except US Set I - All Pupil II Xenon wireless with blue filter, Li-ion accu and charging base, w/o diffusor
3996 All except US Set II - All Pupil II Xenon cable connected with portable battery pack
3996-400 All except US Set II - All Pupil II Xenon cable connected with blue filter, portable battery pack, w/o diffusor
3997 All except US Set III - All Pupil II Xenon cable connected with stationary wall attachment
3997-400 All except US Set III - All Pupil II Xenon cable connected with blue filter, wall mounted, w/o diffusor
3998 All except US Set II - All Pupil II LED cable connected with portable battery pack
3998-400 All except US Set II - All Pupil II LED cable connected with blue filter, portable battery pack, w/o diffusor
3999 All except US Set III - All Pupil II cable connected with stationary wall attachment
3999-400 All except US Set III - All Pupil II LED with cable, blue filter

Spare parts and accessories

ART. NO. REGION DESCRIPTION
12779 All except US LED for All Pupil II LED
12780 All except US Portable battery pack for cable connected All Pupil II
12781 All except US Stationary wall attachment for cable connected All Pupil II
12782 All except US All Pupil II teaching Mirror
12783 All except US All Pupil II XL bulbs (pack of 2 pcs.)
12784 All except US Large depressor for All Pupil II
12785 All except US Small depressor for All Pupil II
12786 All except US Fundus charts for All Pupil II
12787 All except US Carrier bag for All Pupil II
12944 All except US Mounting rail for brow bar
