Vet I Oto-/Ophthalmoscope
The Riester Vet I Oto-/Ophthalmoscope comes with operation otoscope, ophthalmoscope with accessories and spare lamps in impact-resistant case.
Vet I Oto-/Ophthalmoscope – details
- ri-scope® Operation otoscope Veterinary head

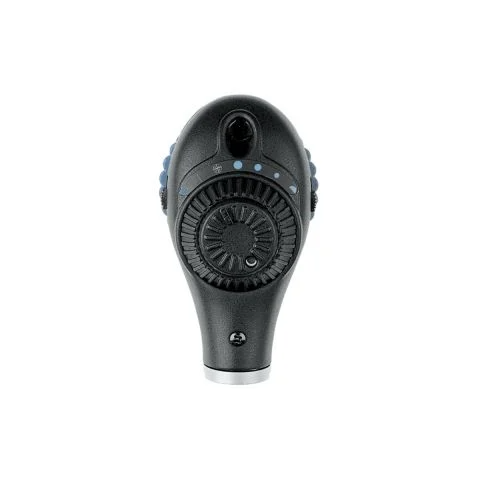

- ri-scope® L1 Ophthalmoscope Head
- Bayonet fitting on the heads for fast and secure attachment to the handle
- ri-scope® Operation Otoscope Veterinary Metal Specula
a) Unslotted, sterilisable at 134 °C for 10 minutes in steam sterilizer:
○ diameter 4 mm, 83 mm long
○ diameter 5 mm, 62 mm long
○ diameter 6 mm, 82 mm long
b) Slotted, sterilisable at 134 °C for 10 minutes in steam sterilizer:
○ diameter 7.5 mm, 68 mm long
○ diameter 9.4 mm, 92 mm long
-
2 spare lamps (Xenon 3.5 V lamp or Halogen 2.5 V lamp)
a) 1pc for the operation otoscope
b) 1pc for the ophthalmoscope
- Swivel lens
- Impact-resistant case
Image gallery
Otoscope Features and benefits
- Customer’s choice of Xenon 3.5 V lamp or Halogen 2.5 V lamp
- Swivel lens with 2.5x magnification
- Moveable, slotted speculum holder can be locked in any position
- Open design for unhindered use during examination and operation
- All-metal operation otoscope for long service life
- Reusable metal specula made of high-quality chrome-plated, corrosion-free metal
Ophthalmoscope Features and benefits
All Ophthalmoscopes Features:
- Optimized high-performance optics with aspherical condenser lens
- Parallel beam path
- Dust-proof lenses
- Large selection of power sources: handy and stable handles, practical chargers and well-conceived diagnostic stations
L1 Features:
- Dioptre wheel with 29 corrective lenses Plus 1-10, 12, 15, 20, 40 Minus 1-10, 15, 20, 25, 30, 35
- Easy-to-operate aperture hand-wheel with semi-circle, Small/medium/large circle fixation star, slit and red-free filter with contrast-enhancing effect.
- Includes filter wheel engageable for all apertures with symbol display, red-free filter.
Product Details
VET I Oto-/Ophthalmoscope | |
---|---|
Dimensions | Case : 230 x 140 x 46 mm |
Ambient temperature | 0 °C to 40 °C |
Relative humidity | 30% to 70% non-condensing |
Storage/ Transport ambient temperature | -10 °C to 55 °C |
Storage/ Transport relative humidity | 30% to 85% non-condensing |
Air pressure/ Transport relative humidity | 800 hPa - 1100 hPa |
The lamp for ri-scope® Operation Otoscope Veterinary | |
---|---|
ri-scope® Operation otoscope Veterinary HL 2.5 V | 2.5 V, 680 mA, mean life span 20 h |
ri-scope® Operation otoscope Veterinary XL 3.5 V | 3.5 V, 700 mA, mean life span 20 h |
The lamp for ri-scope® L Ophthalmoscope | |
---|---|
Ophthalmoscope 2.5 V XL | 2.5 V, 750 mA, mean life span 15 h |
Ophthalmoscope 3.5 V XL | 3.5 V, 690 mA, mean life span 15 h |
Ordering Information
vet I Oto-/Ophthalmoscope
ri-scope® Operation otoscope (veterinary), ri-scope® L1 Ophthalmoscope, Ear specula, 2 spare lamps, Swivel lens
ART. NO. | REGION | DESCRIPTION |
---|---|---|
3858 | All except US | HL 2.5 V/XL 2.5 V, C-handle for 2 alkaline-batteries, C-type or ri-accu® |
3861 | All except US | HL 2.5 V, AA-handle for 2 alkaline-batteries, AA-type or ri-accu® |
3859 | All except US | XL 3.5 V, C-handle for ri-accu® L |
3862 | All except US | XL 3.5 V, AA-handle for ri-accu® L |
ri-scope® Operation Otoscope Veterinary head
ART. NO. | REGION | DESCRIPTION |
---|---|---|
10541 | All except US | ri-scope® Operation otoscope Veterinary head HL 2.5 V |
10541-301 | All except US | ri-scope® Operation otoscope Veterinary head HL 2.5 V with anti-theft security |
10542 | All except US | ri-scope® Operation otoscope Veterinary head XL 3.5 V |
10542-301 | All except US | ri-scope® Operation otoscope Veterinary head XL 3.5 V with anti-theft security |
vet I Otoscope
ri-scope® Operation otoscope (veterinary), Ear specula,1 spare lamp, Swivel lens
ART. NO. | REGION | DESCRIPTION |
---|---|---|
3850 | All except US | HL 2.5 V, C-handle for 2 alkaline-batteries, C-type or ri-accu® |
3853 | All except US | HL 2.5 V, AA-handle for 2 alkaline-batteries, AA-type or ri-accu® |
3851 | All except US | XL 3.5 V, C-handle for ri-accu® L |
3854 | All except US | XL 3.5 V, AA-handle for ri-accu® L |
vet de luxe I
ri-scope® Operation otoscope (Veterinary), ri-scope® L1 Ophthalmoscope, ri-scope® F.O. tongue blade holder, ri-scope® F.O. nasal speculum, Ear specula, 3 spare lamps (for VET Otoscope, Ophthalmoscope and one for tongue and/or nasal), Swivel lens
ART. NO. | REGION | DESCRIPTION |
---|---|---|
3866 | All except US | XL 2.5 V (for ophthalmoscope, tongue and nasal)/HL 2.5 V (Vet operations Otoscope), C-handle for 2 alkaline-batteries, C-type or ri-accu® |
3869 | All except US | XL 2.5 V (for ophthalmoscope, tongue and nasal)/HL 2.5 V (Vet operations Otoscope), AA-handle for 2 alkaline-batteries, AA type or ri-accu® |
3867 | All except US | XL 3.5 V, C-handle for ri-accu® L |
3870 | All except US | XL 3.5 V, AA-handle for ri-accu® L |
Spare parts and accessories
Specula
ART. NO. | REGION | DESCRIPTION |
---|---|---|
10881 | All except US | Metal Specula Ø 4 mm, 83 mm long |
10880 | All except US | Metal Specula Ø 5 mm, 62 mm long |
10882 | All except US | Metal Specula Ø 6 mm, 82 mm long |
10883 | All except US | Metal Specula Ø 7.5 mm, 68 mm long, slotted |
10884 | All except US | Metal Specula Ø 9.4 mm, 92 mm long, slotted |
Battery handles
ART. NO. | REGION | DESCRIPTION |
---|---|---|
10642 | All | AA type battery handle with rheotronic® for 2 batteries AA or ri-accu® L |
10425 | All | C type battery handle, rheostat, chrome plated w/o bore, for 2 C cell batteries |
10429 | All except US | C type battery handle, rheostat, chrome plated, for 2 C cell batteries or ri-accu® |
10426 | All | Upper handle part with rheostat, chrome plated |
10679 | All | Battery handle cover, chrome plated w/o bore |
11682 | All except US | Battery handle cover, chrome plated with bore |
10670 | All | C type battery handle, rheotronic®, chrome plated, for 2 C cell batteries or ri-accu® |
10704 | All except US | USB Battery Handle Type C, 3.5 V with rechargeable Li-ion Battery and Charger, EU |
10704.001 | AU | USB Battery Handle Type C, 3.5 V with rechargeable Li-ion Battery and Charger, AU |
10704.002 | UK | USB Battery Handle Type C, 3.5 V with rechargeable Li-ion Battery and Charger, UK |
10704.003 | US | USB Battery Handle Type C, 3.5 V with rechargeable Li-ion Battery and Charger, US |
Charging base
ART. NO. | REGION | DESCRIPTION |
---|---|---|
10700 | All except US | ri-charger® 2.5 V/3.5 V/ 100-240 V, black with wall bracket, EU |
10701 | All | ri-charger® 2.5 V/3.5 V/ 100-240 V, black with wall bracket, with US adapter |
10705 | All except US | ri-charger® L 3.5 V / 100-240 V, white with wall bracket, EU |
10706 | All | ri-charger® L 3.5 V / 100-240 V, white with wall bracket, with US adapter |
10707 | All except US | Plug-in charger for rechargeable Li-Ion battery 3.5 V ri-accu® L [10694] for C type battery handle, EU plug w/o battery |
10708 | All | Plug-in charger with rechargeable Li-Ion battery 3.5 V ri-accu® L [10694] for C type battery handle, EU plug |
10710 | All except US | Wall support ri-charger®, with screws and plugs |
10711 | All except US | Handle AA type reduction insert for ri-charger® |
10712 | All except US | Ear specula compartment cover for ri-charger® |
10713 | All except US | Ear specula compartment cover for ri-charger® L |
Batteries
ART. NO. | REGION | DESCRIPTION |
---|---|---|
10690 | All | ri-accu® L rechargeable Li-Ion battery type AA 3.5 V for AA-type battery handle and ri-charger® L |
10691 | All | ri-accu® L rechargeable Li-Ion battery type C 3.5 V for C-type battery handle and ri-charger® L |
10694 | All | ri-accu® L rechargeable Li-Ion battery (plug in handle) type C 3.5 V for C type battery handle |
10680 | All | ri-accu® rechargeable NIMH battery type AA 2.5 V for AA-type battery handles |
10681 | All | ri-accu® rechargeable NIMH battery type C 2.5 V for C type battery handles |
10682 | All except US | ri-accu® rechargeable NIMH battery type C 3.5 V for C type battery handles |
10685 | All except US | Alkaline battery type AA 1.5 V, pack of 4 pcs. |
10686 | All except US | Alkaline battery type C 1.5 V, pack of 2 pcs. |
10692 | All | ri-accu®L rechargeable battery, 3.5 V |
10699 | All | ri-accu® USB rechargeable battery, 3.5 V |
Bulb
ART. NO. | REGION | DESCRIPTION |
---|---|---|
10605 | All except US | XL 2.5 V bulbs for ri-scope® L1/L2/L3 Ophthalmoscope and ri-derma, pack of 6 pcs. |
10625 | All except US | LED 3.5 V bulb for ri-scope® L2/L3 Otoscope, ri-derma, light conductor, nasal speculum and tongue blade holder. |
10608 | All except US | XL 3.5 V bulbs for ri-scope® L1/L2/L3 Ophthalmoscope and ri-derma, pack of 6 pcs. |
10600 | All except US | XL 2.5 V bulbs for ri-scope® L2/L3 Otoscope, Light conductor, nasal speculum and tongue blade holder, pack of 6 pcs. |
10602 | All except US | HL 2.5 V bulbs for ri-scope® Operation otoscope (human/ veterinary), pack of 6 pcs. |
10609 | All except US | XL 3.5 V bulbs for ri-scope® Operation otoscope (human/ veterinary), pack of 6 pcs. |
Accessories
ART. NO. | REGION | DESCRIPTION |
---|---|---|
11449 | All | Operation lens for ri-scope® L Otoscope |
11564 | All except US | Swivel magnifying glass for ri-scope® F.O. nasal speculum |
10965 | All except US | Separate magnifying glass for ri-scope® Ophthalmoscope |
10960 | All | Bulb for pneumatic test |
10961 | All | Connector for pneumatic test |
10923 | All except US | Case for Veterinary |
