ri-sat® / ri-sat® BT Pulse Oximeter

Oxygen binds to hemoglobin in red blood cells when moving through the lungs. It is transported throughout the body as arterial blood. A pulse oximeter uses two frequencies of light (red and infrared) to determine the percentage (%) of hemoglobin in the blood that is saturated with oxygen. The percentage is called blood oxygen saturation, or SpO2. A pulse oximeter also measures and displays the pulse rate at the same time it measures the SpO2 level.

ri-sat® (left) and ri-sat® BT (right)

Image gallery

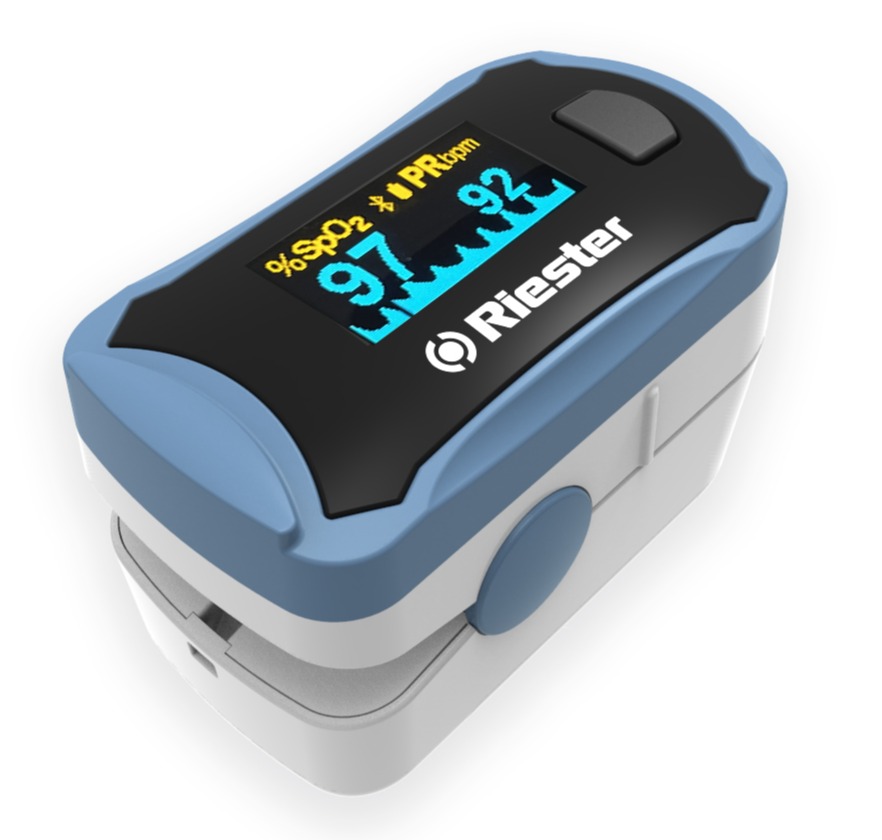

ri-satBT-1-1

ri-sat® BT - Bluetooth® version

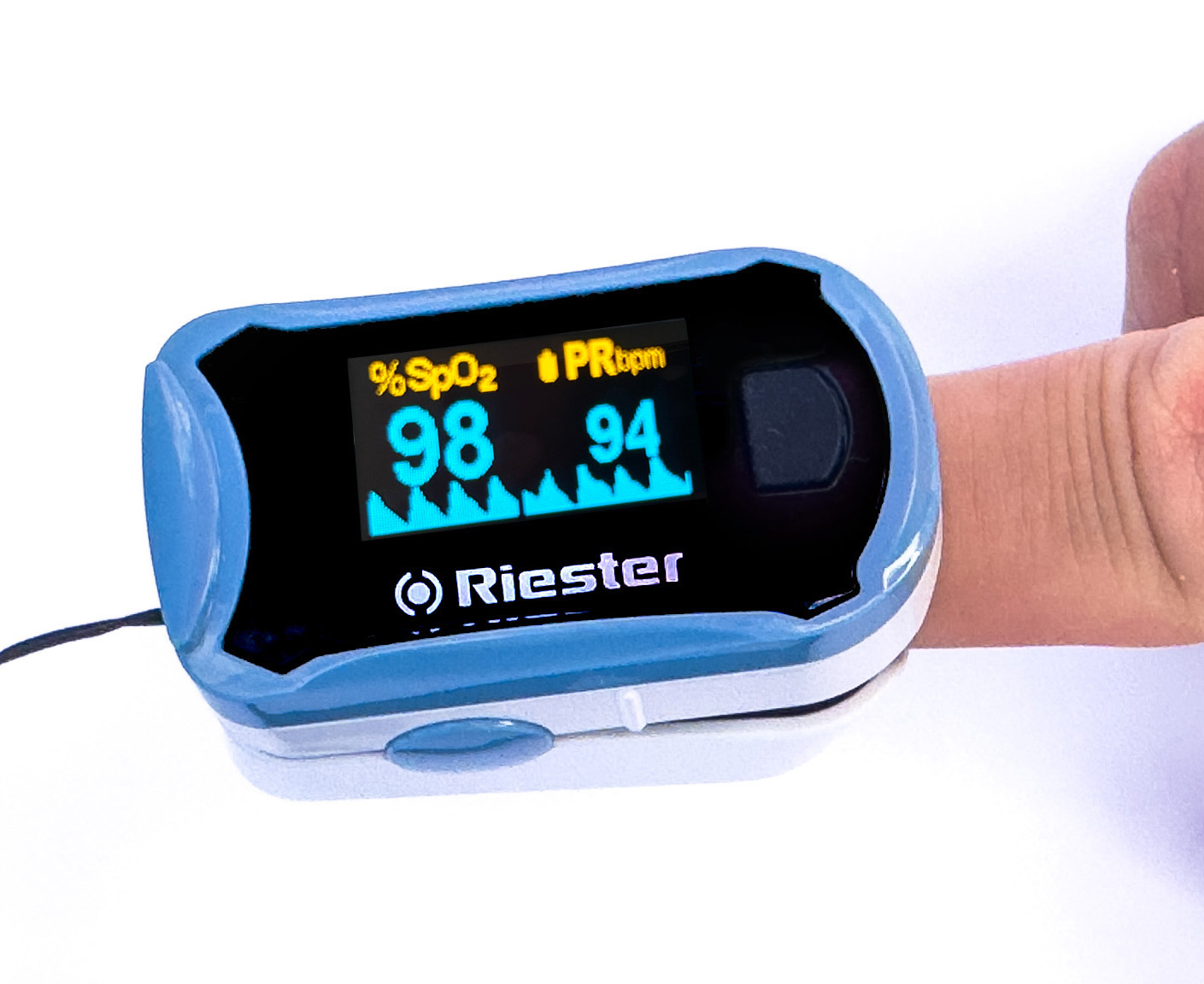

Riester ri-sat photo in use 01 web

ri-sat® - Non-Bluetooth® version

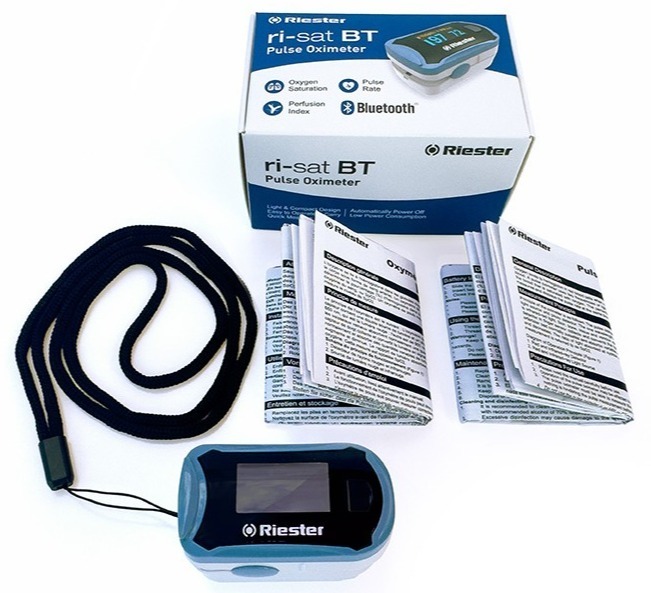

Riester ri-sat unboxing

ri-sat® BT unboxing
(Included: Finger pulse oximeter, easy-read instructions, wrist strap, 2 AAA batteries)

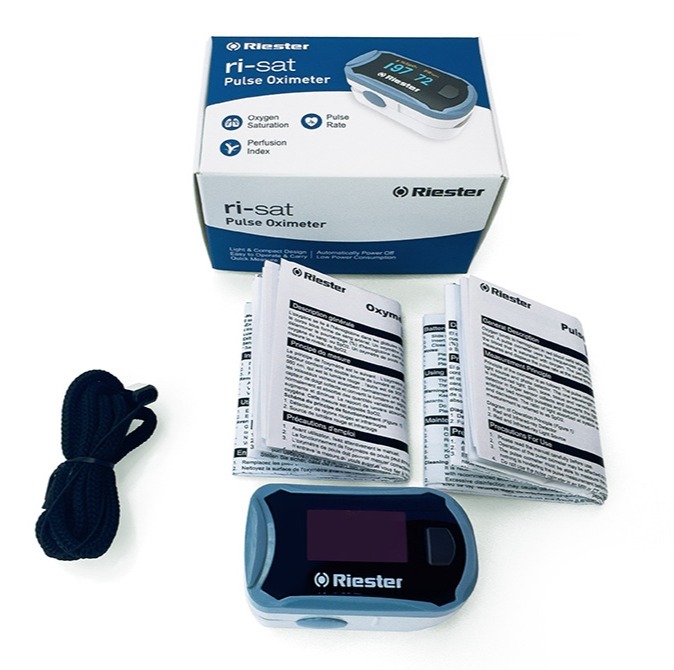

Riester ri-sat unboxing

ri-sat® unboxing
(Included: Finger pulse oximeter, easy-read instructions, wrist strap, 2 AAA batteries)

Features and Benefits

  • Simple to operate and convenient to carry

  • Small volume, light weight and low power consumption

  • 4-direction display for flexible patient or caregiver viewing

  • 7 display modes

  • Adjustable display brightness

  • Colour OLED display - SpO2, PR, PI (perfusion index), Pulse bar and waveform

  • Automatic power-off function

  • Designed for dependable everyday clinical use with IP22-rated protection

  • Available in Bluetooth® version

  • Wrist strap included

Product details

ri-sat® / ri-sat® BT
Parameters SpO2, PR, PI (perfusion index), Pulse bar and waveform
SpO2
          Measurement range
70 % - 100 %
          Measurement accuracy 70 % - 100 %±2 %
          Resolution  1 %
 Pulse Rate
          Measurement range  30 - 250 bpm
          Measurement accuracy 30 - 99 bpm ±2 bpm; 100 - 250 bpm ±2 %
 Perfusion Index
          Measurement range 0.3 - 20 %
          Measurement accuracy 0.1 %
Environmental
          Operating temperature  5 °C to 40 °C
          Storage temperature -25 °C to 70 °C
          Operating humidity 15 - 93 %, non-condensing
          Storage Humidity ≤93 % non-condensing
Power supply      2 × AAA (LR03) 1.5 V alkaline batteries
Battery life  Approx. 20 hours continuous use
Dimensions [L] x [W] x [H] 58 x 33 x 37 mm
Weight  32 g (excluding batteries)

Ordering information

ri-sat® / ri-sat® BT Pulse Oximeter

ART. NO. REGION DESCRIPTION
1941 All* ri-sat® BT Pulse Oximeter with Bluetooth®
1942 All* ri-sat® Pulse Oximeter



*Product availability may vary by country. Please contact your local Riester distributor for availability in your region.
