Riester - ri-magic® HPLED examination light

ri-magic® HPLED examination light

ri-magic® HPLED examination light is a high-performance examination light with the most modern LED technology, similar to daylight. The ri-magic® HPLED is equipped with a focusing device on the front of the lamp head to precisely size the illuminated examination area. Highly flexible and long special arm can be bent in any direction and used as a wall-mounted model, as a desk model with universal clamp or as a mobile lamp with a practical wheeled chassis.

The mobile model is supplied with a particularly steady, heavy and anti-static stand. Two of the five castors can be locked. The wall and desk models can be quickly and easily mounted to any conventional wall rail in the clinic using universal clamps.

Lighting for diagnostic examinations and surgical interventions

The ri-focus® LED supports the doctor in carrying out diagnostic examinations and surgical interventions. The instruments serve the trained doctor or specialist as an aid in the detection, diagnosis, monitoring, treatment or relief of illnesses, injuries or disabilities. The product is usually used in a hospital or in a doctor's office, etc. The lifespan of the LED is set at 50,000 hours.

ri-magic^® HPLED Head

ri-magic^® HPLED Desk

ri-magic^® HPLED Wall

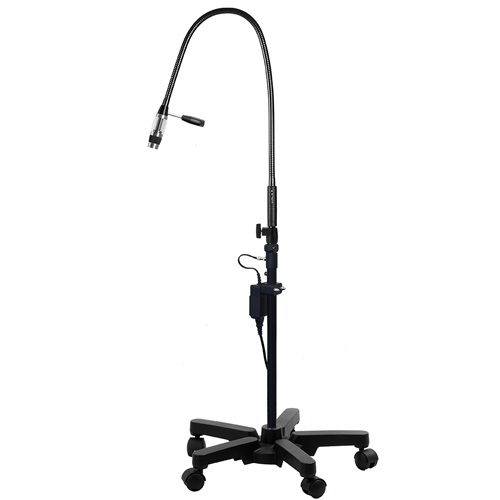

ri-magic^® HPLED Power pack fixed to mobile stand

ri-magic^® HPLED Mobile

Features and benefits

The focusing device at the front of the light head allows exact adjustment of the size of the illuminated examination area.
Highly flexible, long special arm can be bent in all directions, the light remains fixed in the chosen position.
Significantly less heating and energy loss.
Simple to use handle with rheostat for infinitely variable regulation of light intensity.
Wide-range power cord for 230 V/120 V.
Available with plugs to suit the electrical outlets in your country upon request.
Power supply mounted to the pole (optional).
Available with clamp, wall mount or mobile base.

Product details

Dimensions


Length of the examination light	without a tripod and mobile base	1250 mm
Lamp head	diameter	45 mm
Height stand	with mobile base	700 mm

Lamp for ri-magic^® HPLED


Technical data of the lamp for ri-magic^® HPLED	5700 Kelvin CRI 93 4,6W

Light field


Distance	1000 mm	800 mm	600 mm	400 mm	200 mm
Lux max. ¹	25.000	35.000	60.000	130.000	>200.000
Circle of light max. Ø	500 mm	400 mm	320 mm	230 mm	130 mm
Circle of light min. Ø	80 mm	60 mm	50 mm	35 mm	20 mm

1: Brightness at maximum intensity setting, tolerance +/-20%

Further details


Power adapter	5V 3Ah 15W
Ambient temperature	0° to +40 °C
Relative Humidity	30% to 70% non-condensing
Storage/ Transport Ambient temperature	-5 ° to +50 °C
Storage/ Transport relative Humidity	10% to 85% non-condensing

Ordering information

ri-magic^® HPLED

ART. NO.	REGION	DESCRIPTION
6250	EU	ri-magic^® HPLED Mobile, AC adapter 230V/120V
6250.001	UK	ri-magic^® HPLED Mobile, AC adapter 230V/120V with 3-pin connector
6250.002	US	ri-magic^® HPLED Mobile, AC adapter 230V/120V with US connector
6250.003	AU	ri-magic^® HPLED Mobile, AC adapter 230V/120V with AU connector
6252	EU	ri-magic^® HPLED Mobile, power pack fixed to mobile stand, AC adapter 230V/120V
6252.001	UK	ri-magic^® HPLED Mobile, British power pack fixed to mobile stand, AC adapter 230V/120V
6252.002	US	ri-magic^® HPLED Mobile, US power pack fixed to mobile stand, AC adapter 230V/120V
6252.003	AU	ri-magic^® HPLED Mobile, Australian power pack fixed to mobile stand, AC adapter 230V/120V
6240	EU	ri-magic^® HPLED Wall, AC adapter 230V/120V
6240.001	UK	ri-magic^® HPLED Wall, AC adapter 230V/120V with 3-pin connector
6240.002	US	ri-magic^® HPLED Wall, AC adapter 230V/120V with US connector
6240.003	AU	ri-magic^® HPLED Wall, AC adapter 230V/120V with Australian connector
6230	EU	ri-magic^® HPLED Desk, universal clamp, AC adapter 230V/120V
6230.001	UK	ri-magic^® HPLED Desk, universal terminals, AC adapter 230V/120V with 3-pin connector
6230.002	US	ri-magic^® HPLED Desk, universal terminals, AC adapter 230V/120V with US connector
6230.003	AU	ri-magic^® HPLED Desk, universal terminals, AC adapter 230V/120V with Australian connector

Spare parts and accessories

ART. NO.	REGION	DESCRIPTION
11340	All	AC adapter 230/120 V
11284	EU	Plug in charger 230 V
11286	EU	Plug in charger 120 V
11353	EU	Wall support
11354	All	Universal clamp
11343	All	Mobile stand base 5 caster and tube with adapter
11344	All	Adapter part between tripod and lamp arm
12850	EU	EU adapter for power supply
12851	UK	UK adapter for power supply
12849	US	US adapter for power supply
12852	AU	AU adapter for power supply
