ri-focus® LED examination headlight

ri-focus® LED examination headlight is wireless high-performance headlamps, developed and manufactured in Germany. The LED headlamps provides optimal illumination, guaranteed optimal viewing conditions, at the same time low heat development and significantly less energy loss as well.

The headband is infinitely adjustable, offering high level of wear-comfort for practitioners without fatiguing operation even after long periods of use. The headband with integrated battery compartment can be ordered either for lithium CR 123A batteries or NiMH batteries with plug-in charger 230V / 120V.

Table Of Contents

Lighting for diagnostic examinations and surgical interventions

Image gallery

1-ri-focus-headlight-x1000

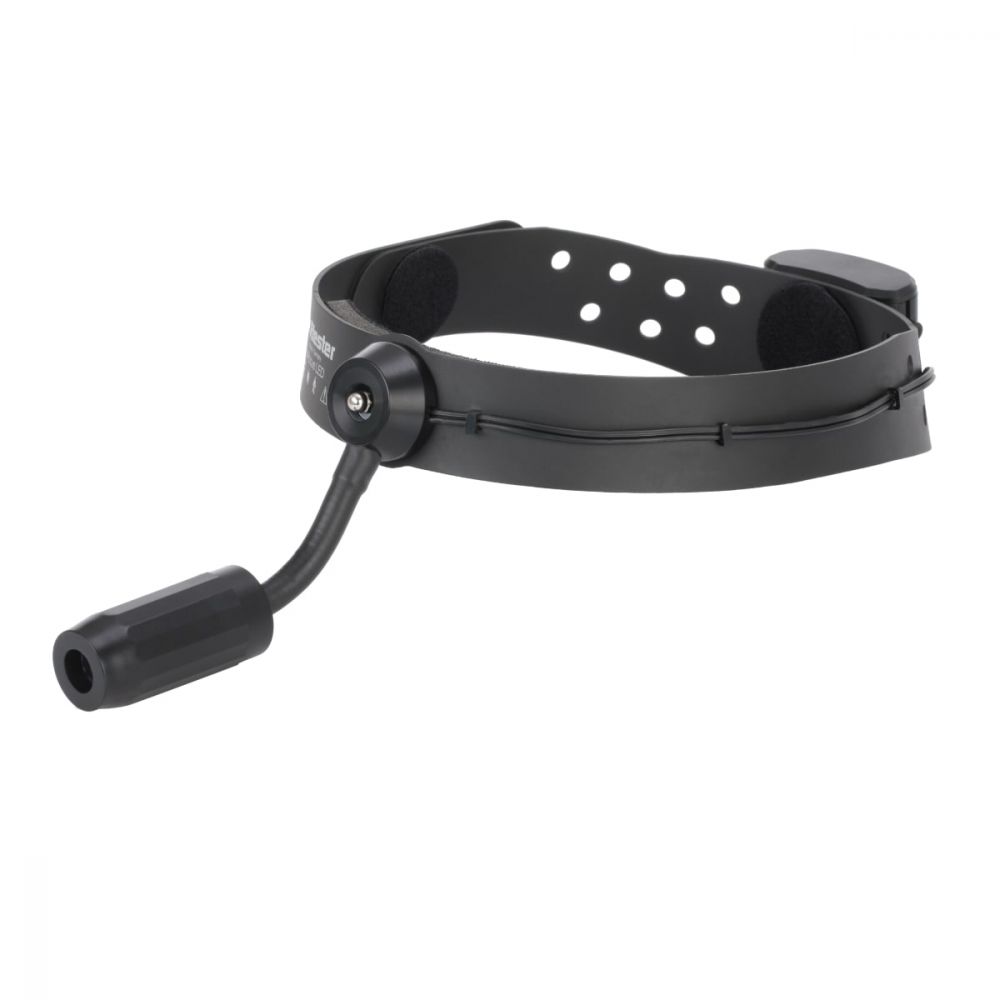

ri-focus® LED headlight

2-ri-focus-led-1-x1000

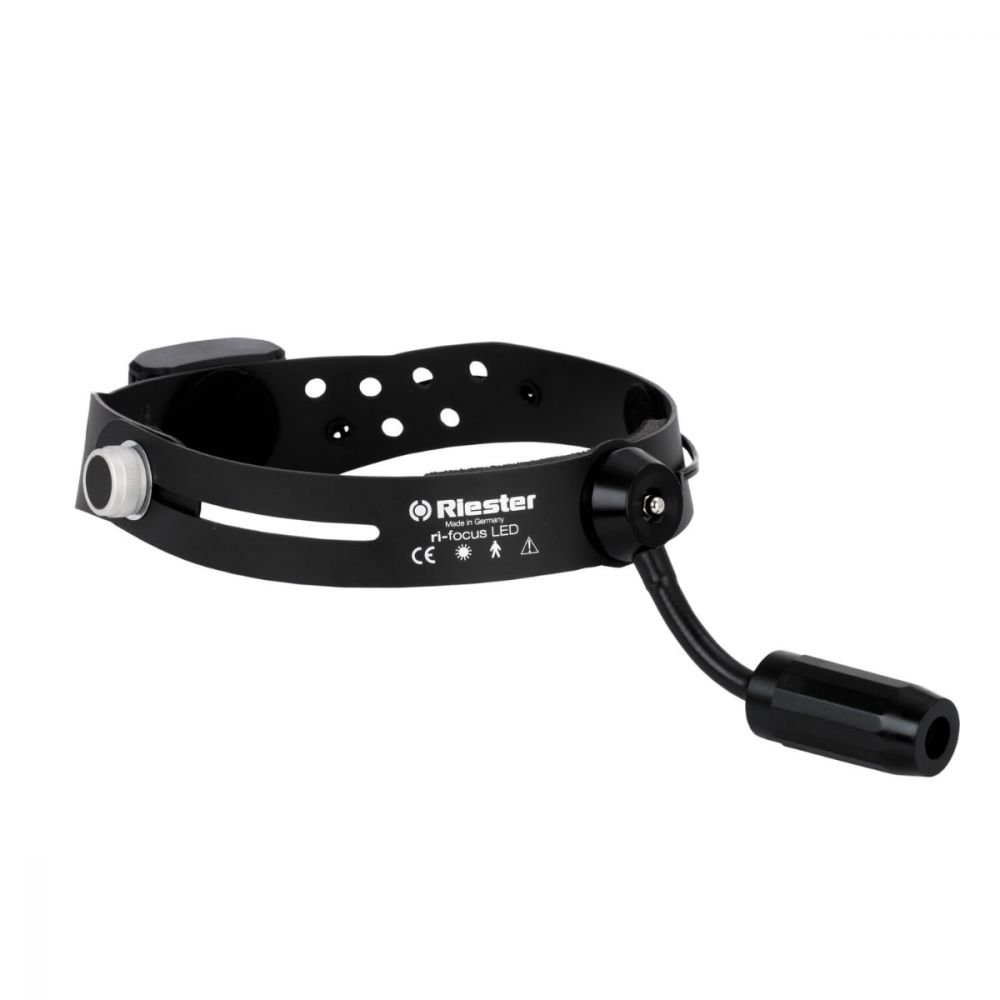

ri-focus® LED headlight adjustable headband attached foam tape and velcro points

3-ri-focus-led-2-x1000

ri-focus® LED headlight adjustable headband.

4-ri-focus-battery-x1000

ri-focus® LED headlight with battery compartment

5-ri-focus-battery-2-x1000

ri-focus® LED battery compartment with charger

6-ri-focus-battery-3-x1000

ri-focus® LED charger, battery, foam tape and velcro points

Features and benefits

  • Headband version, with built-in battery compartment and integral charge jack, can be optionally fitted with 2 lithium batteries size CR 123 A, 4 batteries size AAA (alkaline) or 4 rechargeable batteries size AAA (NiMH).
  • Headband cleaning made easy by inner, removable and washable padding.
  • Particularly comfortable with balanced, infinitely adjustable headband.
  • Use without any hindering cables.
  • On/off switch on battery compartment.
  • Charge jack for plug-in charger integrated in battery compartment.
  • Focusable LED lamp at a distance of 400 mm / in approx. Ø 40 mm / - Ø 200 mm, infinitely adjustable.
  • White LED, 1 Watt, 5.700 Kelvin, 6 V.
  • 10.000 Lux at 400mm distance and 23.000 Lux at 200mm distance.
  • Battery operation: approx. 4 hrs. with lithium batteries, approx. 90 min. with alkaline batteries Type AAA.
  • Rechargeable battery operation: approx. 90 min. with fully charged battery.
  • The on and off switch is located on the battery compartment

Product details

Dimensions


Max. Headband diameter approx. 200 mm
Min. Headband diameter approx. 160 mm
Lamp head diameter 29 mm
Length of lamp head 62.50 mm
Length of lamp arm with lamp head approx. 135 mm

Weight


without batteries 210 g
with CR 123 A lithium batteries 242 g
with rechargeable AAA batteries 259 g

Lamp for ri-focus


Technical data of the lamp for ri-focus 5700 Kelvin CRI 93 4.6 W

Light field


Distance 400 mm / 200 mm
Lux max. 10.000 / 23.000
Circle of light max. Ø 200 mm / 120 mm
Circle of light min. Ø 40 mm / 30 mm

Further details


Plug-in charging device 5.8V 0.25A 50/60 Hz
Ambient temperature 0° to +40 °C
Relative Humidity 30% to 70% non-condensing
Storage/ Transport Ambient temperature -5 ° to +50 °C
Storage/ Transport relative Humidity 10% to 85% non-condensing

Ordering information

ri-focus® LED

ART. NO. REGION DESCRIPTION
6090 EU ri-focus® LED with lithium disposable CR 123 A batteries (2 pcs.)
6091 EU ri-focus® LED with rechargeable NiMH AAA batteries (4 pcs.) and plug in charger 230 V
6092 EU ri-focus® LED with rechargeable NiMH AAA batteries (4 pcs.) and plug in charger 120 V

Spare parts and accessories

ART. NO. REGION DESCRIPTION
11295 EU Head band, black with battery compartment
11302 EU LED lamp, pack of 1 pc.
11287 EU Lithium disposable CR 123 A batteries (2 pcs.)
11288 EU AAA type rechargeable NiMH batteries (4 pcs.)
12680 EU Battery compartment cover for lithium CR 123A
12681 EU Battery compartment cover for NiMH batteries AAA
11284 EU Plug in charger 230 V
11286 EU Plug in charger 120 V
11289 EU Foam tape 120 mm long
11293 EU Velcro points Ø 35 mm
11294 EU Velcro points Ø 47mm
