ri-scope® Operation Otoscope Veterinary

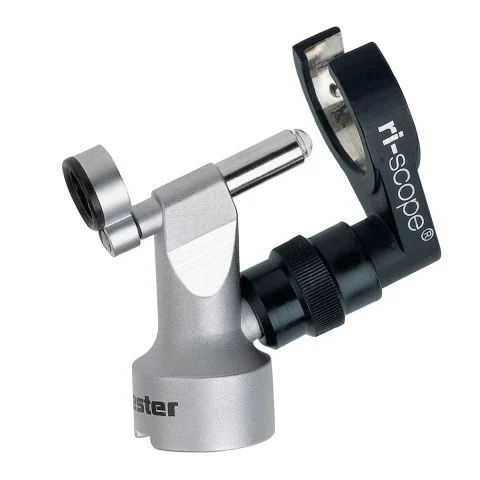

ri-scope® Operation Otoscope Veterinary – details

Magnifying glass
Lamp
Reusable ear specula
Bayonet fitting to quickly switch instrument heads

Image gallery

Features and benefits

Customer’s choice of Xenon 3.5V lamp or Halogen 2.5V lamp
Swivel lens with 2.5x magnification
Moveable speculum holder that can be fixed in any position
Open design for unhindered use during examination and operation
Otoscope is made of metal and speculum holder is made of impact resistant plastic offering a long service life
For use with reusable metal specula
- High quality model made of chrome-plated, corrosion-free metal
- Disinfection and sterilisation can be carried out in the normal way
- Matte inner surfaces reduce the risk of reflections during examinations
- Slotted models: Optimum instrument guide provided by special edges on opening

Product details

ri-scope^® Operation Otoscope Veterinary


Dimensions
Ambient temperature	0° to +40° C
Relative humidity	30% to 70% non-condensing
Storage/ Transport ambient temperature	-10° to +55°C
Storage/ Transport relative humidity	30% to 85% non-condensing
Air pressure/ Transport relative humidity	800 hPa - 1100 hPa

The lamp for ri-scope^® Operation Otoscope Veterinary


ri-scope^® Operation otoscope Veterinary HL 2.5 V	2.5 V, 680 mA, mean life span 20 h
ri-scope^® Operation otoscope Veterinary XL 3.5 V	3.5 V, 700 mA, mean life span 20 h

Ordering information

ri-scope^® Operation Otoscope Veterinary head

Art. No.	Region	Description
10541	EU	ri-scope^® Operation otoscope Veterinary head HL 2.5 V
10541-301	EU	ri-scope^® Operation otoscope Veterinary head HL 2.5 V with anti-theft security
10542	EU	ri-scope^® Operation otoscope Veterinary head XL 3.5 V
10542-301	EU	ri-scope^® Operation otoscope Veterinary head XL 3.5 V with anti-theft security

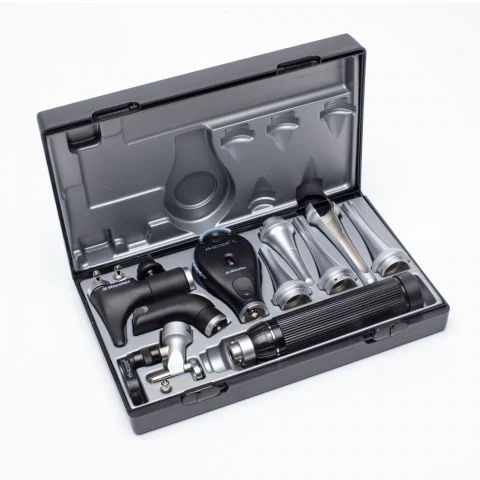

vet de luxe I

ri-scope^® Operation otoscope (Veterinary), ri-scope^® L1 Ophthalmoscope, ri-scope^® F.O. tongue blade holder, ri-scope^® F.O. nasal speculum, Ear specula, 3 spare lamps (for VET Otoscope, Ophthalmoscope and one for tongue and/or nasal), Swivel lens

Art. No.	Region	Description
3866	EU	XL 2.5 V (for ophthalmoscope, tongue and nasal)/HL 2.5 V (Vet operations Otoscope), C-handle for 2 alkaline-batteries, C-type or ri-accu^®
3869	EU	XL 2.5 V (for ophthalmoscope, tongue and nasal)/HL 2.5 V (Vet operations Otoscope), AA-handle for 2 alkaline-batteries, AA type or ri-accu^®
3867	EU	XL 3.5 V, C-handle for ri-accu^® L
3870	EU	XL 3.5 V, AA-handle for ri-accu^® L

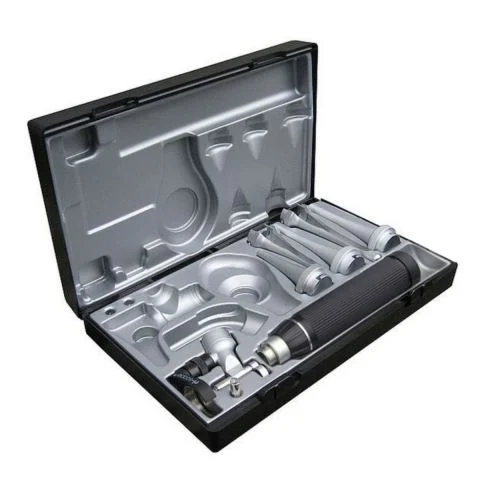

vet I Otoscope

ri-scope^® Operation otoscope (veterinary), Ear specula,1 spare lamp, Swivel lens

Art. No.	Region	Description
3850	EU	HL 2.5 V, C-handle for 2 alkaline-batteries, C-type or ri-accu^®
3853	EU	HL 2.5 V, AA-handle for 2 alkaline-batteries, AA-type or ri-accu^®
3851	EU	XL 3.5 V, C-handle for ri-accu^® L
3854	EU	XL 3.5 V, AA-handle for ri-accu^® L

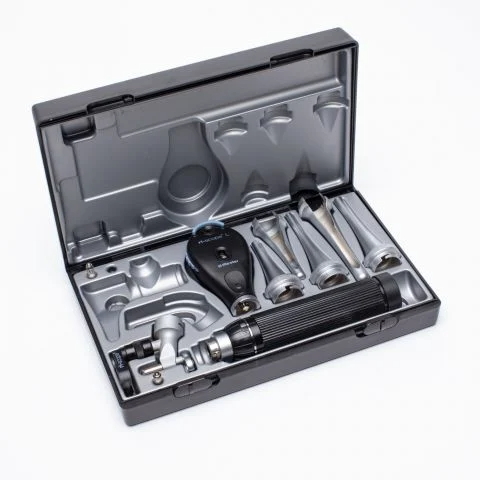

vet I Oto-/Ophthalmoscope

ri-scope^® Operation otoscope (veterinary), ri-scope^® L1 Ophthalmoscope, Ear specula, 2 spare lamps, Swivel lens

Art. No.	Region	Description
3858	EU	HL 2.5 V/XL 2.5 V, C-handle for 2 alkaline-batteries, C-type or ri-accu^®
3861	EU	HL 2.5 V, AA-handle for 2 alkaline-batteries, AA-type or ri-accu^®
3859	EU	XL 3.5 V, C-handle for ri-accu^® L
3862	EU	XL 3.5 V, AA-handle for ri-accu^® L

Spare parts and accessories

Specula

Art. No.	Region	Description
10881	EU	Metal Specula Ø 4 mm, 83 mm long
10880	EU	Metal Specula Ø 5 mm, 62 mm long
10882	EU	Metal Specula Ø 6 mm, 82 mm long
10883	EU	Metal Specula Ø 7.5 mm, 68 mm long, slotted
10884	EU	Metal Specula Ø 9.4 mm, 92 mm long, slotted

Battery handles

Art. No.	Region	Description
10642	All	AA type battery handle with rheotronic^® for 2 batteries AA or ri-accu^® L
10425	All	C type battery handle, rheostat, chrome plated w/o bore, for 2 C cell batteries
10429	EU	C type battery handle, rheostat, chrome plated, for 2 C cell batteries or ri-accu^®
10426	All	Upper handle part with rheostat, chrome plated
10679	All	Battery handle cover, chrome plated w/o bore
11682	EU	Battery handle cover, chrome plated with bore
10670	All	C type battery handle, rheotronic^®, chrome plated, for 2 C cell batteries or ri-accu^®
10704	EU	USB Battery Handle Type C, 3.5 V with rechargeable Li-ion Battery and Charger, EU
10704.001	AU	USB Battery Handle Type C, 3.5 V with rechargeable Li-ion Battery and Charger, AU
10704.002	UK	USB Battery Handle Type C, 3.5 V with rechargeable Li-ion Battery and Charger, UK
10704.003	US	USB Battery Handle Type C, 3.5 V with rechargeable Li-ion Battery and Charger, US

Charging base

Art. No.	Region	Description
10700	EU	ri-charger^® 2.5 V / 3.5 V / 230V, wall support
10701	All	ri-charger^® 2.5 V / 3.5 V / 120V, wall support
10705	EU	ri-charger^® L 2.5 V / 3.5 V / 230V, wall support
10706	All	ri-charger^® L 2.5 V / 3.5 V / 120V, wall support
10707	EU	Plug-in charger for rechargeable Li-Ion battery 3.5V ri-accu^® L [10694] for C type battery handle, EU plug w/o battery
10708	All	Plug-in charger with rechargeable Li-Ion battery 3.5V ri-accu^® L [10694] for C type battery handle, EU plug
10710	EU	Wall support ri-charger^®, with screws and plugs
10711	EU	Handle AA type reduction insert for ri-charger^®
10712	EU	Ear specula compartment cover for ri-charger^®
10713	EU	Ear specula compartment cover for ri-charger^® L

Batteries

Art. No.	Region	Description
10690	All	ri-accu^® L rechargeable Li-Ion battery type AA 3.5 V for AA-type battery handle and ri-charger^® L
10691	All	ri-accu^® L rechargeable Li-Ion battery type C 3.5 V for C-type battery handle and ri-charger^® L
10694	All	ri-accu^® L rechargeable Li-Ion battery (plug in handle) type C 3.5 V for C type battery handle
10680	All	ri-accu^® rechargeable NIMH battery type AA 2.5 V for AA-type battery handles
10681	All	ri-accu^® rechargeable NIMH battery type C 2.5 V for C type battery handles
10682	EU	ri-accu^® rechargeable NIMH battery type C 3.5 V for C type battery handles
10685	EU	Alkaline battery type AA 1.5 V, pack of 4 pcs.
10686	EU	Alkaline battery type C 1.5 V, pack of 2 pcs.
10692	All	ri-accu^® L rechargeable battery, 3.5 V
10699	All	ri-accu^® USB rechargeable battery, 3.5 V

Bulb

Art. No.	Region	Description
10605	EU	XL 2.5 V bulbs for ri-scope^® L1/L2/L3 Ophthalmoscope and ri-derma, pack of 6 pcs.
10625	EU	LED 3.5 V bulb for ri-scope^® L2/L3 Otoscope, ri-derma, light conductor, nasal speculum and tongue blade holder.
10608	EU	XL 3.5 V bulbs for ri-scope^® L1/L2/L3 Ophthalmoscope and ri-derma, pack of 6 pcs.
10600	EU	XL 2.5 V bulbs for ri-scope^® L2/L3 Otoscope, Light conductor, nasal speculum and tongue blade holder, pack of 6 pcs.
10602	EU	HL 2.5 V bulbs for ri-scope^® Operation otoscope (human/ veterinary), pack of 6 pcs.
10609	EU	XL 3.5 V bulbs for ri-scope^® Operation otoscope (human/ veterinary), pack of 6 pcs.

Accessories

Art. No.	Region	Description
11449	All	Operation lens for ri-scope^® L Otoscope
11564	EU	Swivel magnifying glass for ri-scope^® F.O. nasal speculum
10965	EU	Separate magnifying glass for ri-scope^® Ophthalmoscope
10960	All	Bulb for pneumatic test
10961	All	Connector for pneumatic test
10923	EU	Case for Veterinary
