ri-sat® Pedi Pulse Oximeter

ri-sat® Pedi is a pulse oximeter which measures pulse rate (PR), perfusion index (PI) and waveform along with SpO₂. The pulse oximeter easily clips onto the patient’s finger, preferably the index finger. The measurements are easy to read on the LCD display screen in both dark and lit settings. This small, mobile device is suitable for use in hospitals, clinics as well as long-term care settings or home.

ri-sat® Pedi

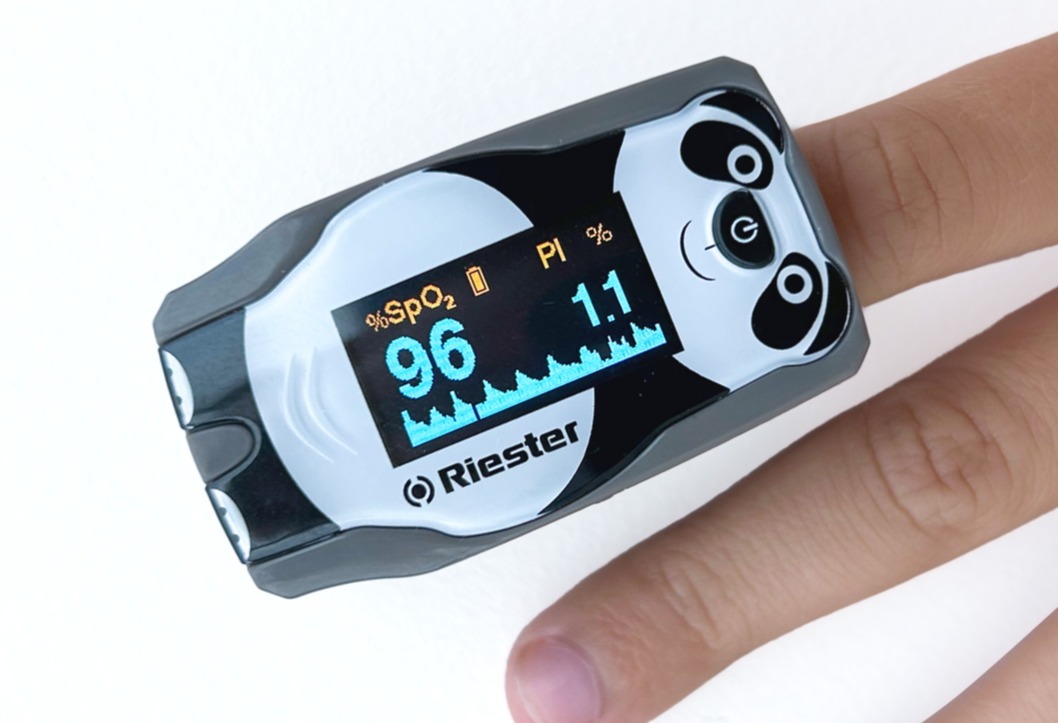

ri-sat® Pedi in use

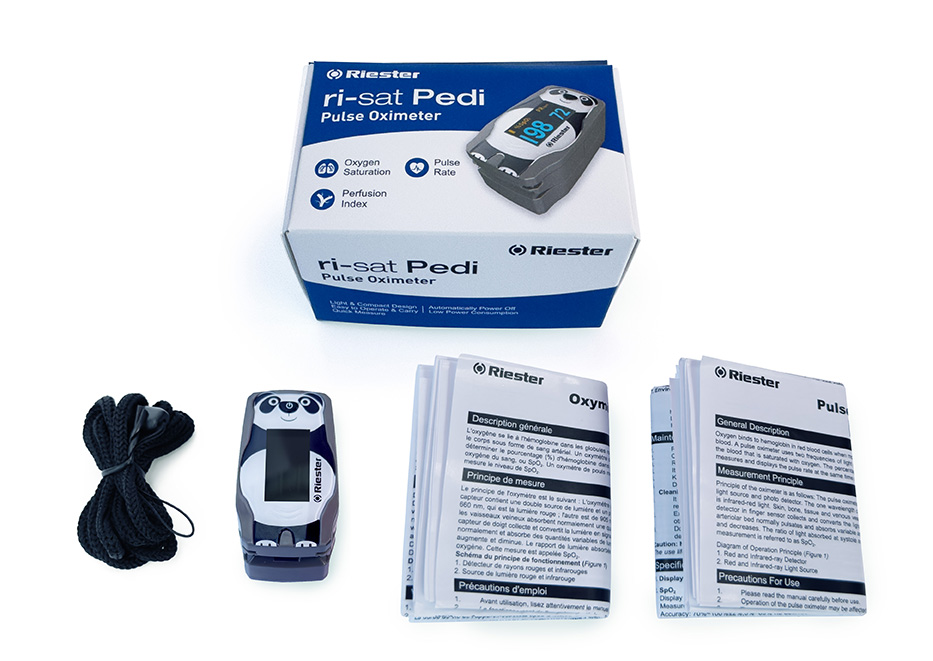

ri-sat® Pedi unboxing
(Included: Finger pulse oximeter, easy-read instructions, wrist strap, 2 AAA batteries)

Features and Benefits

Pediatric fingertip pulse oximeter suitable for children, with spot-check monitoring for adult patients
Optimised light intensity technology supporting accurate readings across varying skin pigmentation
4-direction display for flexible patient or caregiver viewing
7 display modes and Level 1-10 adjustable brightness
Adjustable display brightness
Colour LCD display- SpO2, PR, PI (perfusion index), Pulse bar and waveform
Automatic power-off function
Wrist strap included
Designed for dependable everyday clinical use with IP22-rated protection

Product details

ri-sat® Pedi
Parameters		SpO2, PR, PI (perfusion index), Pulse bar and waveform
SpO2
Measurement range		70 % - 100 %
Measurement accuracy		70 % - 100 % ±2 %
Resolution		1%
Pulse Rate
Measurement range		30 - 250 bpm
Measurement accuracy		30 - 99 bpm ±2 bpm; 100 - 250 bpm ±2 %
Perfusion Index
Measurement range		0.1 - 20 %
Resolution		0.1 %
Environmental
Operating temperature		5 °C to 40 °C
Storage temperature		-25 °C to 70 °C
Operating humidity		15 - 93 %, non-condensing
Storage Humidity		≤93 %, non-condensing
Energy supply		2 × AAA (LR03) 1.5 V alkaline batteries
Battery life		Approx. 18 hours continuous use
Dimensions [L] x [W] x [H]		50 x 29 x 29 mm
Weight		20 g (excluding batteries)

Ordering information

ri-sat® Pedi Pulse Oximeter

ART. NO.	REGION	DESCRIPTION
1943	All*	ri-sat® Pedi Pulse Oximeter

*Product availability may vary by country. Please contact your local Riester distributor for availability in your region.
