Riester ri-dispo Macintosh with handle
Riester ri-dispo Miller with handle
Features and benefits
- With integrated Fiber Optics (F.O.) light conductor.
- Particularly easy to clean, as there are no external conductors and openings to become contaminated!
- Outstanding light intensity through XL + LED xenon illumination and strong fiber bundles.
- Blade design for simple intubation.
- All blades are compatible with handles complying with ISO 7376.
ri-dispo
MACINTOSH F.O. BLADE
The clear design of the Macintosh Fiber Optic blade with no edges or corners.
Exceptionally high light intensity with XL + LED illumination.
MACINTOSH 1,2,3 and 4
Adults
ri-dispo
MILLER F.O. BLADE
The flat design of the F.O. blade improves visibility considerably and simplifies intubation.
Atraumatic blade design.
MILLER 0,1,2,3 and 4
Children; Adults
Product details
| Dimensions | ri-dispo MACINTOSH blade 90 mm; 116 mm; 134 mm; 153 mm ri-dispo MILLER blade 81 mm; 105 mm; 156 mm; 196 mm; 210 mm |
| The lamp for Laryngoscope | Lamp, small, warm light 2.7 V 300 mA, mean life span 20 h Lamp, large, warm light 2.7 V 300 mA, mean life span 20 h Lamp, cold light XL 2.5 V 680 mA, mean life span 20 h Lamp, cold light XL 3.5 V 700 mA, mean life span 20 h Lamp, cold light LED 2.5 V 120 mA, mean life span 20000 h Lamp, cold light LED 3.5 V 280 mA, mean life span 20000 h |
| Ambient temperature | 0 ° to +40 °C |
| Relative humidity | 15% to 90% non-condensing |
| Storage/ Transport temperature | -20°C to 50°C |
| Storage/ Transport relative humidity | 15% to 85% non-condensing |
| Air pressure | 620 hPa - 1060 hPa |
Ordering information
ri-dispo blade
| Art. No. | Region | Description |
|---|---|---|
| 12290 | All | ri-dispo Macintosh 1, pack of 20 pcs. |
| 12291 | All | ri-dispo Macintosh 2, pack of 20 pcs. |
| 12292 | All | ri-dispo Macintosh 3, pack of 20 pcs. |
| 12293 | All | ri-dispo Macintosh 4, pack of 20 pcs. |
| 12294 | All | ri-dispo Miller 0, pack of 20 pcs. |
| 12295 | All | ri-dispo Miller 1, pack of 20 pcs. |
| 12296 | All | ri-dispo Miller 2, pack of 20 pcs. |
| 12297 | All | ri-dispo Miller 3, pack of 20 pcs. |
| 12298 | All | ri-dispo Miller 4, pack of 20 pcs. |
Handles
| Art. No. | Region | Description |
|---|---|---|
| 12300 | All | C-handle XL 2.5 V, diam. 28 mm, rechargeable for blades with integrated or detachable F.O. |
| 12301 | All | C-handle XL 3.5 V, diam. 28 mm, rechargeable for blades with integrated or detachable F.O. |
| 12302 | All | AA-handle XL 2.5 V, diam. 19 mm, rechargeable for blades with integrated or detachable F.O. |
| 12318 | EU | AA-handle XL 3.5 V, diam. 19 mm, rechargeable for blades with integrated or detachable F.O. |
| 12314 | All | C-handle LED 3.5 V, diam. 28 mm, rechargeable for blades with integrated or detachable F.O. |
| 12316 | All | AA-handle LED 3.5 V, diam. 19 mm, rechargeable for blades with integrated or detachable F.O. |
| 12305 | All | C-handle XL 2.5 V, diam. 28 mm, non-rechargeable for blades with integrated or detachable F.O. |
| 12309 | All | AA-handle XL 2.5 V, diam. 32 mm (short), non-rechargeable for blades with F.O. |
| 12306 | All | AA-handle XL 2.5 V, diam. 19 mm, non-rechargeable for blades with integrated or detachable F.O. |
| 12312 | All | AA-handle LED 2.5 V, diam. 19 mm, non-rechargeable for blades with integrated or detachable |
| 12311 | All | C-handle LED 2.5 V, diam. 28 mm, non-rechargeable for blades with integrated or detachable F.O. |
| 12317 | All | AA-handle LED 2.5 V, diam. 32 mm (short), non-rechargeable for blades with F.O. |
| 12330 | EU | Plug-in handle XL 3.5 V, rechargeable, 230 V |
| 12331 | EU | Plug-in handle XL 3.5 V, rechargeable, 120 V |
| 12332 | EU | Plug-in handle LED 3.5 V, rechargeable, 230 V |
| 12333 | EU | Plug-in handle LED 3.5 V, rechargeable, 120 V |
| 12303 | EU | C-handle diam. 28 mm, for blades ri-standard rechargeable w/o F.O. |
| 12304 | EU | AA-handle diam. 19 mm, for blades ri-standard rechargeable w/o F.O. |
| 12307 | All | C-handle diam. 28 mm, non-rechargeable for blades ri-standard w/o F.O. |
| 12308 | All | AA-handle diam. 19 mm, non-rechargeable for blades ri-standard w/o F.O. |
| 12310 | EU | AA-handle diam. 32 mm (short), non-rechargeable for blades w/o F.O. |
Batteries
| Art. No. | Region | Description |
|---|---|---|
| 10690 | All | ri-accu®L rechargeable Li-Ion battery type AA 3.5 V for AA-type battery handle and ri-charger®L |
| 10691 | All | ri-accu®L rechargeable Li-Ion battery type C 3.5 V for C-type battery handle and ri-charger®L |
| 10694 | All | ri-accu®L rechargeable Li-Ion battery (plug in handle) type C 3.5 V for C type battery handle |
| 10681 | All | ri-accu® rechargeable NIMH battery type C 2.5 V for C type battery handles |
Charger
| Art. No. | Region | Description |
|---|---|---|
| 10700 | EU | ri-charger® 2.5 V / 3.5 V / 230V, wall support |
| 10701 | All | ri-charger® 2.5 V / 3.5 V / 120V, wall support |

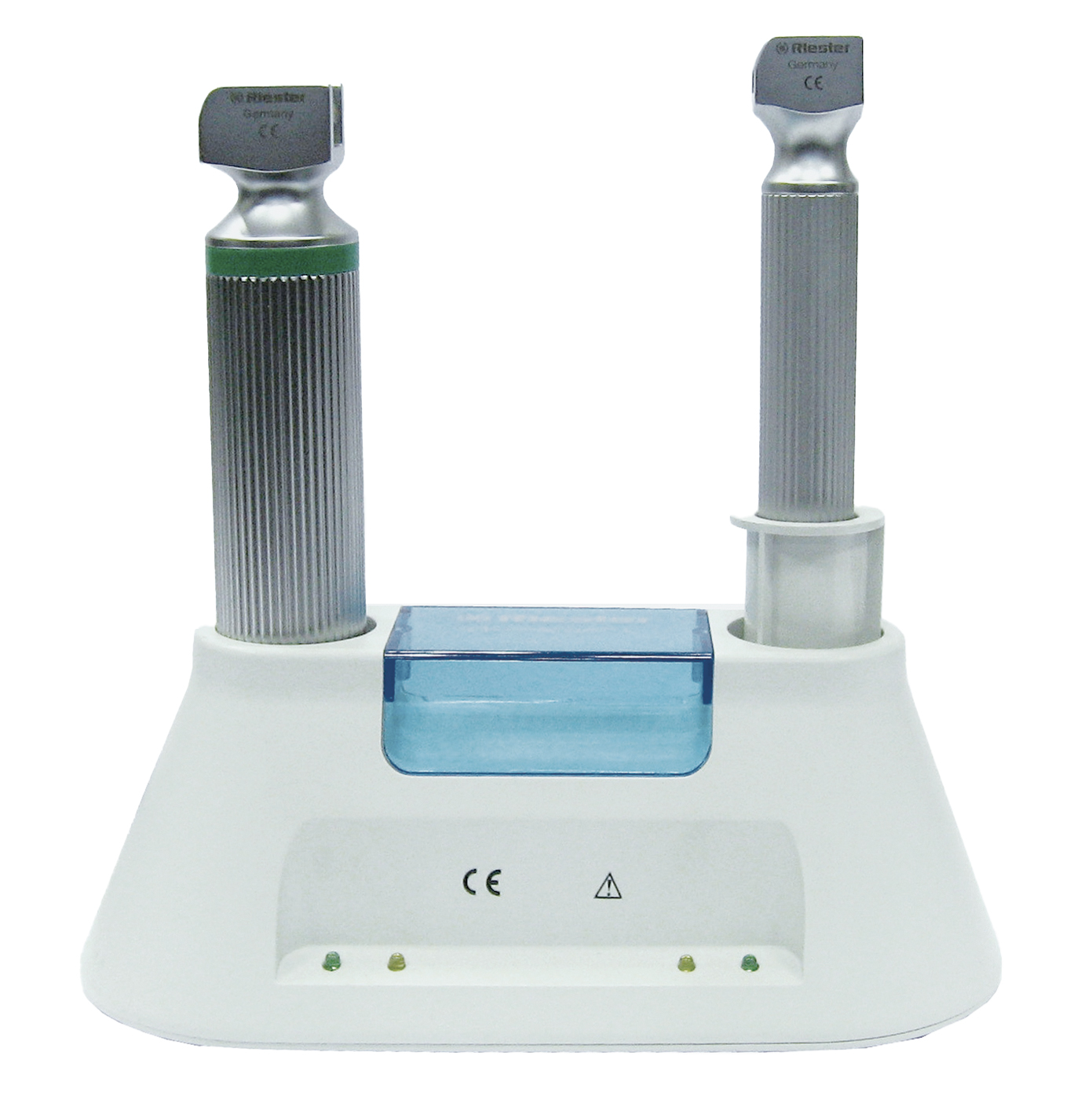

| 10705 | EU | ri-charger® L 2.5 V / 3.5 V / 230V, wall support |
| 10706 | All | ri-charger® L 2.5 V / 3.5 V / 120V, wall support |
| 10707 | EU | Plug-in charger for rechargeable Li-Ion battery 3.5V ri-accu® L [10694] for C type battery handle, EU plug w/o battery |
| 10708 | EU | Plug-in charger with rechargeable Li-Ion battery 3.5V ri-accu® L [10694] for C type battery handle, EU plug |
| 10710 | EU | Wall support ri-charger®, with screws and plugs |
| 10711 | EU | Handle AA type reduction insert for ri-charger® |
| 10712 | EU | Ear specula compartment cover for ri-charger® |
| 10713 | EU | Ear specula compartment cover for ri-charger® L |
Spare parts and accessories
| Art. No. | Region | Description |
|---|---|---|
| 12320 | All | Bulb LED 2.5 V, 1 pc. |
| 12321 | All | Bulb LED 3.5 V, 1 pc. |
| 11428 | All | Bulbs XL 2.5 V, pack of 6 pcs. |
| 11429 | All | Bulbs XL 3.5 V, pack of 6 pcs. |
| 11380 | All | Bulbs 2.7 V vacuum lamp (small) w/o spring, for ri-standard Miller 00-1, pack of 6 pcs. |
| 11381 | All | Bulbs 2.7 V vacuum lamp (large) w/o spring, for ri-standard Miller no.2-4, Macintosh 0-5, pack of 6 pcs. |
| 10685 | EU | Alkaline battery type AA 1.5 V, pack of 4 pcs. |
| 10686 | EU | Alkaline battery type C 1.5 V, pack of 2 pcs. |
| 10690 | All | ri-accu® L rechargeable Li-Ion battery type AA 3.5 V for AA-type battery handle and ri-charger® L |
| 10680 | All | ri-accu® rechargeable NIMH battery type AA 2.5 V for AA-type battery handles |
| 10691 | All | ri-accu® L rechargeable Li-Ion battery type C 3.5 V for C-type battery handle and ri-charger® L |
| 10681 | All | ri-accu® rechargeable NIMH battery type C 2.5 V for C type battery handles |
| 10682 | EU | ri-accu® rechargeable NIMH battery type C 3.5 V for C type battery handles |
| 10694 | All | ri-accu® L rechargeable Li-Ion battery (plug in handle) type C 3.5 V for C type battery handle |
| 11389 | All | Pouch for up to 5 blades and 1 handle, black |
| 11393 | EU | Hard protective carrying case for up to 12 blades 1 handle |
| 11385 | EU | Hard protective case for ri-modul Miller |
| 11386 | EU | Hard protective case for ri-modul Miller baby |
| 11392 | EU | Hard protective case for ri-integral, ri-modul, ri-standard Macintosh baby |
| 11391 | EU | Hard protective case for Sets ri-integral, ri-modul, ri-standard Macintosh |
| 11387 | EU | Hard protective case for ri-integral, ri-standard Miller |
| 11388 | EU | Hard protective case for ri-integral, ri-standard Miller baby |
