ri-scope® F.O. Light Conductor

One of the many accessory heads avaiable for the ri-scope® L handle, this is the fibre optic LED light conductor head.

Designed for use with ri-former® Diagnostic Station

Riester F.O. light conductor head Photo (1)

ri-scope® F.O. light conductor

Riester F.O. light conductor Photo (4)

ri-scope® F.O. light conductor with handle

Riester praktikant set web

ri-scope® praktikant

4-ri-scope-l-de-luxe-set-480x

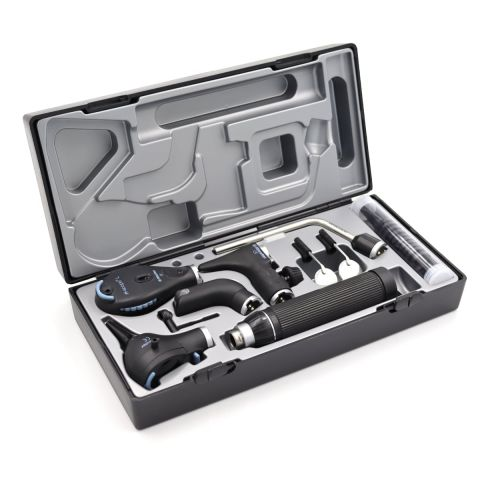

ri-scope® de luxe

Features and benefits

  • High quality fiber optic light wave conductor for optimal illumination and transmission of the light
  • Offers the illumination for throat and laryngeal areas
  • Bayonet fitting for quick and secure attachment to the handle, fitting all Riester handle options
  • Chrome-plated metal, durable and sturdy
  • Bulbs can be quickly replaced at the base of the instrument head

Product details

ri-scope® F.O. Light Conductor
Dimension Light Dimension
The lamp for ri-scope® F.O. Light Conductor Light Conductor XL 2.5 V
2.5 V 750 mA mean life span 16.5 h
Light Conductor XL 3.5 V
3.5 V 720 mA mean life span 15 h
Light Conductor LED 3.5 V
3.5 V 300 mA mean life span up to 100,000 h
Ambient temperature 0 °C to 40 °C
Relative humidity 30% to 70% non-condensing
Storage/ Transport ambient temperature -10 °C to 55 °C
Storage/ Transport relative humidity 10% to 95% non-condensing
Air pressure/ Transport relative humidity 800 hPa - 1100 hPa

Ordering information

ri-scope® F.O. light conductor

ART. NO. REGION DESCRIPTION
10538 All except US ri-scope® F.O. light conductor, XL 2.5 V
10539 All except US ri-scope® F.O. light conductor, XL 3.5 V
10576 All except US ri-scope® F.O. light conductor, LED 3.5 V
10539-301 All except US ri-scope® F.O. light conductor, XL 3.5 V with anti-theft security
10576-301 All ri-scope® F.O. light conductor, LED 3.5 V with anti-theft security

ri-scope® praktikant

ri-scope® L Otoscope, ri-scope® F.O. nasal speculum, ri-scope® F.O. tongue blade holder and ri-scope® F.O. bent arm illuminator

ART. NO. REGION DESCRIPTION
3765 EU ri-scope® L3, XL 2.5 V/ Battery handle, Type C with rheotronic® for 2 alkaline batteries type C or ri-accu®
3766 EU ri-scope® L3, LED 2.5 V/ Battery handle, Type C with rheotronic® for 2 alkaline batteries type C or ri-accu®
3766-550 EU ri-scope®L3, LED 3.5 V/ Battery handle, Type C with rheotronic® for ri-accu® L



ri-scope® de luxe

ri-scope® L Oto-/Ophthalmoscope, ri-scope® F.O. nasal speculum, ri-scope® F.O tongue blade holder, bent arm illuminator, 2 laryng. mirrors, 1 spare lamp XL

ART. NO. REGION DESCRIPTION
3771 EU ri-scope® L3 Oto-, XL 2.5 V / L2 Ophthalmoscope, XL 2.5 V/ Battery handle, Type C with rheotronic® for 2 alkaline batteries type C or ri-accu®
3772 EU ri-scope® L3 Oto-, LED 2.5 V / L2 Ophthalmoscope, LED 2.5 V/ Battery handle, Type C with rheotronic® for 2 alkcaline batteries type C or ri-accu®
3772-203 EU ri-scope® L3 Oto-, LED 2.5 V / L2 Ophthalmoscope, XL 2.5 V/ Battery handle, Type C with rheotronic® for 2 alkcaline batteries type C or ri-accu®
3772-550 EU ri-scope® L3 Oto-, LED 3.5 V / L2 Ophthalmoscope, XL 3.5 V/ Battery handle, Type C with rheotronic® for ri-accu® L
3820-203 EU ri-scope® L3 Oto-, LED 3.5 V / L2 Ophthalmoscope, LED 3.5 V/ Battery handle, Type C with rheotronic® for ri-accu® L



Spare parts and accessories

Batterie handles
ART. NO. REGION DESCRIPTION
10642 All AA type battery handle with rheotronic® for 2 batteries AA or ri-accu® L
10670 All except US C type battery handle, rheotronic®, chrome plated, for 2 C cell batteries or ri-accu®
10704 All except US USB Battery Handle Type C, 3.5 V with rechargeable Li-ion Battery and Charger, EU
10704.001 AU USB Battery Handle Type C, 3.5 V with rechargeable Li-ion Battery and Charger, AU
10704.002 UK USB Battery Handle Type C, 3.5 V with rechargeable Li-ion Battery and Charger, UK
10704.003 US USB Battery Handle Type C, 3.5 V with rechargeable Li-ion Battery and Charger, US
Charging base
ART. NO. REGION DESCRIPTION
10700 EU ri-charger® 2.5 V/3.5 V/ 100-240 V, black with wall bracket, EU (for ri-accu® rechargeable NIMH battery)
10701 EU ri-charger® 2.5 V/3.5 V/ 100-240 V, black with wall bracket, with US adapter (for ri-accu® rechargeable NIMH battery)
10705 EU ri-charger® L 3.5 V / 100-240 V, white with wall bracket, EU (for ri-accu® L rechargeable Li-Ion battery)
10706 All ri-charger® L 3.5 V / 100-240 V, white with wall bracket, with US adapter (for ri-accu® L rechargeable Li-Ion battery)
10707 EU Plug-in charger for rechargeable Li-Ion battery 3.5 V ri-accu® L [10694] for C type battery handle, EU plug w/o battery
10708 All Plug-in charger with rechargeable Li-Ion battery 3.5 V ri-accu® L [10694] for C type battery handle, EU plug
10710 EU Wall support ri-charger®, with screws and plugs
10711 EU Handle AA type reduction insert for ri-charger®
12446 EU Handle AA type reduction insert for ri-charger® L
10712 EU Ear specula compartment cover for ri-charger®
10713 EU Ear specula compartment cover for ri-charger® L
Batteries
ART. NO. REGION DESCRIPTION
10690 All ri-accu® L rechargeable Li-Ion battery type AA 3.5 V for AA-type battery handle and ri-charger® L
10691 All ri-accu® L rechargeable Li-Ion battery type C 3.5 V for C-type battery handle and ri-charger® L
10694 All ri-accu® L rechargeable Li-Ion battery (plug in handle) type C 3.5 V for C type battery handle
10680 All ri-accu® rechargeable NIMH battery type AA 2.5 V for AA-type battery handles
10681 All ri-accu® rechargeable NIMH battery type C 2.5 V for C type battery handles
10682 EU ri-accu® rechargeable NIMH battery type C 3.5 V for C type battery handles
10685 EU Alkaline battery type AA 1.5 V, pack of 4 pcs.
10686 EU Alkaline battery type C 1.5 V, pack of 2 pcs.
Bulb
ART. NO. REGION DESCRIPTION
10607 All XL 3.5 V bulb for ri-scope® L2/L3 Otoscope, ri-derma, light conductor, nasal speculum and tongue blade holder.
10600 All XL 2.5 V bulbs for ri-scope® L2/L3 Otoscope, light conductor, nasal speculum and tongue blade holder, pack of 6 pcs.
10625 All LED 3.5 V bulb for ri-scope® L2/L3 Otoscope, ri-derma, light conductor, nasal speculum and tongue blade holder.
Accessories
ART. NO. REGION DESCRIPTION
10921 EU Case for ri-scope® de luxe and praktikant, black
