e-scope® Pocket Ophthalmoscope

The e-scope® pocket ophthalmoscope is lightweight, economical and has a perfect size and weight for you to carry in your pocket all day. The ophthalmoscope has AA size handles for use with alkaline batteries (sold separately), a pen clip to easily keep it in place, and LED or Xenon illumination. The instrument comes in a hook and loop closure case or in an impact-resistant case. Riester’s ophthalmoscopes utilize a Dioptre disc with 18 corrective lenses (+/- 1, 2, 3, 4, 6, 8, 10, 15, 20 dioptres) as well as easy-to-use aperture wheel with six different apertures (fixation star, large circle, small circle, red free filter,blue filter, semi circle).

Table Of Contents

Pocket ophthalmoscope with high performance optics

e-scope® pocket ophthalmoscope details

  1. 3.7 V LED, 2.5 V xenon or vacuum illumination
  2. Dioptre display
  3. Dioptre adjustment wheel
  4. Aperture wheel
  5. Spectacle protection
  6. Dust-protected casing
  7. On/off switch
  8. Battery compartment and ABS synthetic material casing
e-scope-ophthalmoscope-details-700x-q80

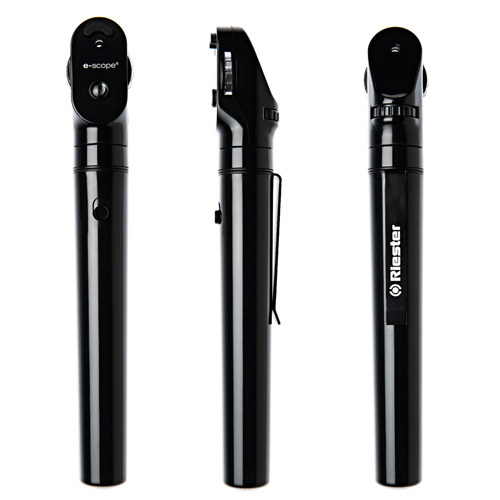

The e-scope pocket ophthalmoscope, sets and accessories

Riester e-scope ophtalmoscope web

e-scope® pocket ophthalmoscope black and white

Riester e-scope ophthalmoscope in pocket web

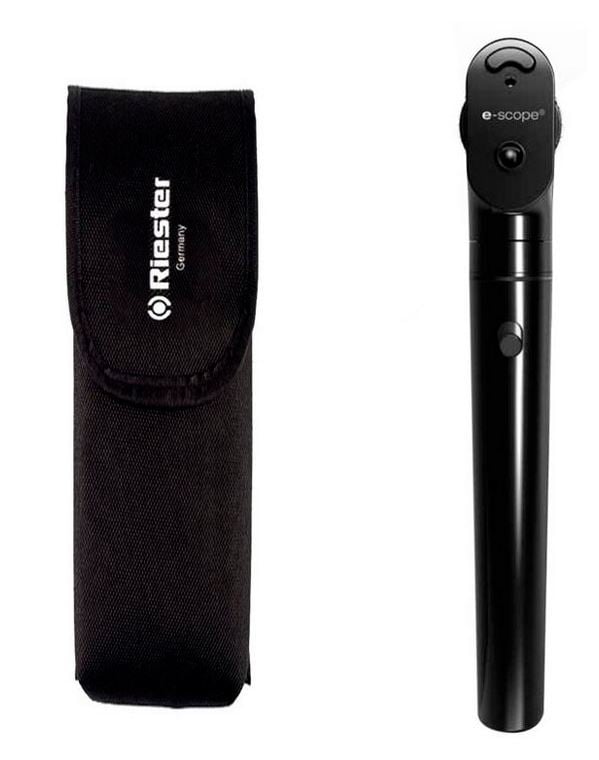

e-scope® pocket ophthalmoscope black in pouch.

Riester e-scope ophthalmoscope black in case web

e-scope® pocket ophthalmoscope black in case.

Riester e-scope ophthalmoscope white in case web

e-scope® pocket ophthalmoscope white in case.

Riester e-scope otoscope ophthalmoscope Black in case 01 web

e-scope® pocket ophthalmoscope and otoscope black, set in case.

Riester e-scope otoscope ophthalmoscope White in case 01 web

e-scope® pocket ophthalmoscope and otoscope white, set in case.

Features and benefits of e-scope® ophthalmoscope

  • Pocket size ophthalmoscope with pen clip
  • Dioptre disc with 18 corrective lenses (+/- 1, 2, 3, 4, 6, 8, 10, 15, 20 dioptres)

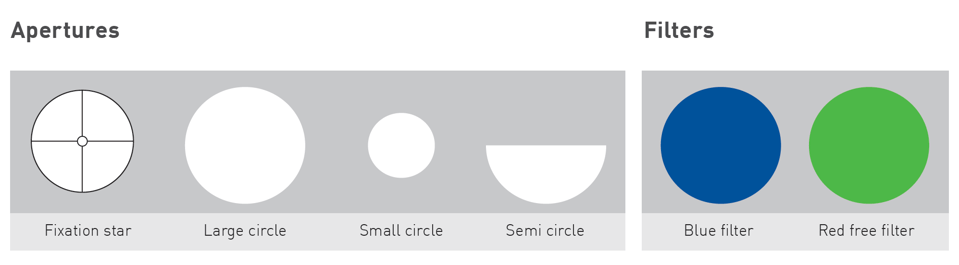

  • Easy-to-use aperture wheel with six different apertures (fixation star, large circle, small circle, red free filter, blue filter, semi circle)
    features-ophthalmoscope-1
  • High performance optics with aspherical condenser lens
  • Spectacle protection
  • Parallel optical path
  • Dust-protected
  • Runs on 2 AA batteries (sold separately)
  • Innovative 3.7 V LED illumination or 2.5 V Xenon illumination
  • Two year warranty

Product details

e-scope® pocket ophthalmoscope

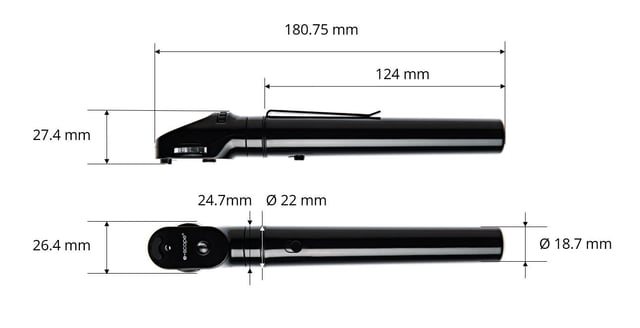

Dimension e-scope ophthalmoscope dimension
The lamp for e-scope® ophthalmoscope XL 2.5 V 750 mA, mean life span 16.5 h
LED 3.7 V 38 mA, mean life span 20,000 h
Battery 2 Alkaline AA 1.5V batteries.
Ambient temperature: 0° to +40° C
Relative Humidity: 30% to 70% noncondensing
Storage/ Transport Ambient temperature: -10° to +55°
Storage/ Transport relative Humidity: 10% to 95% noncondensing

Ordering information

e-scope® pocket ophthalmoscope

ART. NO. REGION DESCRIPTION
2120-200 EU e-scope® ophthalmoscope, Xenon 2.5 V, white, in pouch
2121-200 EU e-scope® ophthalmoscope, Xenon 2.5 V, black, in pouch
2122-201 All e-scope® ophthalmoscope XL 2.5 V, white, in case
2123-201 All e-scope® ophthalmoscope XL 2.5 V, black, in case
2122-203 All e-scope® ophthalmoscope LED 3.7 V, white, in case
2123-203 All e-scope® ophthalmoscope LED 3.7 V, black, in case

e-scope® Set

ART. NO. REGION DESCRIPTION
2130-200 EU e-scope® otoscope with direct illumination Vacuum 2.7 V / ophthalmoscope Xenon 2.5 V, white, in pouch
2131-200 EU e-scope® otoscope with direct illumination Vacuum 2.7 V / ophthalmoscope Xenon 2.5 V, black, in pouch
2130-202 All e-scope® F.O. otoscope/ ophthalmoscope XL 2.5 V, white, in case
2131-202 All e-scope® F.O. otoscope/ ophthalmoscope XL 2.5 V, black, in case
2130-203 All e-scope® F.O. otoscope / ophthalmoscope LED 3.7 V, white, in case
2131-203 All e-scope® F.O. otoscope / ophthalmoscope LED 3.7 V, black, in case

Spare parts and accessories

ART. NO. REGION DESCRIPTION
10775 All Reusable ear specula Ø 2.0 mm, pack of 10 pcs.
10779 All Reusable ear specula Ø 2.5 mm, pack of 10 pcs.
10783 All Reusable ear specula Ø 3.0 mm, pack of 10 pcs.
10789 All Reusable ear specula Ø 4.0 mm, pack of 10 pcs.
10795 All Reusable ear specula Ø 5.0 mm, pack of 10 pcs.
14061-531 EU Disposable specula Ø 2.5 mm, pack of 100 pcs.
14061-532 EU Disposable specula Ø 2.0 mm, pack of 100 pcs.
14061-533 EU Disposable specula Ø 3.0 mm, pack of 100 pcs.
14061-534 EU Disposable specula Ø 4.0 mm, pack of 100 pcs.
14061-535 EU Disposable specula Ø 5.0 mm, pack of 100 pcs.
14062-531 EU Disposable specula Ø 2.5 mm, pack of 500 pcs.
14062-532 EU Disposable specula Ø 2.0 mm, pack of 500 pcs.
14062-533 EU Disposable specula Ø 3.0 mm, pack of 500 pcs.
14062-534 EU Disposable specula Ø 4.0 mm, pack of 500 pcs.
14062-535 EU Disposable specula Ø 5.0 mm, pack of 500 pcs.
14063-531 EU Disposable specula Ø 2.5 mm, pack of 1000 pcs.
14063-532 EU Disposable specula Ø 2.0 mm, pack of 1000 pcs.
14063-533 EU Disposable specula Ø 3.0 mm, pack of 1000 pcs.
14063-534 EU Disposable specula Ø 4.0 mm, pack of 1000 pcs.
14063-535 EU Disposable specula Ø 5.0 mm, pack of 1000 pcs.
10605 All XL 2.5 V bulbs e-scope® ophthalmoscope, pack of 6 pcs.
14051 All LED 3.7 V spare bulb for e-scope® ophthalmoscope
14050 EU Vacuum 2.7 V bulbs, for e-scope® ophthalmoscope, pack of 6 pcs.
