sphygmotensiophone Sphygmomanometer

Extreme precision and refined functionality. Two-tube sphygmomanometer. The chromium-plated pressure gauge housing fits firmly on the cuff and is easily accessible.



The high-quality cotton cuff finished in artificial leather is provided with a metal clip through which to pull the cuff, this ensures safe and accurate measurement at all times.

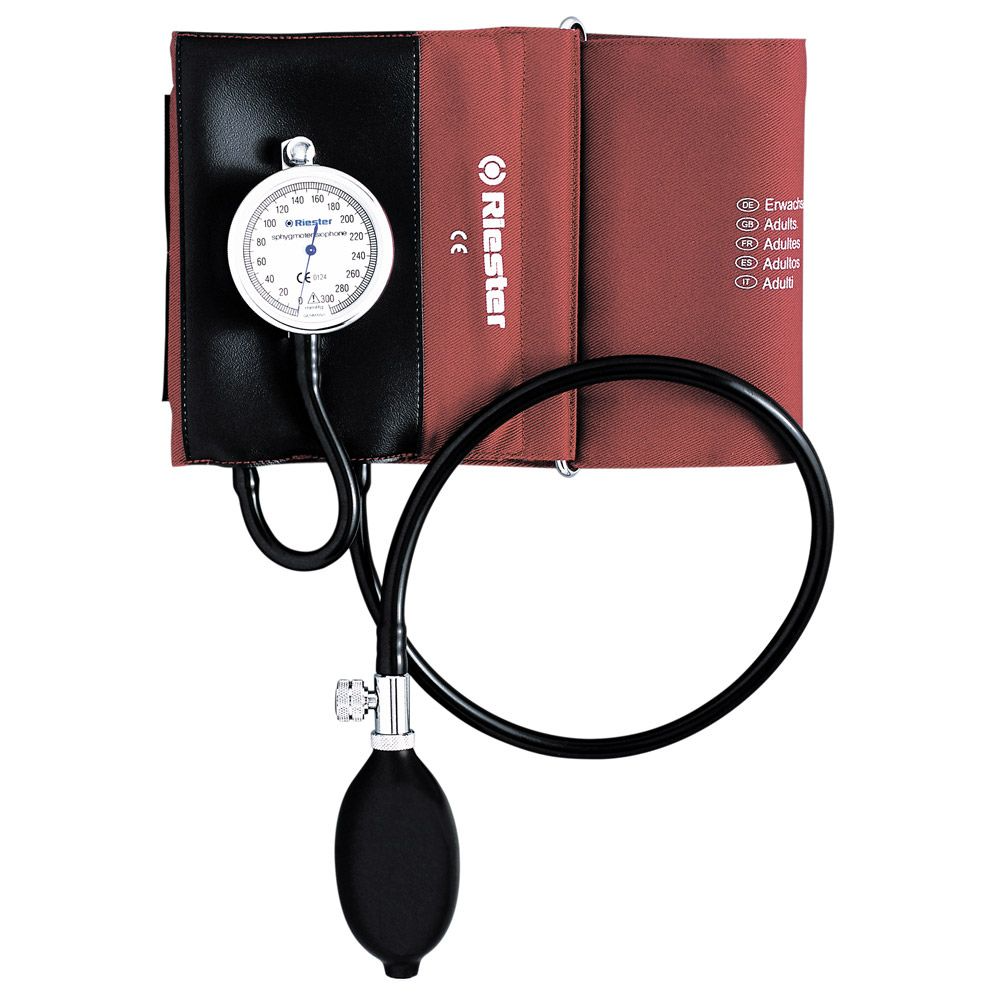

Riester Sphygmotensiophone 02 web

sphygmotensiophone Sphygmomanometer

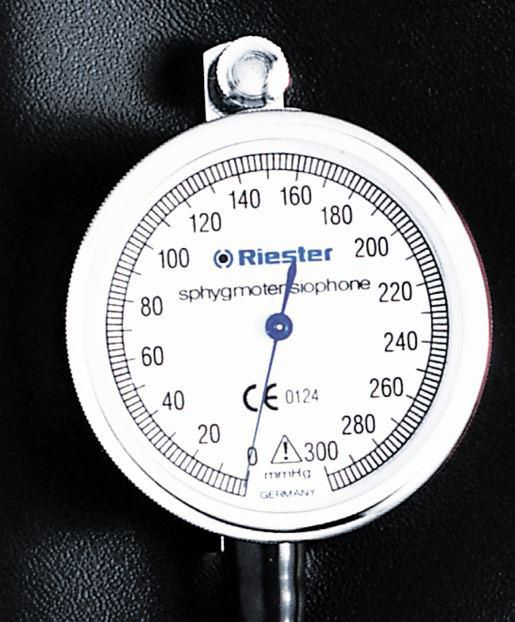

Riester Sphygmotensiophone web

sphygmotensiophone Sphygmomanometer manometer

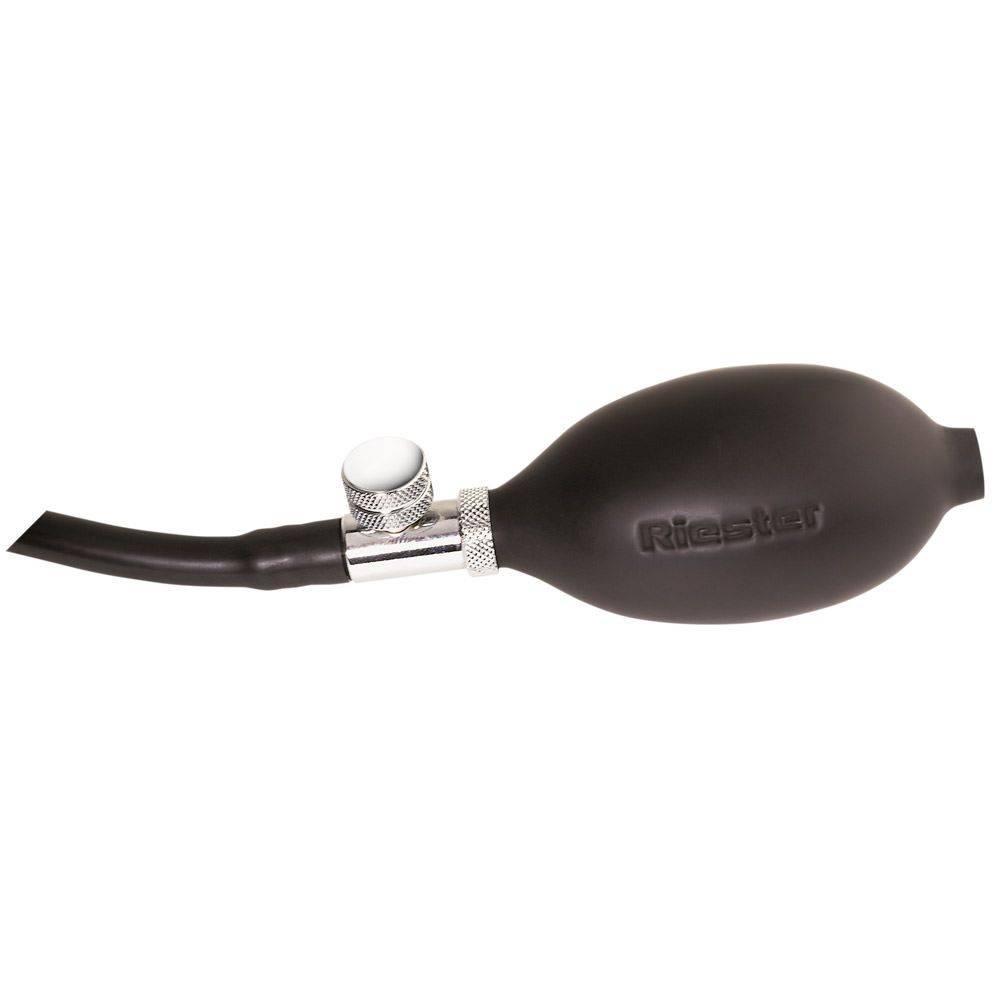

Riester Sphygmotensiophone detail bulb frontview web

sphygmotensiophone Sphygmomanometer bulb

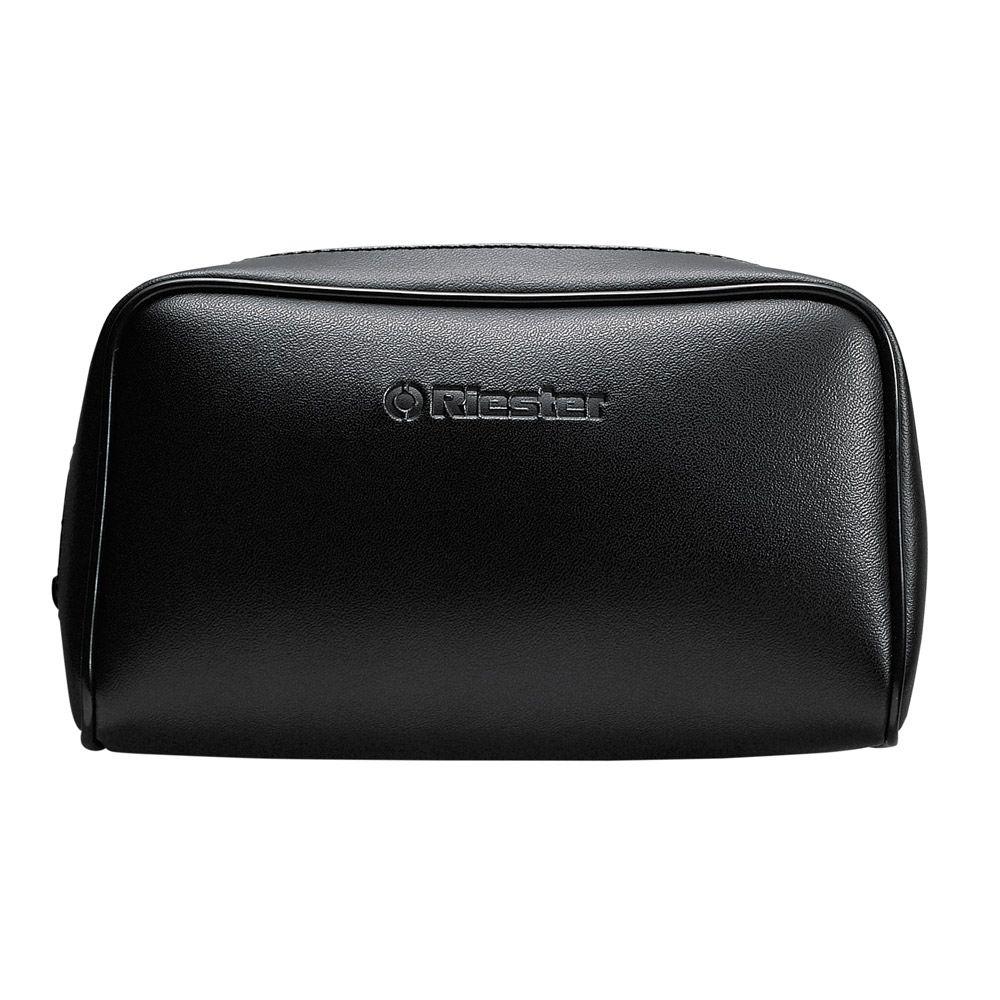

Riester Sphygmotensiophone case frontview web

vinyl zipper bag

Features and benefits

  • Precision air release valve with fine adjustment and virtually wear-free
  • Microfilter protects air release valve and measuring system
  • Maximum error tolerance of ±3 mmHg
  • Easy to read face with scale of Ø 49 mm from 0 to 300 mmHg
  • latex-free version available (please enter ‘LF’ when ordering for latex free version)
  • Includes vinyl zipper bag

Product details



Sphygmotensiophone
Dimension Riester Sphygmotensiophone-Dimension
Weight 161 g
Type Aneroid; two-tube
mercury-free; cuff-mounted
Options cuff-mounted gauge;
left or right-handed users
Cuff Velcro cuff finished in artificial leather
Accuracy ±3 mmHg
(±2 mmHg Riester inhouse standard)
Calibration Lifetime measuring technology;
No recalibration needed when used properly
Measurement conditions 10 °C to 40 °C
at 85% relative humidity
Microfilter Yes
Latex-free Optional



Two Piece Reusable Cuff Sphygmotensiophone
  Latex (Circumference / Range) Latex-free (Circumference / Range)
Infant 7.5 - 13 cm 7.5 - 13 cm
Child 13 - 20 cm 13 - 20 cm
Adult 24 - 32 cm 24 - 32 cm



Ordering information

sphygmotensiophon Sphygmomanometer

ART. NO. REGION DESCRIPTION
1380-100 All except US sphygmotensiophon manometer, 2-tube, w/o cuff
1381 All except US sphygmotensiophon, 2-tube, velcro cuff (children) pull through strap (D-ring)
1380 All except US sphygmotensiophon, 2-tube, velcro cuff (adult) pull through strap (D-ring)

Accessories

ART. NO. REGION DESCRIPTION
136 All except US Velcro cuff (adult) pull through strap (D-ring) 52 x 14.5 cm, 2-tubes, burgundy
137 All except US Velcro cuff (children) pull through strap (D-ring) 33 x 10 cm, 2-tubes, burgundy
10320 All Vinyl zipper case, black for aneroid sphygmomanometers
10330 All Padded nylon zipper case, black for aneroid sphygmomanometers
10351 All except US Inflation bulb, black, latex
10361 All except US Inflation bulb, black, latex-free
10373 All Tube connector (part II long), chrome plated
10374 All Tube connector (part I short), chrome plated
10363 All except US Air release valve, chrome plated
Latex free sphygmomanometers, automated BPMs and cuffs

precisa® N shock proof, R1 shock-proof®, e-mega® and ri-san® sphygmomanometers and automated BPM‘s are now latex free. Other sphygmomanometers may be ordered latex-free by prefixing „LF“ in front of the article number.

Example:
No. LF1312 = minimus® II with velcro cuff, latex free version i.e. both the bladder in the cuff as well as the inflation bulb contain no latex.

Disinfectable one piece cuffs

Riester sphygmomanometers may be ordered with one piece cuffs w/o additional charge by simply adding the article number of the corresponding cuff.

Example:
No. 1360-150 precisa® N plastic/metal, adult size, 1-tube
