minimus® II Sphygmomanometer

The Riester minimus® II features a chromium-plated screwed tube connector and the ergonomic spoon-shaped grip, ensuring that the minimus® II can be operated without hindrance, at any time.

The Riester minimus® II is a high-quality, corrosion resistant, portable aneroid sphygmomanometer. Rugged, single tube version that is easy to use.

Image gallery

riester-minimus-ii-frontview-photo-x1000

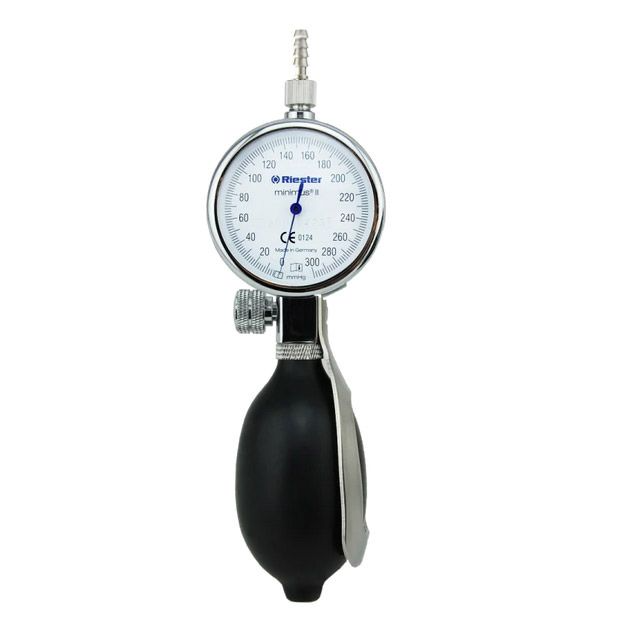

minimus® II Sphygmomanometer

riester-minimus-ii-frontview-photo-copy-x1000

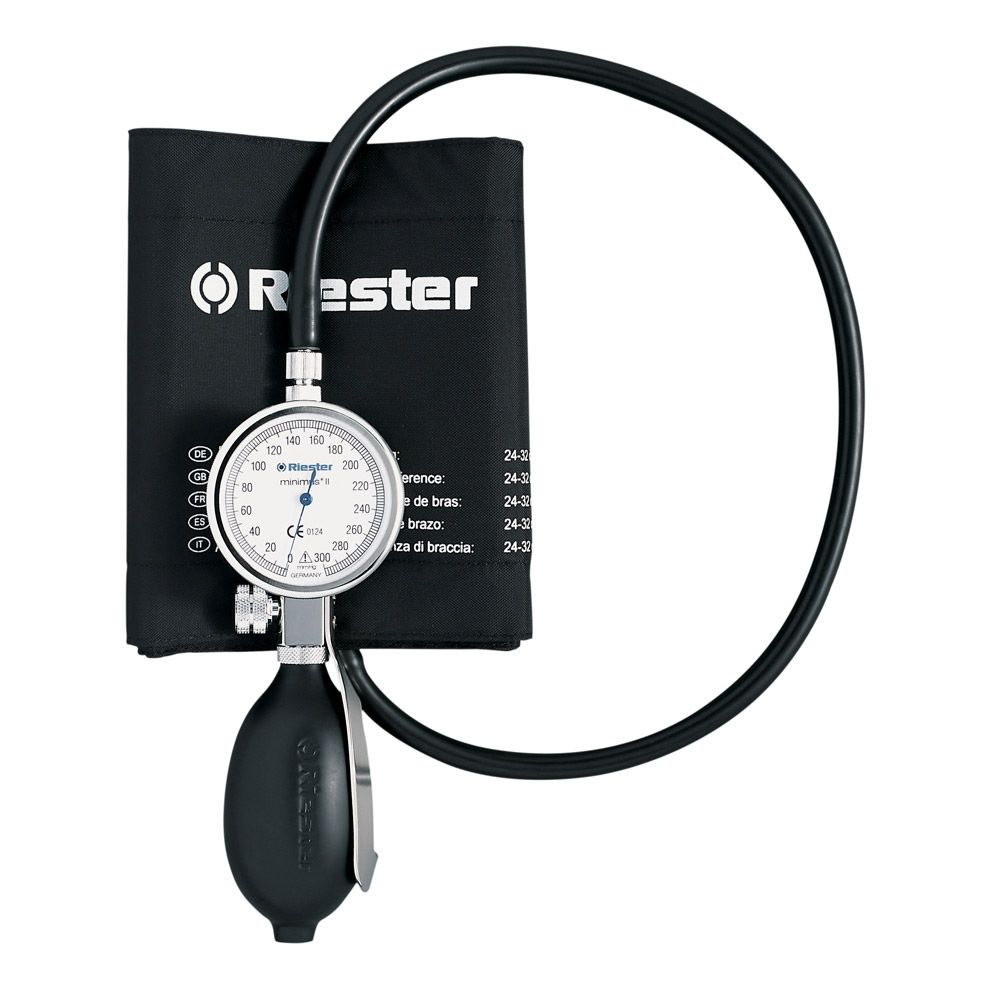

minimus® II Sphygmomanometer with cuff

riester-minimus-ii-case-frontview-photo-x1000

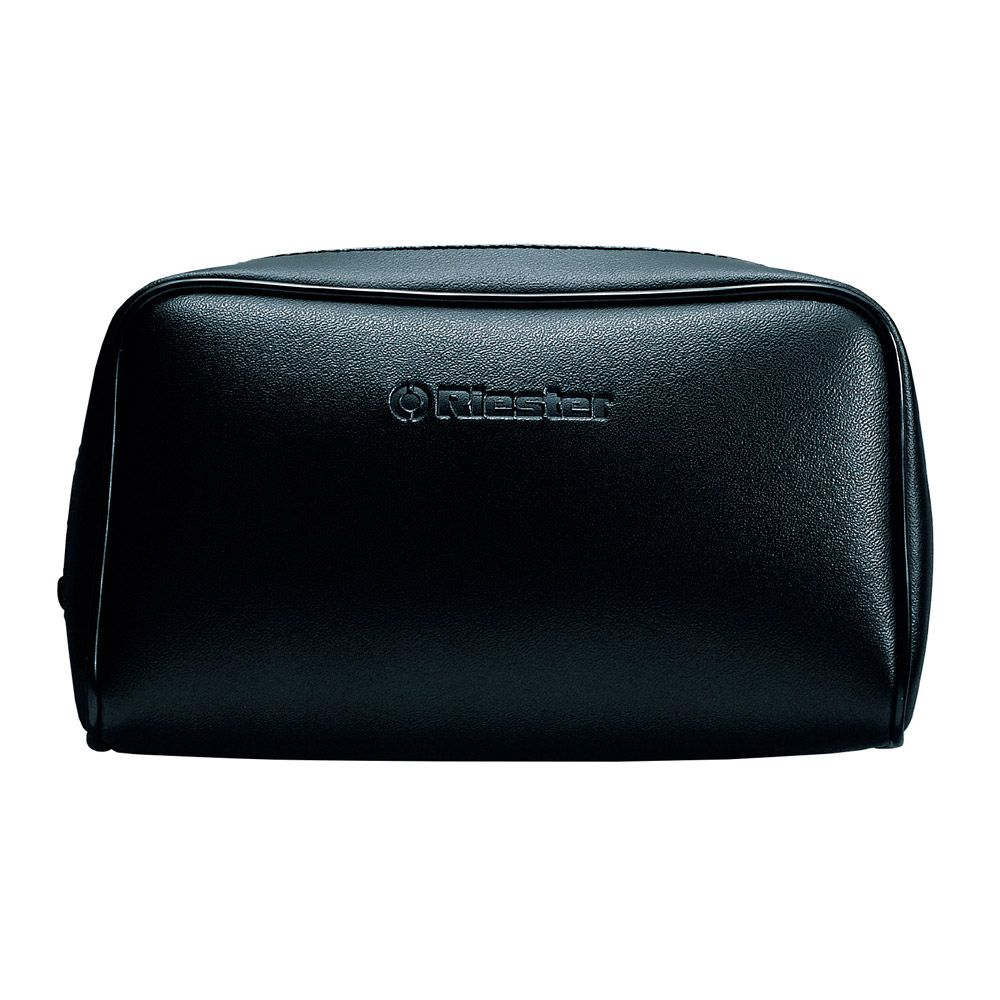

Vinyl zipper case

Features and benefits for both the clinician and patient

  • Compact, single-tube, graduated-scale sphygmomanometer
  • Highly polished chromium-plated, rugged metal housing with metal ring and corrosion-protected
  • Latex bulb with chromium-plated air release valve
  • Metal valve base
  • Precision air release valve with fine adjustment and virtually wear-free
  • Microfilter protects air release valve and measuring system
  • Spoon-shaped grip of stainless steel
  • Metal connector for simple and fast changes of cuffs
  • Maximum error tolerance of ±3 mmHg
  • Linear aluminium scale Ø 49 mm, easily legible up to 300 mmHg
  • Including vinyl zipper case
  • Comprehensive selection of different sized cuffs
  • Approved by the BIHS validation, see bhsoc.org/bp-monitors/bp-monit

Product details


Type Aneroid; one-tube or two-tube
mercury-free; cuff-mounted; metal ring
BIHS Validation BIHS International Protocol
Dimension 41.87mm x 176.85mm
Options cuff-mounted gauge;
left or right-handed users
Accuracy ±3 mmHg
(±2 mmHg Riester inhouse standard)
Calibration Lifetime measuring technology;
No recalibration needed when used properly
Measurement conditions 10° C to 40° C
at 85% relative humidity
Microfilter Yes
Shock-proof Yes

Ordering information

ART. NO REGION DESCRIPTION
1310 EU minimus® II, bandage cuff (adult)
1311 EU minimus® II, hook cuff (adult)
1312 EU minimus® II, velcro cuff (adult)
1312-122 EU minimus® II, velcro cuff (large adult)
1312-129 EU minimus® II, velcro cuff (children)
1312-100 EU minimus® II manometer, w/o cuff

Accessories

ART. NO. REGION DESCRIPTION
10320 All Vinyl zipper case, black for aneroid sphygmomanometers
10330 All Padded nylon zipper case, black for aneroid sphygmomanometers
10351 EU Inflation bulb, black, latex
10361 EU Inflation bulb, black, latex-free
10373 All Tube connector (part II long), chrome plated
10374 All Tube connector (part I short), chrome plated

Latex free sphygmomanometers, automated BPMs and cuffs

R1 shock-proof, e-mega and ri-san sphygmomanometers and automated BPM‘s are now latex free. Other sphygmomanometers may be ordered latex-free by prefixing „LF“ in front of the article number.

Example:
No. LF1312 = minimus® II with velcro cuff, latex free version i.e. both the bladder in the cuff as well as the inflation bulb contain no latex

Disinfectable one piece cuffs

Riester sphygmomanometers may be ordered with one piece cuffs w/o additional charge by simply adding the article number of the corresponding cuff (page 14).

Example:
No. 1360-150 precisa® N plastic/metal, adult size, 1-tube
